MAX4714

PRODUCTION

0.8-Ohm, Low-Voltage, Single-Supply SPDT Analog Switch in SC70

Analog Devices MAX4714 Product Info

10 February 2026 4

Features

Low R_ON
- 0.8Ω max (+3V Supply)
- 2.5Ω max (+1.8V Supply)
0.18Ω max R_ON Flatness (+3V Supply)
+1.6V to +3.6V Single-Supply Operation
Available in 6-Pin µDFN (1.5mm x 1mm) and SC70 Packages
Fast Switching: t_ON = 18ns max, t_OFF = 12ns max
1.8V CMOS Logic Compatible (+3V Supply)
Pin Compatible with MAX4599
Guaranteed Break-Before-Make

Part details & applications

The MAX4714 is a low on-resistance, low-voltage single-pole/double-throw (SPDT) analog switch that operates from a single +1.6V to +3.6V supply. The MAX4714 has break-before-make switching. This device also has fast switching speeds (t_ON = 18ns max, t_OFF = 12ns max).

When powered from a +3V supply, the MAX4714 features 0.8Ω max on-resistance (R_ON), with 0.18Ω max R_ON matching and flatness. The digital logic input is 1.8V CMOS compatible when using a single +3V supply.

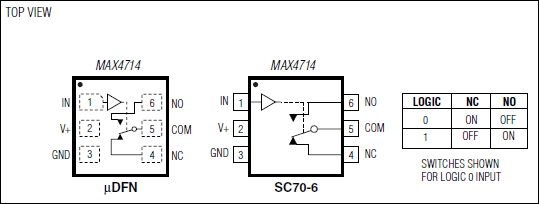

The MAX4714 is pin compatible with the MAX4599 and is available in a 6-pin SC70 or µDFN package.

Applications

Audio/Video Signal Routing
Battery-Operated Equipment
Cell Phones
Communications Circuits
Hard Drives
Low-Voltage Data-Acquisition Systems
Modems
PCMCIA Cards
Power Routing
