Analog Devices AD5680 Product Info

• Single 18-bit nanoDAC
• 18-bit monotonic
• 12-bit accuracy guaranteed

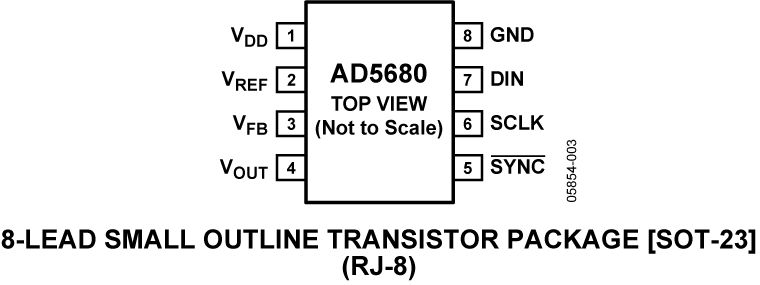

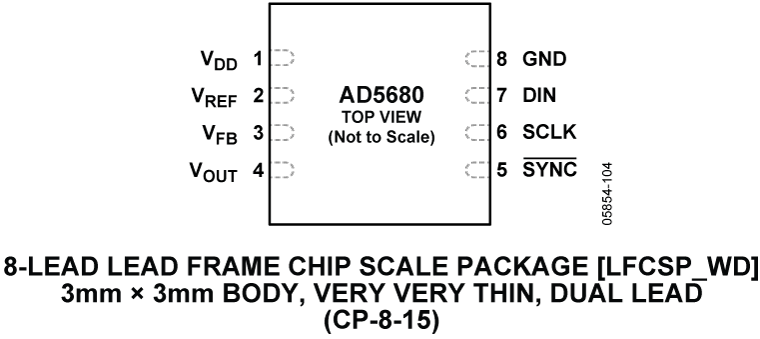

• Tiny 8-lead SOT-23 package
• Power-on reset to zero scale/midscale
• 4.5 V to 5.5 V power supply
• Serial interface
• Rail-to-rail operation
• SYNC interrupt facility
• Temperature range: −40°C to +105°C

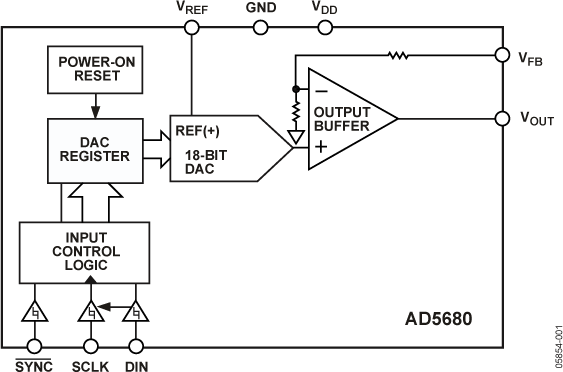

The AD5680, a member of the nanoDAC family, is a single, 18-bit buffered voltage-out digital-to-analog converter (DAC) that operates from a single 4.5 V to 5.5 V supply and is 18-bit monotonic.

The AD5680 requires an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V (AD5680-1) or to midscale (AD5680-2) and remains there until a valid write takes place.

The low power consumption of this part in normal operation makes it ideally suited to portable battery-operated equipment. The power consumption is 1.6 mW at 5 V.

The AD5680 on-chip precision output amplifier allows rail-to-rail output swing to be achieved. For remote sensing applications, the output amplifier’s inverting input is available to the user.

The AD5680 uses a versatile 3-wire serial interface that operates at clock rates up to 30 MHz, and is compatible with standard SPI^®, QSPI^™, MICROWIRE^™, and DSP interface standards.

Applications

• Closed-loop process control
• Low bandwidth data acquisition systems
• Portable battery-powered instruments
• Gain and offset adjustment
• Precision setpoint control
