MAX4525L

PRODUCTION

Low-Voltage, Single-Supply Analog Multiplexers/Switches

Analog Devices MAX4525L Product Info

10 February 2026 6

Features

+3V Logic-Compatible Inputs (V_IH = 2.0V, V_IL = 0.8V)
+2V to +12V Supply Operation
100Ω On-Resistance with +12V Supply
Guaranteed 10Ω On-Resistance Match at +12V
Guaranteed 2nA Maximum Off-Leakage at +12V
TTL/CMOS-Logic Compatible
Tiny 10-Pin TDFN (3mm × 3mm) and 10-Pin µMAX Packages

Part details & applications

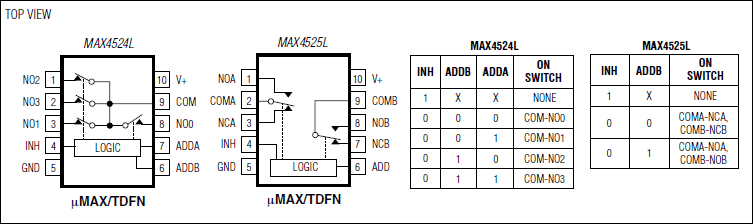

The MAX4524L/MAX4525L are low-voltage, single-supply CMOS analog switches configured as a 4-channel multiplexer/demultiplexer (MAX4524L) and a double-pole/double-throw (DPDT) switch (MAX4525L). The MAX4524L/MAX4525L have an inhibit input to simultaneously open all switches.

These devices operate from a single supply of +2V to +12V. They are optimized for operation with a +12V supply. The on-resistance is 100Ω with a +12V supply. Each switch can handle Rail-to-Rail analog signals. Off-leakage current measures only 2nA at +25°C. All digital inputs have 0.8V to 2.0V logic thresholds to ensure TTL/CMOSlogic compatibility when using a +12V supply.

Applications

Audio/Video Signal Routing
Communications Circuits
Data Acquisition Systems
DSL Modems
