Analog Devices LT8410 Product Info

• Ultralow Quiescent Current
• 8.5μA in Active Mode
• 0μA in Shutdown Mode
• Comparator Built into SHDN pin
• Low Noise Control Scheme
• Adjustable FB reference voltage
• Wide Input Range: 2.5V to 16V
• Wide Output Range: Up to 40V
• Integrated Power NPN Switch
• 25mA Current Limit (LT8410)
• 8mA Current Limit (LT8410-1)
• Integrated Schottky Diode
• Integrated Output Disconnect
• High Value (12.4M/0.4M) Feedback Resistors Integrated
• Built in Soft-Start (Optional Capacitor from V_REF to GND)
• Overvoltage Protection for CAP and V_OUT pins

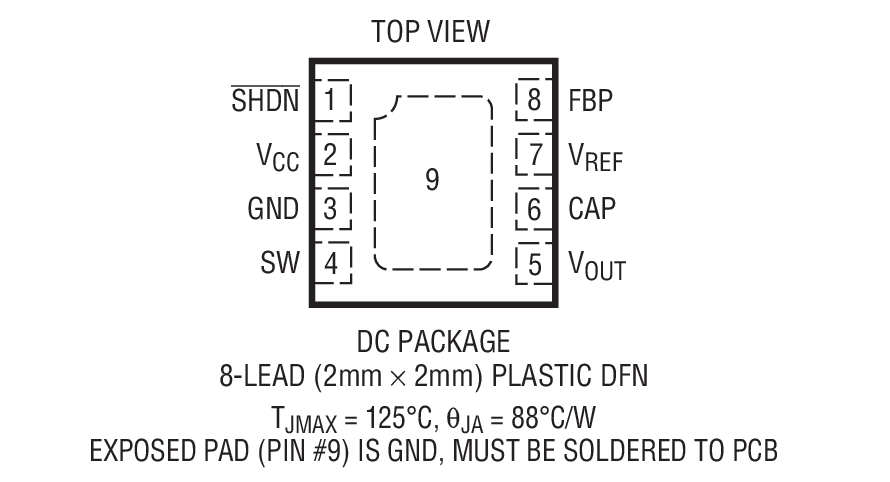

• Tiny 8-Pin 2mm × 2mm DFN package

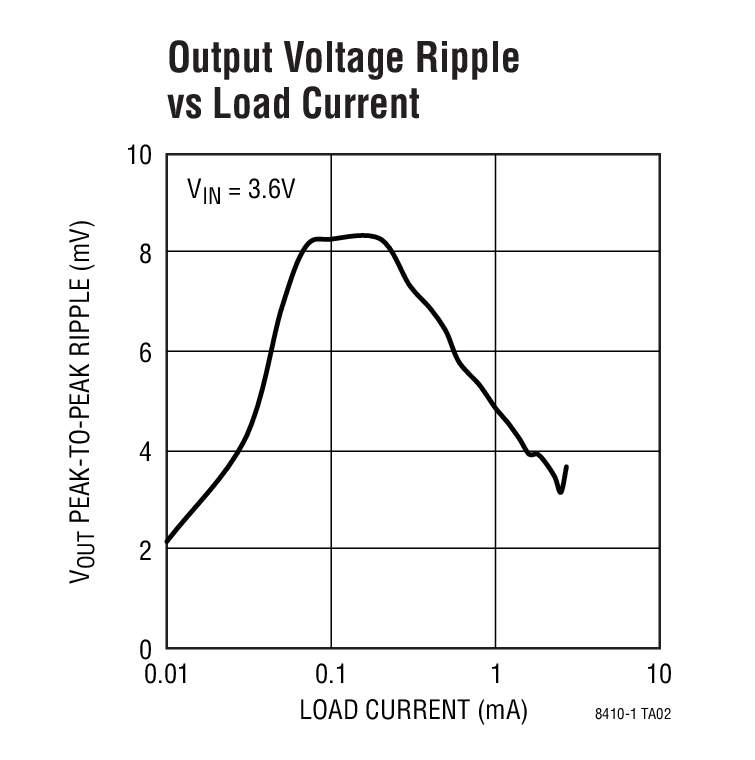

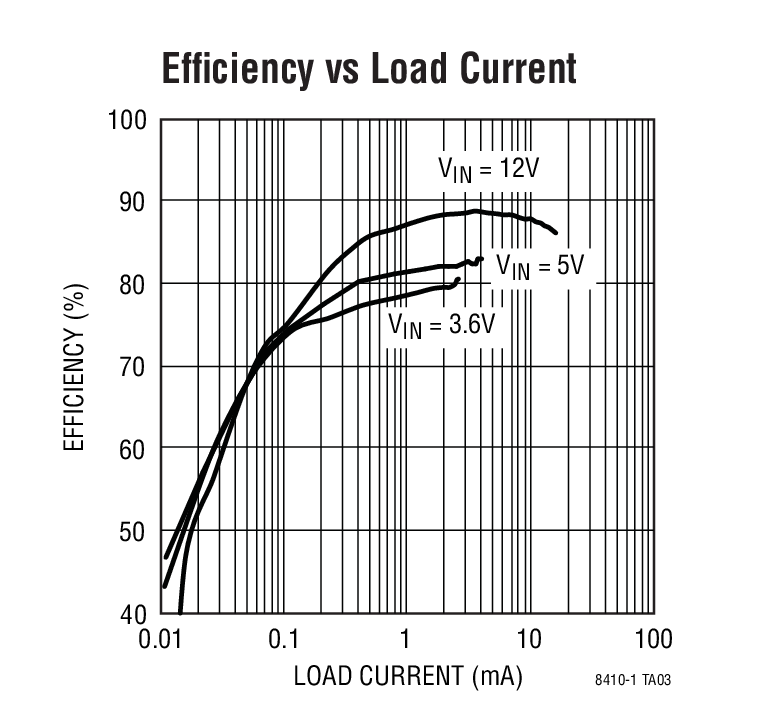

The LT8410/LT8410-1 are ultralow power boost converters with integrated power switch, Schottky diode and output disconnect circuitry. The parts control power delivery by varying both the peak inductor current and switch off-time. This control scheme results in low output voltage ripple as well as high efficiency over a wide load range. The quiescent current is a low 8.5μA, which is further reduced to 0μA in shutdown. The internal disconnect circuitry allows the output voltage to be blocked from the input during shutdown. High value (12.4M/0.4M) resistors are integrated on chip for output voltage detection, significantly reducing input referred quiescent current.  The LT8410/LT8410-1 also features a comparator built into the SHDN pin, over voltage protection for the CAP and V_OUT pins, built in soft-start and comes in a tiny 8-pin 2mm × 2mm DFN package.

Applications

• Sensor Power
• RF Mems Relay Power

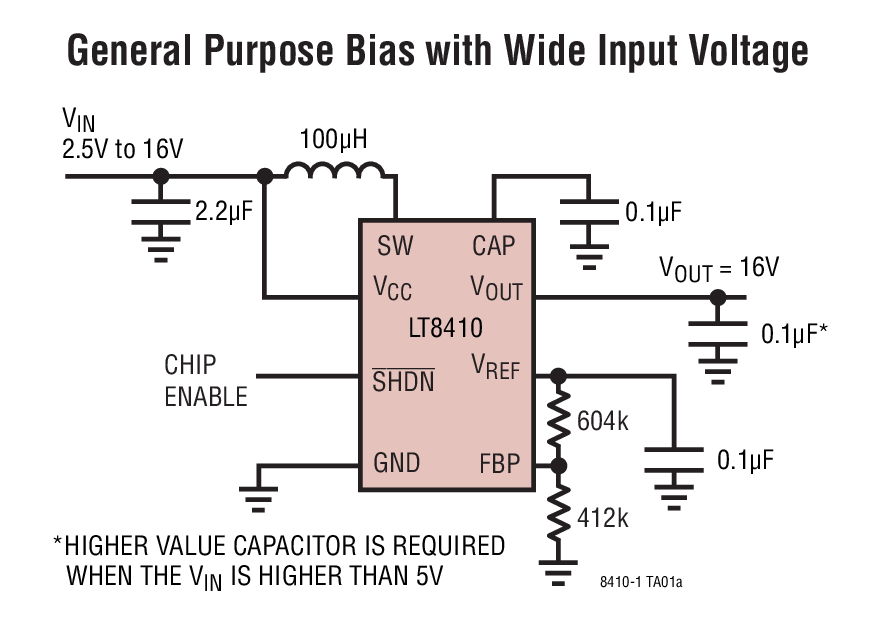

• General Purpose Bias
