Analog Devices MAX4504 Product Info

• Available in SOT23-5 Package
• Dual-Supply Operation from ±1V to ±6V
• Guaranteed On-Resistance:
  • 250Ω with ±5V Supplies
• Guaranteed Low Off-Leakage Currents:
  • 1nA at +25°C
  • 10nA at +85°C
• Guaranteed Low On-Leakage Currents:
  • 2nA at +25°C
  • 20nA at +85°C
• Guaranteed Low Charge Injection: 10pC Max
• Fast Switching Speed: t_ON = 150ns, t_OFF = 100ns
• CMOS-Logic Compatible Input

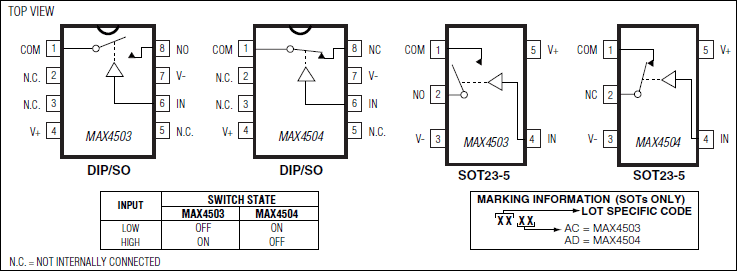

The MAX4503/MAX4504 are low-voltage, dual-supply, single-pole/single-throw (SPST), CMOS analog switches. The MAX4503 is normally open (NO). The MAX4504 is normally closed (NC).

These CMOS switches can operate continuously with dual supplies between ±1.V and ±6V. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25°C or 10nA at +85°C.

The digital input is CMOS-logic compatible when using ±5V supplies. A unique logic input architecture allows this even though the parts have no ground pin.

For single-supply operation, use the MAX4501/MAX4502, which are pin-for-pin equivalents.

Applications

• Audio/Video Signal Routing
• Battery-Powered Applications
• Cell Phones
• Communication Systems
• Low-Voltage Data Acquisition
• Modems
• PCMCIA Cards
