ADV601LC

NOT RECOMMENDED FOR NEW DESIGNS

Ultra Low Cost Video Codec

Analog Devices ADV601LC Product Info

10 February 2026 5

Features

Features

100% Bitstream Compatible with the ADV601
Precise Compressed Bit Rate Control
Field Independent Compression
8-Bit Video Interface Supports CCIR-656 and Multiplexed Philips Formats
General Purpose 16- or 32-Bit Host Interface with 512 Deep 32-Bit FIFO

Performance

Real-Time Compression or Decompression of CCIR-601 to Video:
720 x 288 @ 50 Fields/Sec - PAL
720 x 288 @ 60 Fields/Sec - NTSC
Compression Ratios from Visually Loss-Less to 350:1
Visually Loss-Less Compression At 4:1 on Natural Images (Typical)

Part details & applications

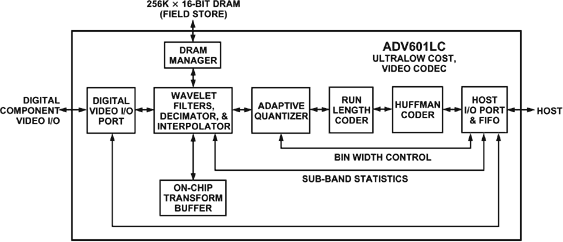

The ADV601 and the ADV601LC are very low cost, single chip, dedicated function, all digital CMOS VLSI devices capable of supporting visually loss-less to 350:1 real-time compression and decompression of CCIR-601 digital video at very high image quality levels. The ADV601 offers 10 bit per component performance and an dedicated DSP serial port in a 160 pin PQFP package. The ADV601LC offers 8 bit per component performance, no DSP serial port, and ultra-low cost in a tiny 120 pin TQFP package.

APPLICATIONS

PC Video Editing
Remote CCTV Surveillance
Digital Camcorders
Digital Video Tape
Wireless Video Systems
TV Instant Replay
