Analog Devices MAX14919A Product Info

• 5V or 7V to 60V Supply Voltage
• 800mA Load Current per OUT
• Integrated 5V/30mA Linear Regulator
• Logic Supply Input from 1.62V(min) to 5.5V(max)
• 5V to 48V Load Voltage Range
• Up to 500kHz Switching Rates
• 2x Inrush Load Current Option for 10ms
• Reduces Power and Heat Dissipation
  • 140mΩ (typ) On-Resistance per channel
  • 1.7mA (typ) Supply Current
  • Settable Load Current Limit
• Robust Design Features
  • Internal inductive Energy Clamp at 55V(typ)
  • Short-Circuit Protection
  • Reverse Current Detection against Load-Supply Miswiring
  • ±1kV/42Ω, 8μs/20µs Surge Protection
  • ±8kV Contact and ±25kV Airgap ESD Protection
  • -40°C to +125°C Operating Ambient Temperature
• Active-Low FAULT Indication for:
  • Thermal Overload
  • Reverse Load Current Detection
  • Undervoltage Lockout on V₅ Supply

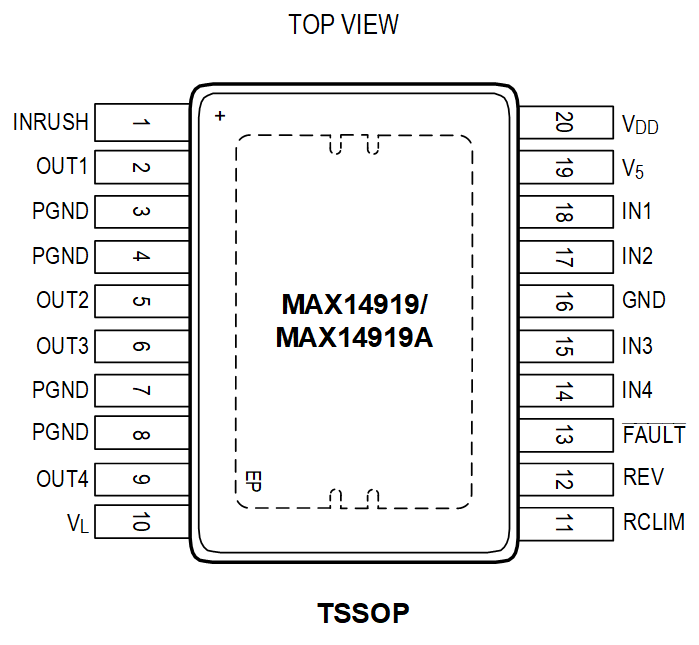

• Compact 20-pin, 6.5mm x 6.4mm TSSOP Package
• Compact 20-pin, 4mm x 5mm TQFN Package

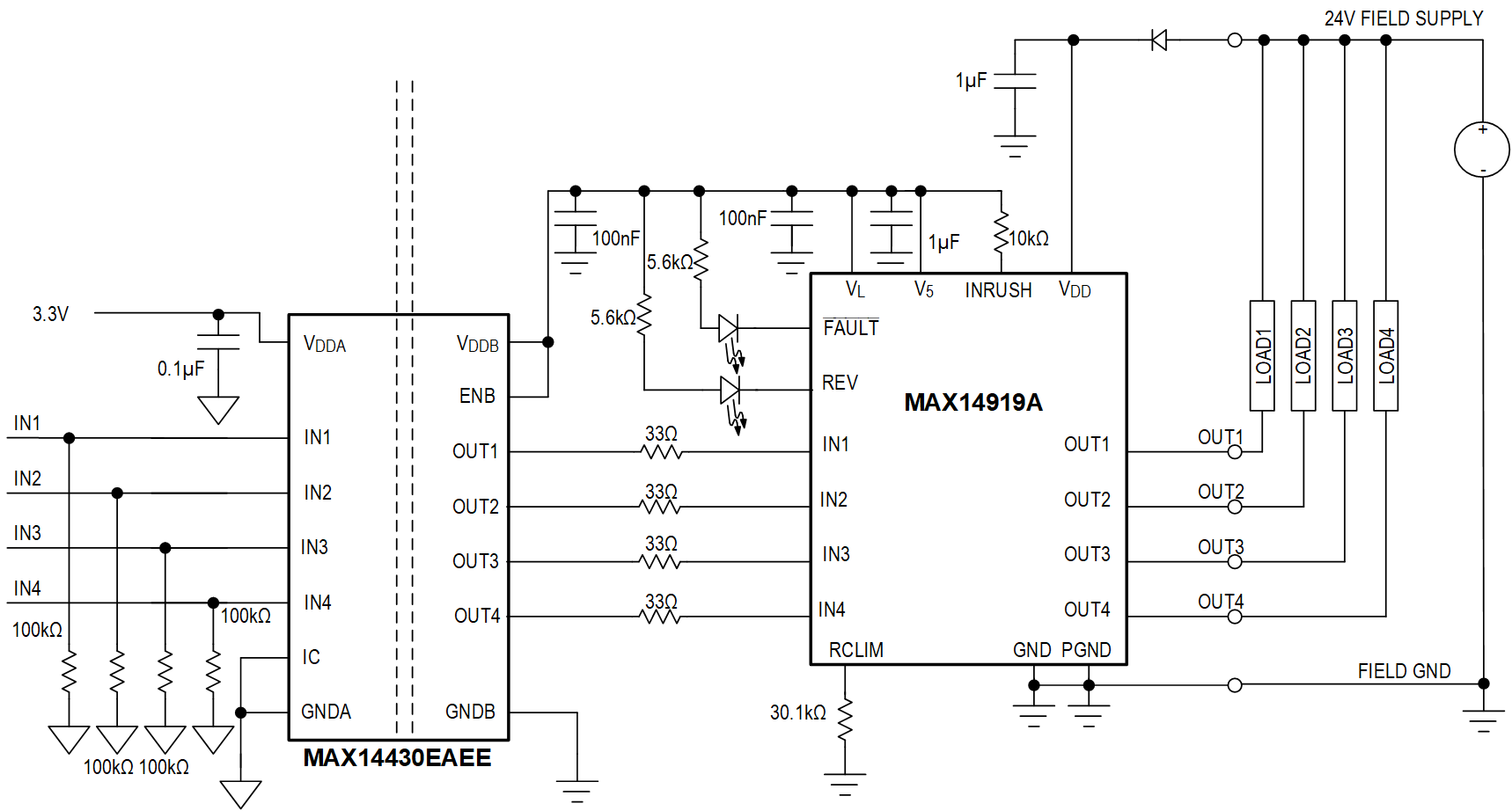

The MAX14919/MAX14919A industrial-protected quad-channel lowside switch features 140mΩ (typ) on-resistance (R_ON) per channel with integrated ±1kV/42Ω surge protection for robust operation.

Resistor-settable accurate current limiting provides guaranteed operating currents in the range of 100mA to 800mA. Loads that draw large activation or inrush currents are supported using the 2x inrush load-current option. The outputs can be connected in parallel to achieve higher load currents. The four switches are pin-controlled to allow for simple and fast switching of up to 500kHz.

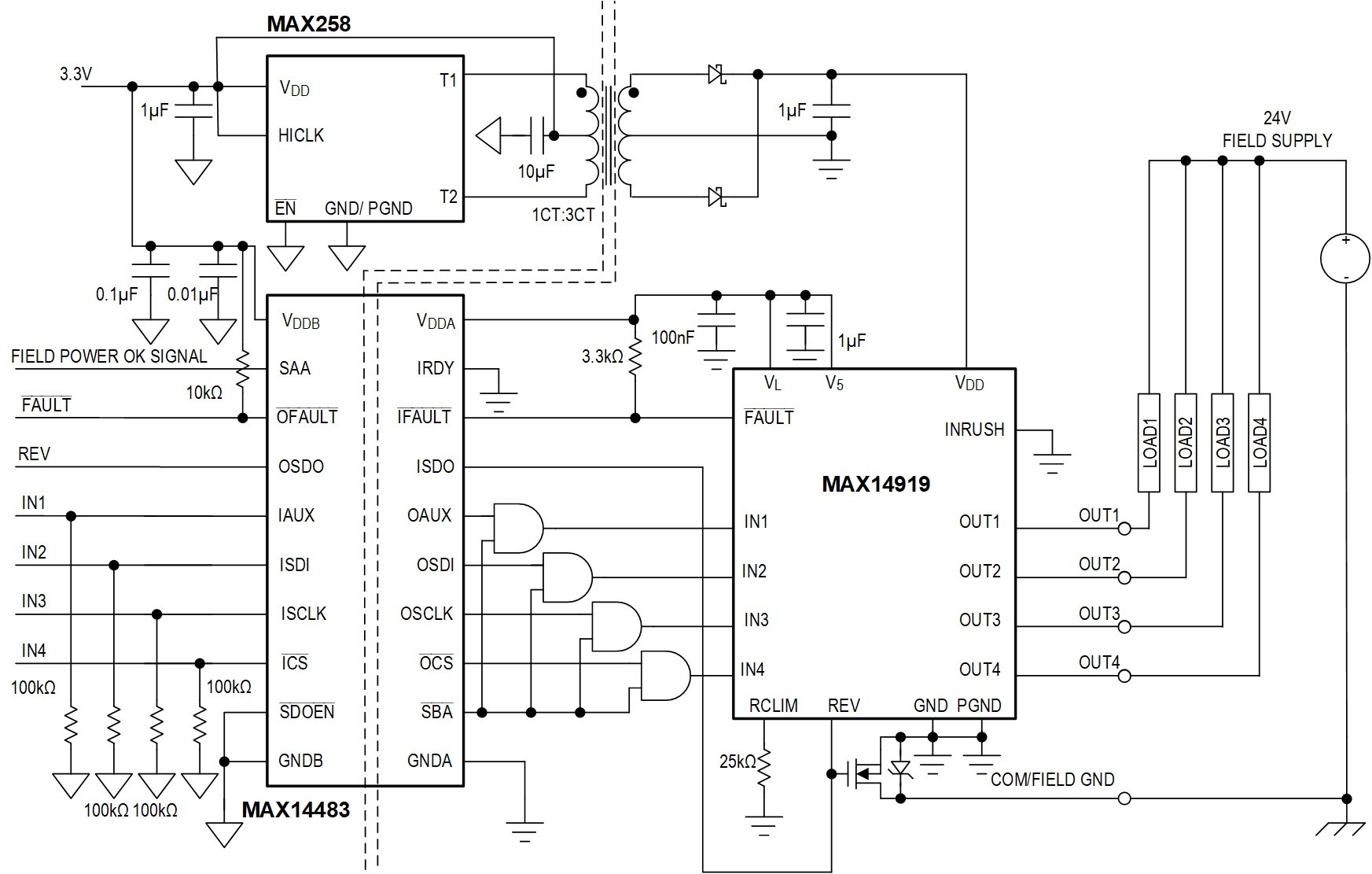

The MAX14919/MAX14919A features reverse current detection. The MAX14919 implements reverse-current protection by driving an external FET for non-capacitive loads. The MAX14919A has reverse current indication.

Inductive loads are turned off rapidly using the internal high-voltage clamps. The switches are short-circuit and overload protected.

The MAX14919/MAX14919A quad low-side switch is available in a 6.5mm x 6.4mm footprint, 20-TSSOP package and a 4mm x 5mm footprint 20-TQFN package specified over the -40°C to +125°C operating temperature range.

Applications

• Industrial Digital Outputs
• Relay and Solenoid Drivers
• PLC and DCS Systems
• Motor Control
