MAX1896

PRODUCTION

1.4MHz SOT23 Current-Mode Step-Up DC-DC Converter

Analog Devices MAX1896 Product Info

10 February 2026 7

Features

>90% Efficiency

Adjustable Output Up to 13V

Guaranteed 12V/120mA Output from 5V Input

2.6V to 5.5V Input Range

LT1613 Pin Compatible

0.01µA Shutdown Current

Programmable Soft-Start

Space-Saving 6-Pin SOT23 Package

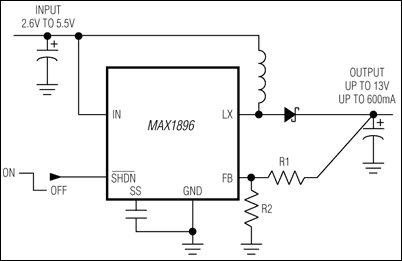

Part details & applications

The MAX1896 step-up DC-DC converter incorporates high-performance current-mode, fixed-frequency, pulse-width modulation (PWM) circuitry and an internal 0.7Ω N-channel MOSFET to provide a highly efficient regulator with fast response.

High switching frequency (1.4MHz) allows fast loop response and easy filtering with small components. The MAX1896 can produce an output voltage as high as 13V from an input as low as 2.6V. Soft-start is programmable with an external capacitor, which sets the input current ramp rate. In shutdown mode, current consumption is reduced to 0.01µA.

The MAX1896 is available in a space-saving 6-pin SOT23 package. The ultra-small package and high switching frequency allow cost and space-efficient implementations.

Applications

Handheld Devices
LCD Displays
Notebook Computers
PCMCIA Cards
Portable Applications
