Analog Devices MAXM17552 Product Info

• Easy to Use
  • Wide 4V to 60V Input
  • Adjustable 0.9V to 5.5V Output
  • ±1.75% Feedback-Voltage Accuracy
  • Up to 100mA Output Current
  • Internally Compensated
  • All Ceramic Capacitors
• High Efficiency
  • Fixed-Frequency PWM
  • Pulse Frequency Modulation (PFM) Mode to Enhance Light-Load Efficiency
  • Shutdown Current as Low as 1.2µA (typ)
• Flexible Design
  • Programmable Soft-Start and Prebias Startup
  • Open-Drain Power Good Output (Active Low RESET Pin)
  • Programmable EN/UVLO Threshold
• Rugged
  • Complies with CISPR22 (EN55022) Class B Conducted and Radiated Emissions.
  • Passes Drop, Shock, and Vibration Standards -JESD22–B103, B104, B111
• Robust Operation
  • Hiccup Overcurrent Protection
  • Overtemperature Protection
  • -40°C to +125°C Ambient OperatingTemperature/-40°C to +150°C Junction Temperature

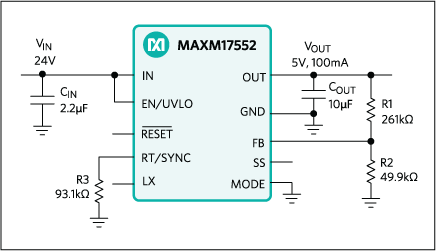

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler powersupply solutions. The MAXM17552 is a high-efficiency, synchronous, step-down DC-DC power module with integrated controller, MOSFETs, compensation components, and inductor that operates over a wide input-voltage range. The module operates from 4V to 60V input voltage and delivers up to 100mA output current over a programmable output voltage from 0.9V to 5.5V. The module significantly reduces design complexity, manufacturing risks and offers a true “plug and play” power supply solution, reducing the time-to-market.

The MAXM17552 employs peak-current-mode control architecture. To reduce input inrush current, the device offers a soft-start feature including the default soft-start time of 5.1ms.

The MAXM17552 is available in a low profile, compact 10-pin 2.6mm x 3mm x 1.5mm µSLIC™ package.

Applications

• 4mA–20mA Current-Loop Powered Sensors
• Battery-Powered Equipment
• HVAC and Building Control
• Industrial Sensors and Encoders
• LDO Replacement
