Analog Devices MAX17290 Product Info

• Reduces Solution Size and Cost
  • All-Ceramic Capacitor Solution Allows Ultra-Compact Solution Size
  • 100kHz to 1MHz (MAX17290) and 1MHz to 2.5MHz (MAX17292) Switching-Frequency with External Synchronization
• Increases Design Flexibility
  • Bootstrapped Mode Allows Input Voltage to be 2.5V
  • Adjustable Slope Compensation
• Reduces Power Dissipation
  • >90% Peak Efficiency
  • Low 4μA (typ.) Shutdown Current
• Operates Reliably
  • 42V Input Voltage Transient Protection
  • Fixed 9ms Internal Software Start Reduces Input Inrush Current
  • PGOOD Output and Hiccup Mode for Enhanced System Protection
  • Overtemperature Shutdown
  • Reduced EMI Emission with Spread-Spectrum Control

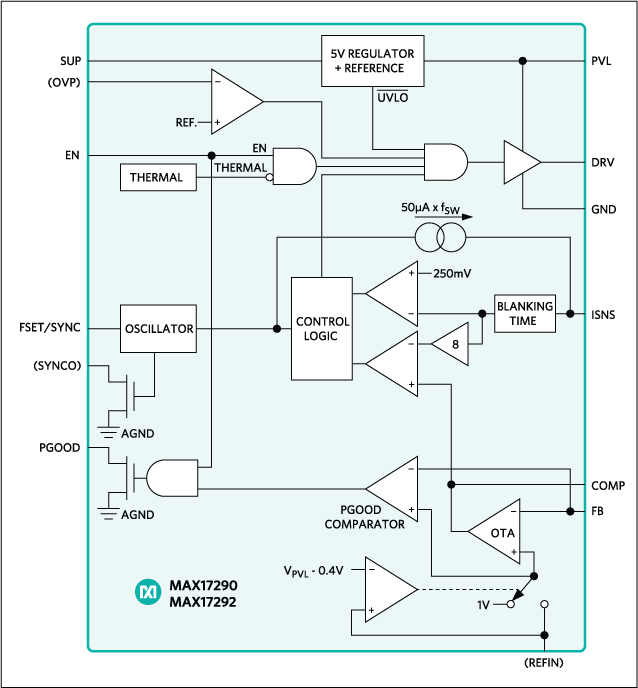

The MAX17290/MAX17292 high-efficiency, synchronous step-up DC-DC controllers operate over a 4.5V to 36V input voltage range with 42V input transient protection. The input operating range can be extended to as low as 2.5V in Bootstrapped mode.

The MAX17290 and MAX17292 use a constant-frequency, pulse-width modulating (PWM), peak current-mode control architecture. There are multiple versions of the devices offering one or more of the following functions: a synchronization output (SYNCO) for 180° out-of-phase operation, an overvoltage protection function using a separate input pin (OVP), and a reference input pin (REFIN) to allow on-the-fly output voltage adjustment.

The MAX17290 and MAX17292 operate in different frequency ranges. All versions can be synchronized to an external master clock using the FSET/SYNC input.

The devices are available in a compact 12-pin (3mm x 3mm) TQFN and 10-pin μMAX packages. Both packages have exposed pads. -40°C to +85°C Operation.

Applications

• Distributed Supply Regulation
• General-Purpose Point-of-Load
• Offline Power Supplies
• Telecom Hardware
