Analog Devices ADH987S Product Info

The ADH987S 1-to-9 fanout buffer is designed for low noise clock distribution. It is intended to generate relatively square wave outputs with fast rise / fall times. The low skew outputs of the ADH987S, combined with its fast rise / fall times, leads to controllable low-noise switching of downstream circuits such as mixers, ADCs / DACs or SERDES devices. The noise floor is particularly important in these applications, when the clock network bandwidth is wide enough to allow squarewave switching. Driven at 2 GHz, outputs of the ADH987S have a noise floor of -155 dBc/Hz for ADH897R701G32 and -166 dBc/Hz for HMC8626LP5E.

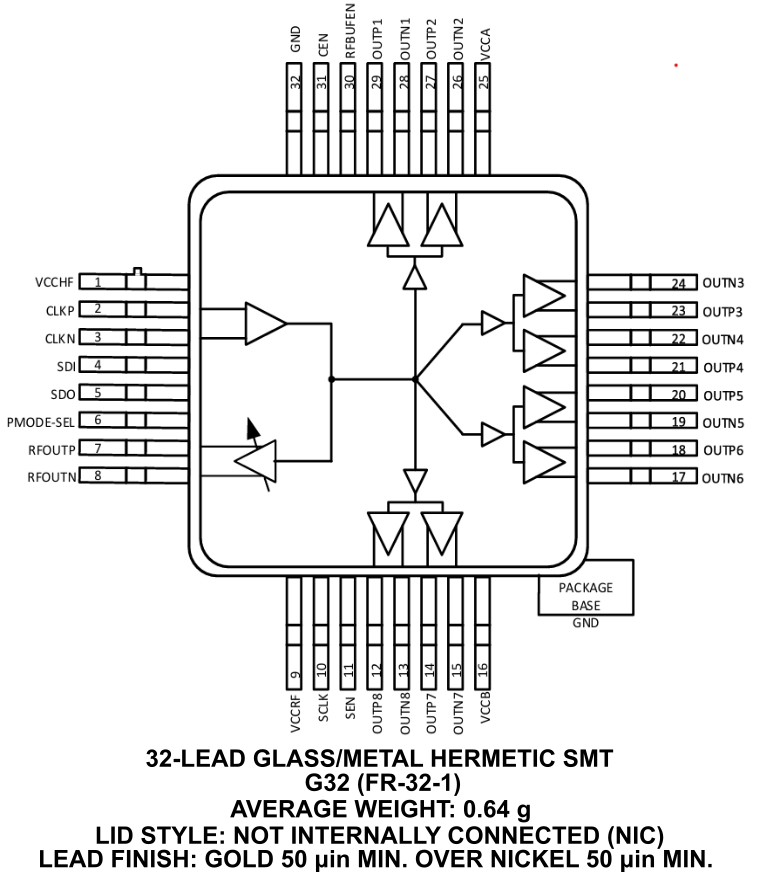

The input stage can be driven single-ended or differentially, in a variety of signal formats (CML, LVDS, LVPECL or CMOS), AC or DC coupled. The input stage also features adjustable input impedance. It has 8 LVPECL outputs, and 1 CML output with adjustable swing/power-level in 3 dB steps.

Individual output stages may be enabled or disabled for power-savings when not required using either hardware control pins, or under control of a serial-port interface.

Applications

• RF and Microwave
• Clock Distribution
• Clock Fanout
• LO Distribution
• Space & Military
