Analog Devices MAX14509AE Product Info

• Single +2.7V to +5.0V Supply Voltage
• Low 12µA Supply Current
• -3dB Bandwidth: 950MHz (typ)
• Low 2.5Ω (typ) On-Resistance
• Low 20mΩ (typ) R_ON Flatness
• THD+N: 0.05%
• COM Analog Inputs Fault Protected Against Shorts to +5.5V (MAX14508E/MAX14509E/MAX14510E/MAX14511E)
• Internal Shunt Resistors for Click-and-Pop Reduction (MAX14508E/MAX14510E)
• VBUS Detection for Automatic Switch Path Selection (MAX14510E/MAX14511E)
• Space-Saving Package: 10-Pin, 1.4mm x 1.8mm UTQFN

The MAX14508E—MAX14511E/MAX14509AE high-ESD-protected DPDT switches multiplex Hi-Speed (480Mbps) USB and analog signals such as AC-coupled audio or video. These devices combine the low on-capacitance (C_ON) and low on-resistance (R_ON) necessary for high-performance switching applications in portable electronics, and include an internal negative supply to pass audio signals that swing below ground (down to V_CC - 5.0V). The MAX14508E—MAX14511E/MAX14509AE also handle USB low-/full-speed signaling and operate from a +2.7V to +5.0V supply.

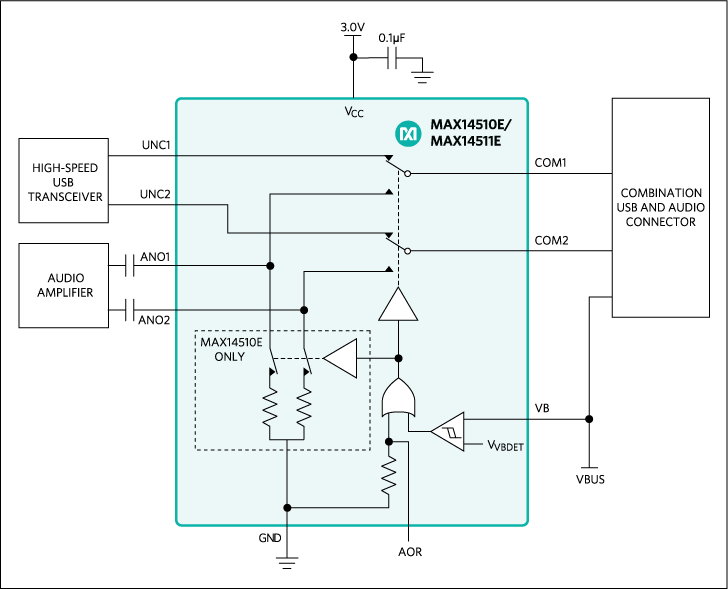

The MAX14508E—MAX14511E feature +5.5V fault protection on COM1 and COM2, making these devices compliant with the USB 2.0 fault-protection specification. The MAX14510E/MAX14511E feature a VBUS detection input (VB) to automatically switch to the USB signal path upon detection of a valid VBUS signal. The MAX14508E/MAX14510E feature internal shunt resistors on the audio path to reduce clicks and pops heard at the output. The MAX14508E/MAX14509E/MAX14509AE have an enable input (EN) to reduce supply current and set all channels to high impedance when driven low.

The MAX14508E—MAX14511E/MAX14509AE are available in a space-saving, 10-pin, 1.4mm x 1.8mm UTQFN package, and operate over the -40°C to +85°C temperature range.

Applications

• Cell Phones
• MP3 Players
• Notebook Computers
• PDAs
