Analog Devices MAX11637 Product Info

• Analog Multiplexer with True Differential Track/Hold
  • 8-/4-Channel Single Ended
  • 4-/2-Channel True Differential
  • Unipolar or Bipolar Inputs
• Single Supply
  • 2.7V to 3.6V (MAX11635/MAX11637)
  • 4.75V to 5.25V (MAX11634/MAX11636)
• External Reference: 1V to V_DD
• 16-Entry First-In/First-Out (FIFO)
• Scan Mode, Internal Averaging, and Internal Clock
• Accuracy: ±1 LSB INL, ±1 LSB DNL, No Missing Codes Over Temperature
• 10MHz 3-Wire SPI-/QSPI-/MICROWIRE-Compatible Interface
• Small 16-Pin QSOP Package

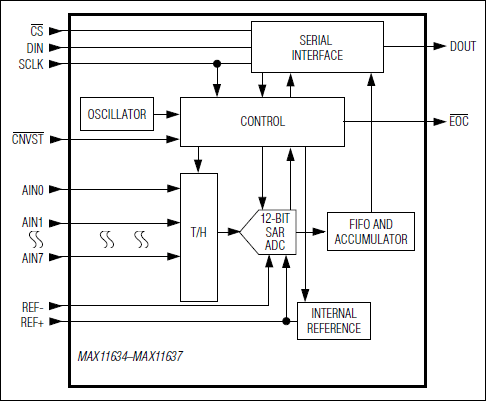

The MAX11634–MAX11637 are serial 12-bit analog-to-digital converters (ADCs) with an internal reference and true differential track/hold. These devices feature on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown™. The maximum sampling rate is 300ksps using an external clock. The MAX11636/MAX11637 have 8 input channels and the MAX11634/ MAX11635 have 4 input channels. These four devices operate from either a +3V supply or a +5V supply, and contain a 10MHz SPI™-/QSPI™-/MICROWIRE™-compatible serial port.

The MAX11634–MAX11637 are available in a 16-pin QSOP package. All four devices are specified over the extended -40°C to +85°C temperature range.

Applications

• Data Logging
• Data-Acquisition Systems
• Industrial Control Systems
• Instrumentation
• Patient Monitoring
• System Supervision
