Analog Devices MAX1038 Product Info

• High-Speed I²C-Compatible Serial Interface
  • 400kHz Fast Mode
  • 1.7MHz High-Speed Mode
• Single Supply
  • 2.7V to 3.6V (MAX1037/MAX1039)
  • 4.5V to 5.5V (MAX1036/MAX1038)
• Internal Reference
  • 2.048V (MAX1037/MAX1039)
  • 4.096V (MAX1036/MAX1038)
• External Reference: 1V to V_DD
• Internal Clock
• 4-Channel Single-Ended or 2-Channel Pseudo-Differential (MAX1036/MAX1037)
• 12-Channel Single-Ended or 6-Channel Pseudo-Differential (MAX1038/MAX1039)
• Internal FIFO with Channel-Scan Mode
• Low Power
  • 350µA at 188ksps
  • 110µA at 75ksps
  • 8µA at 10ksps
  • 1µA in Power-Down Mode
• Software Configurable Unipolar/Bipolar
• Small Packages
  • 8-Pin SOT23 (MAX1036/MAX1037)
  • 16-Pin QSOP (MAX1038/MAX1039)

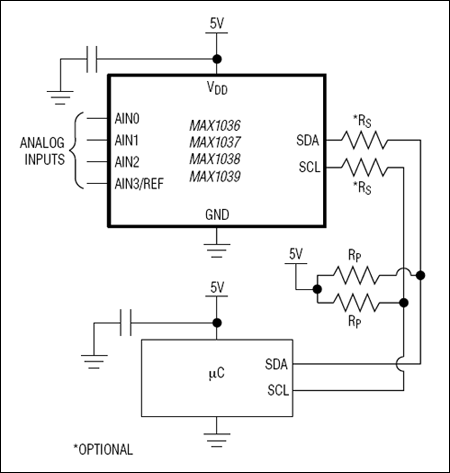

The MAX1036–MAX1039 low-power, 8-bit, multichannel, analog-to-digital converters (ADCs) feature internal track/hold (T/H), voltage reference, clock, and an I²C-compatible 2-wire serial interface. These devices operate from a single supply and require only 350µA at the maximum sampling rate of 188ksps. AutoShutdown™ powers down the devices between conversions reducing supply current to less than 1µA at low throughput rates. The MAX1036/MAX1037 have four analog input channels each, while the MAX1038/MAX1039 have twelve analog input channels. The analog inputs are software configurable for unipolar or bipolar and single-ended or pseudo-differential operation.

The full-scale analog input range is determined by the internal reference or by an externally applied reference voltage ranging from 1V to V_DD. The MAX1037/MAX1039 feature a 2.048V internal reference and the MAX1036/MAX1038 feature a 4.096V internal reference.

The MAX1036/MAX1037 are available in 8-pin SOT23 packages. The MAX1038/MAX1039 are available in 16-pin QSOP packages. The MAX1036–MAX1039 are guaranteed over the extended industrial temperature range (-40°C to +85°C). Refer to MAX1136–MAX1139 for 10-bit devices and to the MAX1236–MAX1239 for 12-bit devices.

Applications

• Battery-Powered Test Equipment
• Handheld Portable Applications
• Medical Instruments
• Received-Signal-Strength Indicators
• Solar-Powered Remote Systems
• System Supervision
