LTP8802A-1B

RECOMMENDED FOR NEW DESIGNS

54V, 140A DC/DC μModule Regulator with PMBus Interface

Analog Devices LTP8802A-1B Product Info

10 February 2026 5

Features

High Efficiency at High Frequency
- Up to 93.8% Efficiency at 813kHz, 54V_IN to 3.3V_OUT
PMBus-Compliant I²C Serial Interface
- Monitor Voltage, Current, Temperature and Faults
- Internal EEPROM Fault Log Record
- Digitally Programmable Control Loop Program Voltage, Current Limits, Soft-Start/Soft- Stop, Frequency Synchronization and Phasing, Power-Good, Warnings, and Faults

Wide Input Voltage Range: 45V to 65V
Output Voltage Range: 0.5V to 3.6V
Optimized for 45V to 65V_IN to 3.3V_OUT
±0.5% Maximum DC Output Error with Differential Remote Voltage Sense
±3% Current Readback Accuracy
Parallel and Current Share Multiple μModule ICs

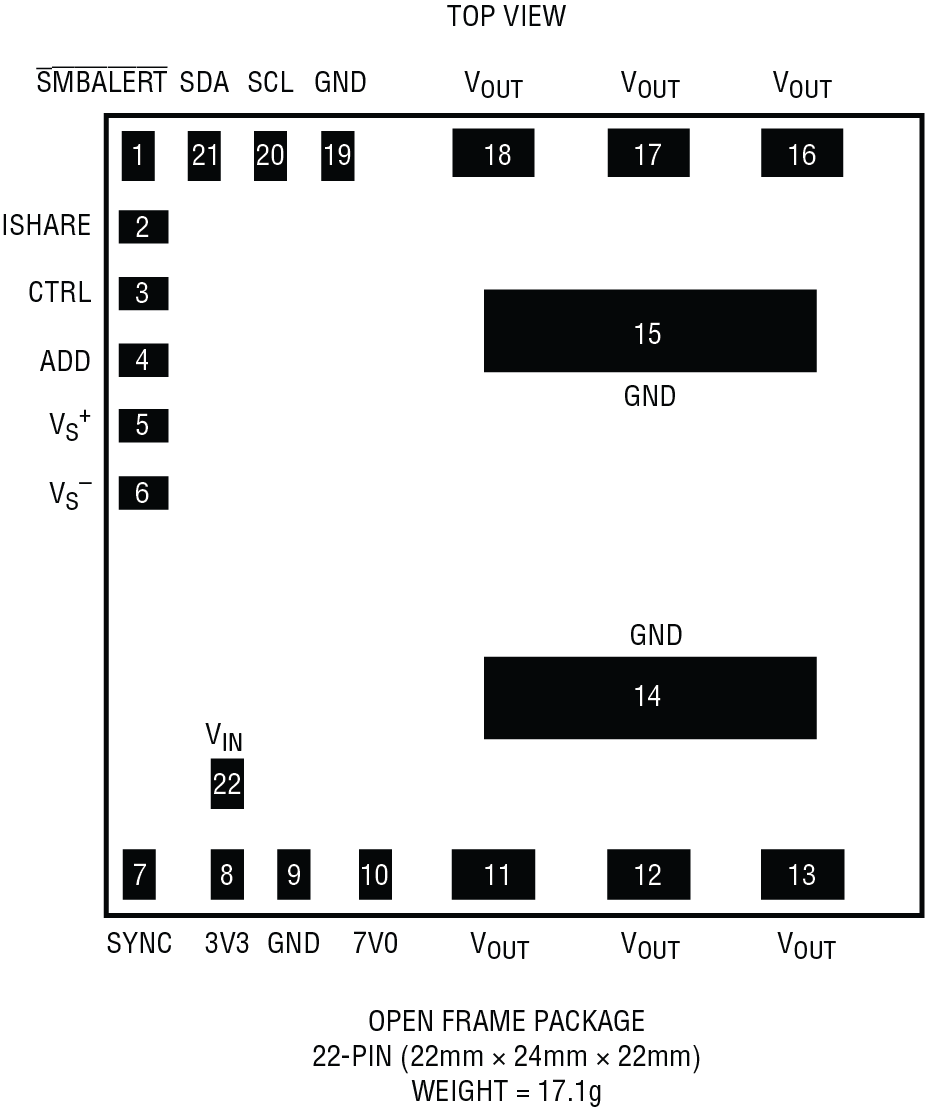

22mm × 24mm × 22mm Surface-Mounted Package

Part details & applications

The LTP^®8802A-1B is a 140A step-down μModule^® (micromodule) regulator that provides microprocessor core voltage from a 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus, an open standard I²C-based digital interface protocol.

The LTP8802A-1B is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density.

The LTP8802A-1B preserves high efficiency at high conversion ratios by utilizing a quasi-resonant architecture that reduces high voltage switching losses. The LTP8802A-1B is available in a 22mm × 24mm × 22mm surface-mounted open frame package.

APPLICATIONS

High Current Distributed Power Systems
Servers, Network, and Storage Equipment
Intelligent Energy Efficient Power Regulation
