Analog Devices LTC2927 Product Info

• Flexible Power Supply Tracking

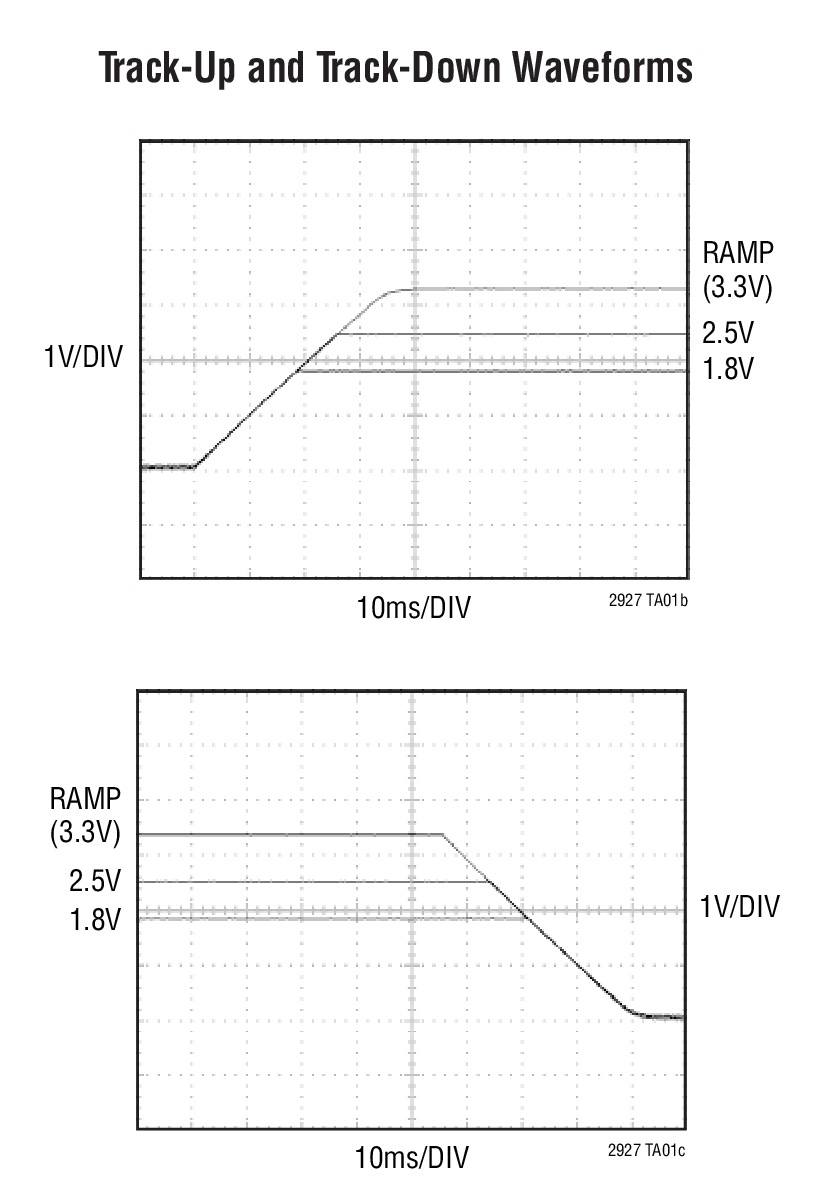

• Tracks Both Up and Down
• Power Supply Sequencing
• Supply Stability is Not Affected
• Low Pin Count
• Controls Single Supply without Series FETs
• Adjustable Ramp Rate

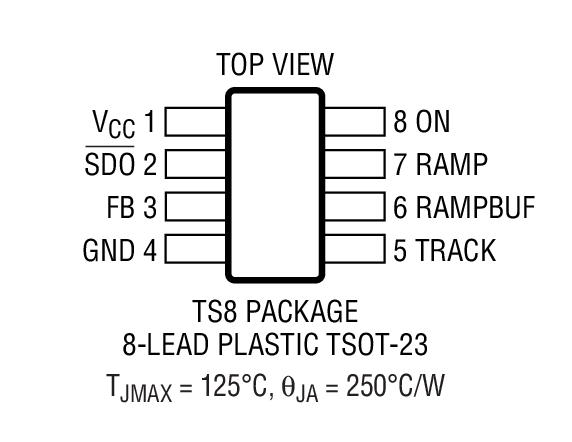

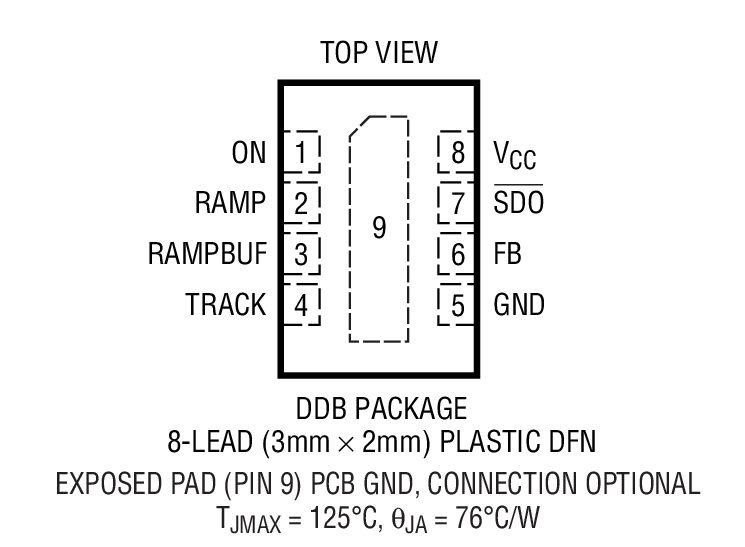

• Available in 8-Lead ThinSOT^™ and 8-Lead (3mm × 2mm) DFN Packages

The LTC2927 provides a simple solution to power supply tracking and sequencing requirements. By selecting a few resistors, the supply can be configured to ramp-up and ramp-down with differing ramp rates, voltage offsets, or time delays relative to other supplies or a master signal.

By forcing current into a feedback node of an independent supply, the LTC2927 causes the output to track a ramp signal without inserting any pass element losses. Because the current is controlled in an open-loop manner, the LTC2927 does not affect the transient response or stability of the supply. The compact solution at point of load minimizes the trace length of the DC/DC circuit sensitive FB node. Furthermore, it presents a high impedance when power-up is complete, effectively removing it from the DC/DC circuit.

Applications

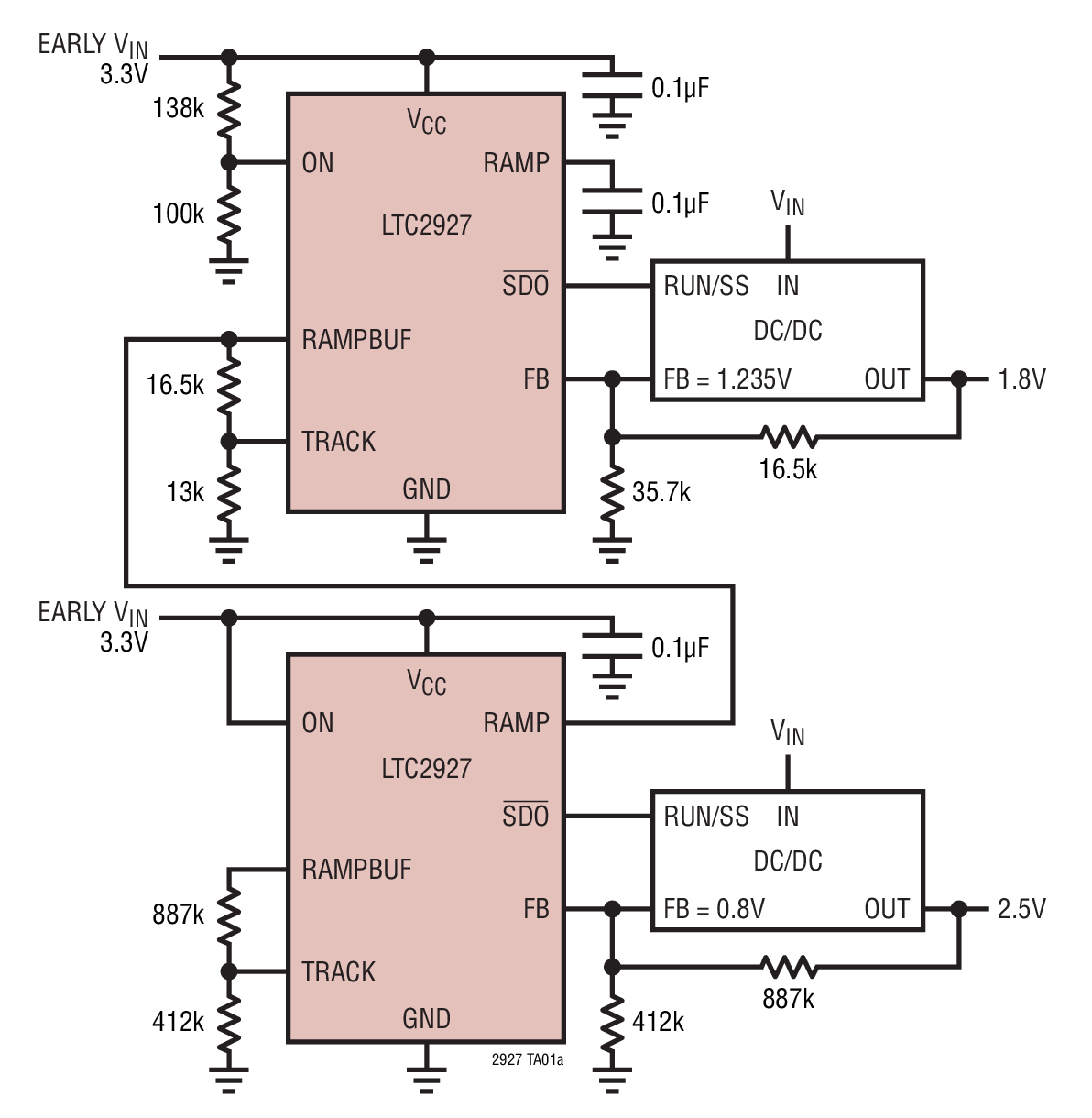

• VCORE and VI/O Supply Tracking
• Microprocessor, DSP and FPGA Supplies
• Multiple Supply Systems
• Point-of-Load Supplies
