LTM8063

RECOMMENDED FOR NEW DESIGNS

40VIN, 2A Silent Switcher µModule Regulator

Analog Devices LTM8063 Product Info

10 February 2026 6

Features

Low Noise Silent Switcher^® Architecture
Wide Input Voltage Range: 3.2V to 40V
Wide Output Voltage Range: 0.8V to 15V
2A Continuous Output Current at 12V_IN, 5V_OUT, T_A = 85°C
2.5A Peak Current

Selectable Switching Frequency: 200kHz to 2.2MHz
External Synchronization
Configurable as an Inverter

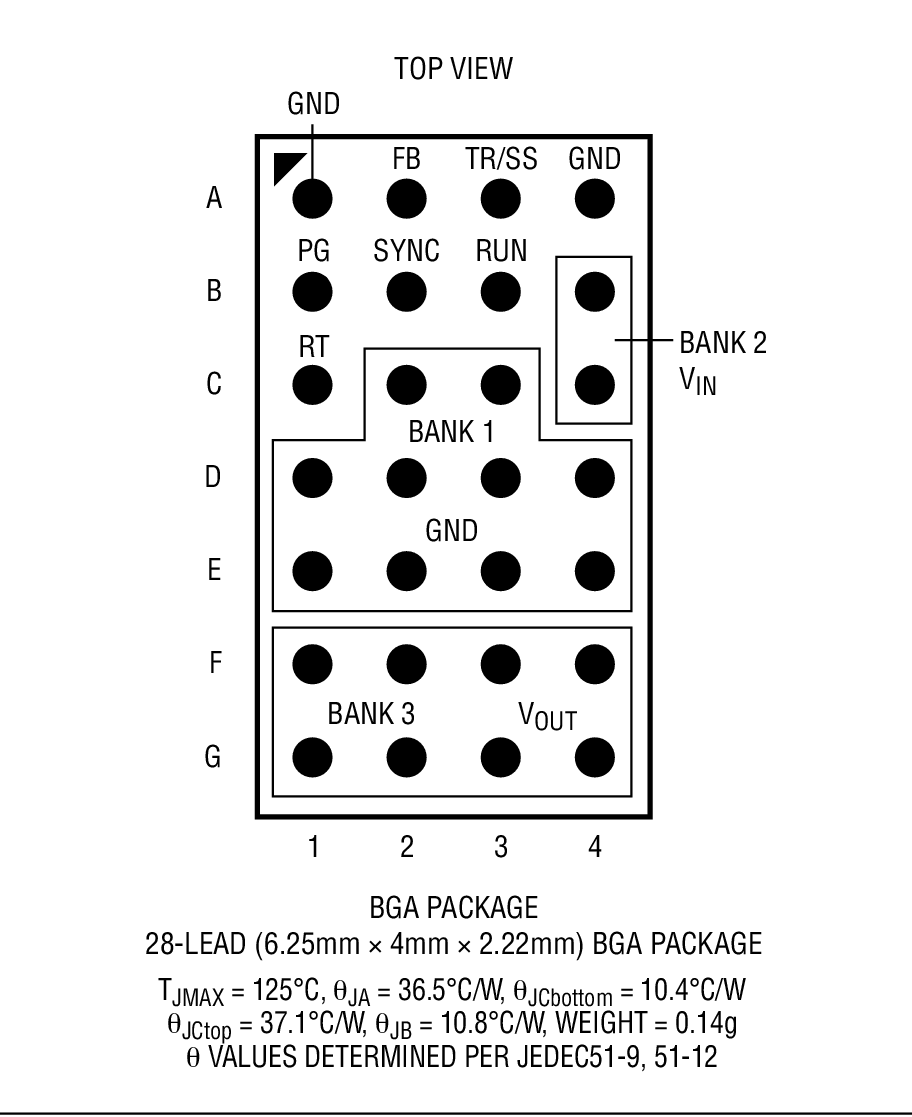

6.25mm × 4mm × 2.22mm BGA Package

Part details & applications

The LTM8063 is a 40V_IN, 2A continuous, 2.5A peak, step-down µModule^® (power module) regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.2V to 40V, the LTM8063 supports an output voltage range of 0.8V to 15V and a switching frequency range of 200kHz to 2.2MHz, each set by a single resistor. Only the input and output filter capacitors are needed to finish the design.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8063 is packaged in a thermally enhanced, compact over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8063 is RoHS compliant.

Applications

Automotive Battery Regulation
Power for Portable Products
Distributed Supply Regulation
Industrial Supplies
Wall Transformer Regulation
