Analog Devices LTM8061 Product Info

• Wide Input Voltage Range: 4.95V to 32V (40V Absolute Maximum)
• Float Voltage Options:
  • 1-Cell: 4.1V, 4.2V
  • 2-Cell: 8.2V, 8.4V
• Programmable Charge Current: Up to 2A
• User-Selectable Charge Termination: C/10 or Onboard Termination Timer
• Dynamic Charge Rate Programming/Soft-Start Pin
• Programmable Input Current Limit
• Optional Reverse Input Protection
• NTC Resistor Temperature Monitor
• 0.5% Float Voltage Accuracy
• Bad-Battery Detection with Auto-Reset
• Tiny, Low Profile (9mm × 15mm × 4.32mm) Surface Mount LGA Package

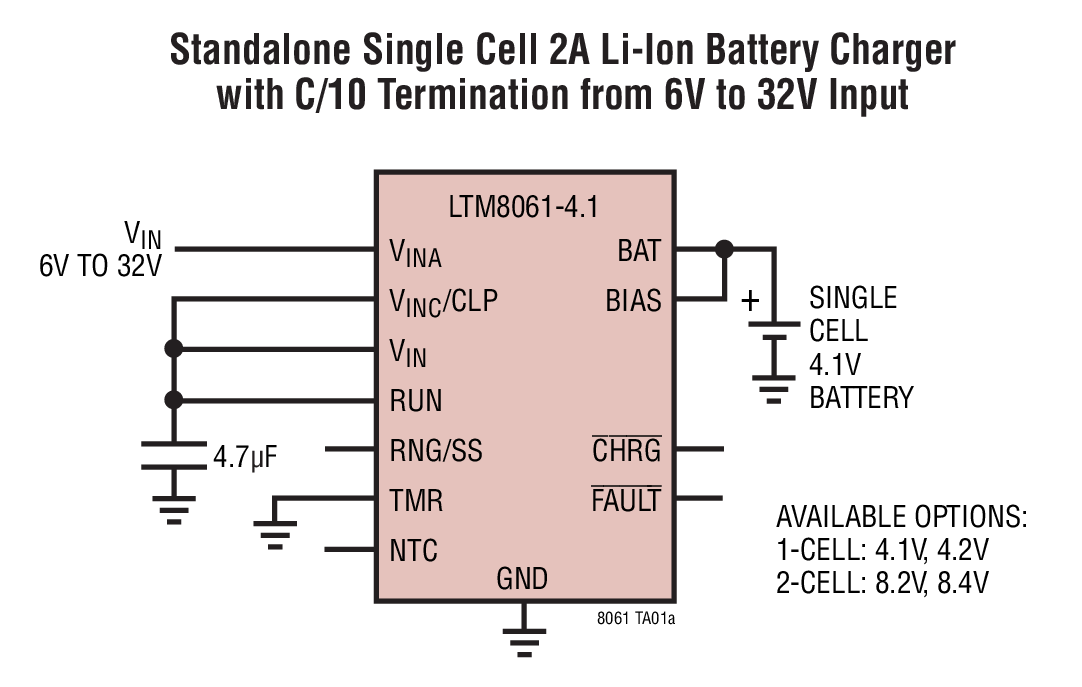

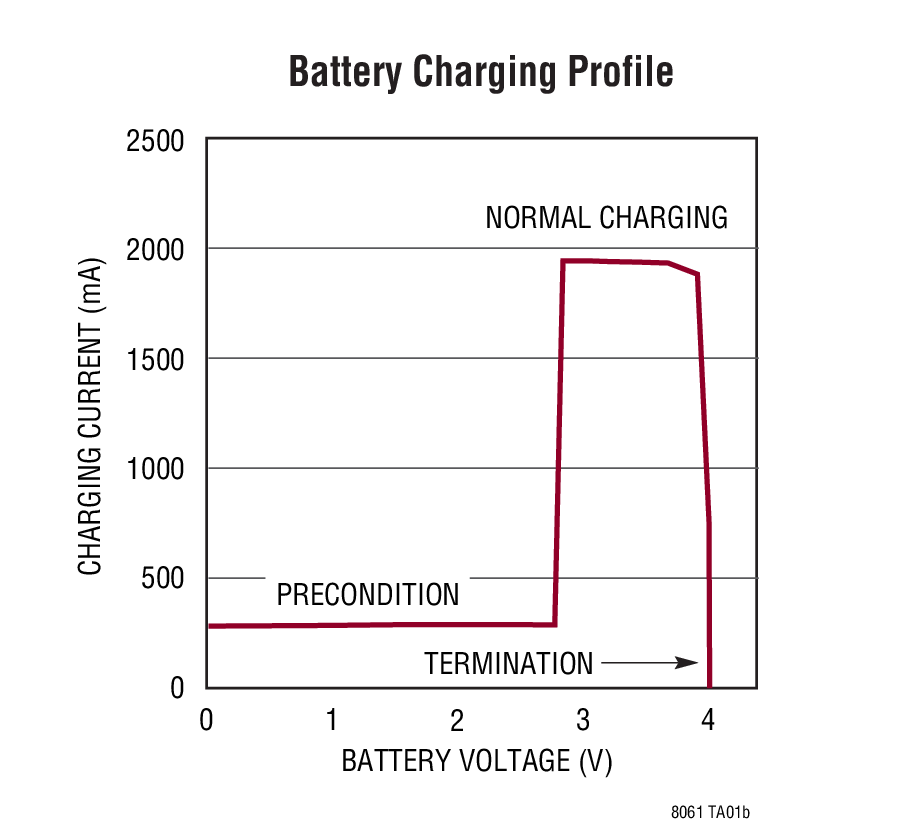

The LTM8061 is a high efficiency 32V, 2A μModule^® (power module) standalone Li-Ion battery charger. It is optimized for one and two-cell packs, with fixed float voltage options: 4.1V, 4.2V, 8.2V and 8.4V. The LTM8061 provides a constant-current/constant-voltage charge characteristic, with maximum charge current up to 2A. A precondition feature trickle charges a depleted battery, and bad battery detection provides a signal and suspends charging if a battery does not respond to preconditioning.

The LTM8061 can be configured to terminate charging when charge current falls to one-tenth the programmed maximum current or to use an internal timer if a timebased termination scheme is desired. Once charging is terminated, the LTM8061 enters a low current standby mode. An auto-restart feature starts a new charge cycle if the battery voltage drops 2.5% from the float voltage, or if a new battery is inserted into a charging system.

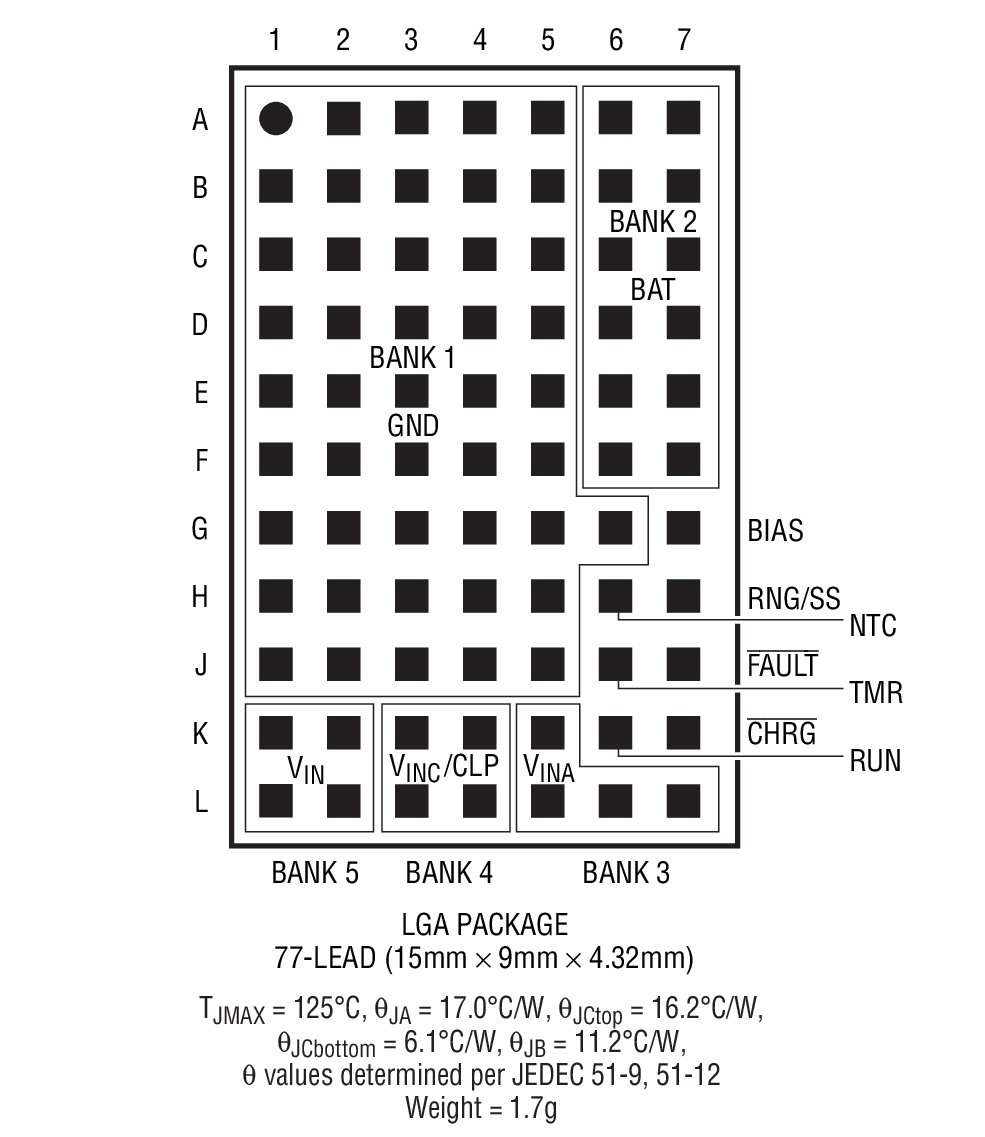

The LTM8061 is packaged in a thermally enhanced, compact (9mm × 15mm × 4.32mm) over-molded land grid array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8061 is RoHS compliant.

Applications

• Industrial Handheld Instruments
• 12V to 24V Automotive and Heavy Equipment
• Professional Video/Camera Chargers
