LTM8060

RECOMMENDED FOR NEW DESIGNS

Quad 40VIN, Silent Switcher μModule Regulator with Configurable 3A Output Array

Analog Devices LTM8060 Product Info

10 February 2026 5

Features

Four Complete Step-Down Switching Power Supplies
Low Noise Silent Switcher^® Architecture
CISPR22 Class B and CISPR25 Class 5 Compliant
Wide Input Voltage Range: 3V to 40V
Wide Output Voltage Range: 0.8V to 8V
3A Continuous Output Current per Channel at 12V_IN, 3.3V_OUT, T_A = 80°C

4A Continuous Output Current per Channel at 12V_IN, 3.3V_OUT, f_SW = 2MHz, T_A = 60°C
Multiphase or Multi-μModule Parallelable for Increased Output Current
Low Thermal Resistance, θ_JA = 8.4°C/W, θ_JCtop = 5.0°C/W, θ_JCbot = 1.8°C/W
Selectable Switching Frequency: 200kHz to 3MHz
Compact Package

Part details & applications

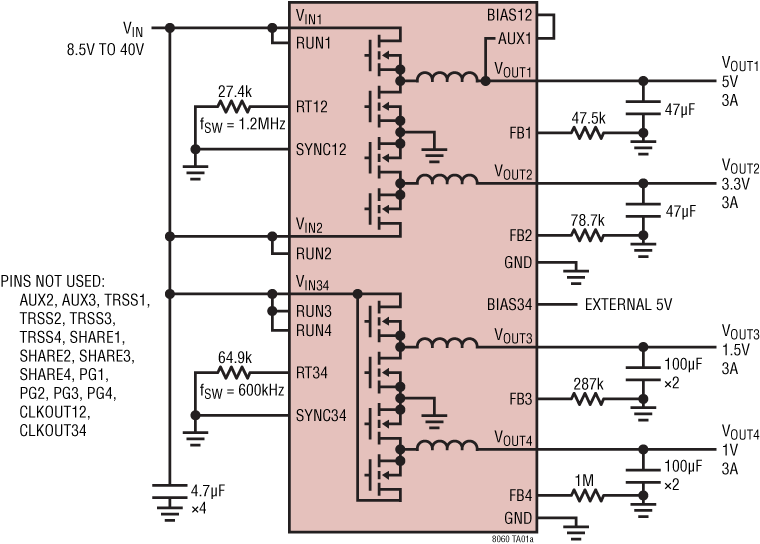

The LTM8060 is quad 40V_IN, 3A step-down Silent Switcher μModule^® regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8060 supports output voltages from 0.8V to 8V, and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors, are needed to finish the design. The LTM8060 product video is available on website.

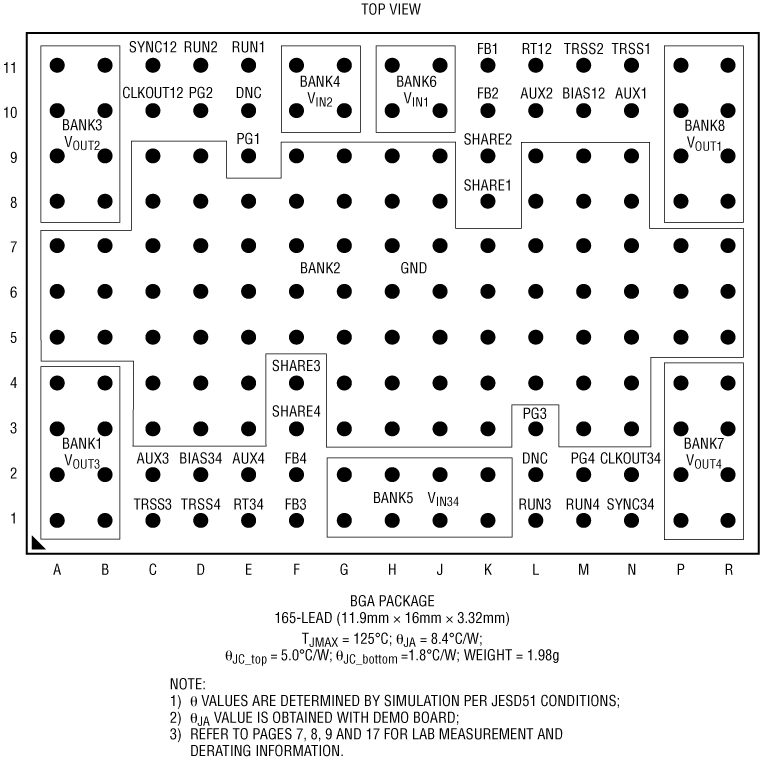

The LTM8060 is packaged in a compact (11.9mm × 16mm × 3.32mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8060 is RoHS compliant.

Configurable Output Array

The LTM8060 outputs can be paralleled in an array for up to 12A capability.

APPLICATIONS

Automated Test Equipment
Industrial Supplies
Medical Equipment
