Analog Devices MAX5100 Product Info

• +2.7V to +5.5V Single-Supply Operation
• Ultra-Low Supply Current
  • 0.4mA while Operating
  • 1nA in Shutdown Mode
• Ultra-Small 20-Pin TSSOP Package
• Ground to V_DD Reference Input Range
• Output Buffer Amplifiers Swing Rail-to-Rail
• Double-Buffered Registers for Synchronous Updating
• Power-On Reset Sets All Registers to Zero

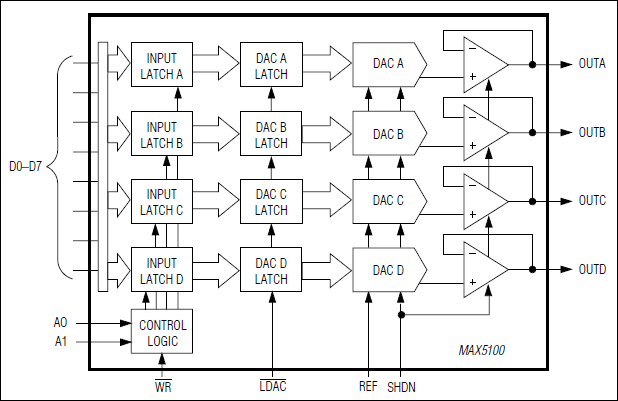

The MAX5100 parallel-input, voltage-output, quad 8-bit digital-to-analog converter (DAC) operates from a single +2.7V to +5.5V supply and comes in a space-saving 20-pin TSSOP package. Internal precision buffers swing Rail-to-Rail, and the reference input range includes both ground and the positive rail. All four DACs share a common reference input.

The MAX5100 provides double-buffered logic inputs: four 8-bit buffer registers followed by four 8-bit DAC registers. This keeps the DAC outputs from changing during the write operation. An asynchronous control pin, active-low LDAC , allows for simultaneous updating of the DAC registers. The MAX5100 features a shutdown mode that reduces current to 1nA, as well as a power-on reset mode that resets all registers to code 00 hex on power-up.

Applications

• Digital Gain and Offset Control
• Portable Instrumentation
• Power-Amp Bias Control
• Programmable Attenuators
