LTM4652

RECOMMENDED FOR NEW DESIGNS

Source/Sink Dual ±25A or Single ±50A μModule Regulator with Input Overvoltage Protection

Analog Devices LTM4652 Product Info

10 February 2026 5

Features

Dual ±25A or Single ±50A Output Source/Sink
Input Voltage Range: 4.5V to 18V (20V Abs Max)
Output Voltage Range: 0.6V to 7.5V (8V Abs Max)
±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
Adjustable Control Loop Compensation
Differential Remote Sense Amplifier
Current Mode Control/Fast Transient Response
Multiphase Parallel Current Sharing Up to ±300A

Internal Temperature Monitor
Adjustable Switching Frequency or Synchronization
Overcurrent Foldback Protection
Selectable Pulse-Skipping Mode Operation
Soft-Start/Voltage Tracking
Input and Output Overvoltage Protection

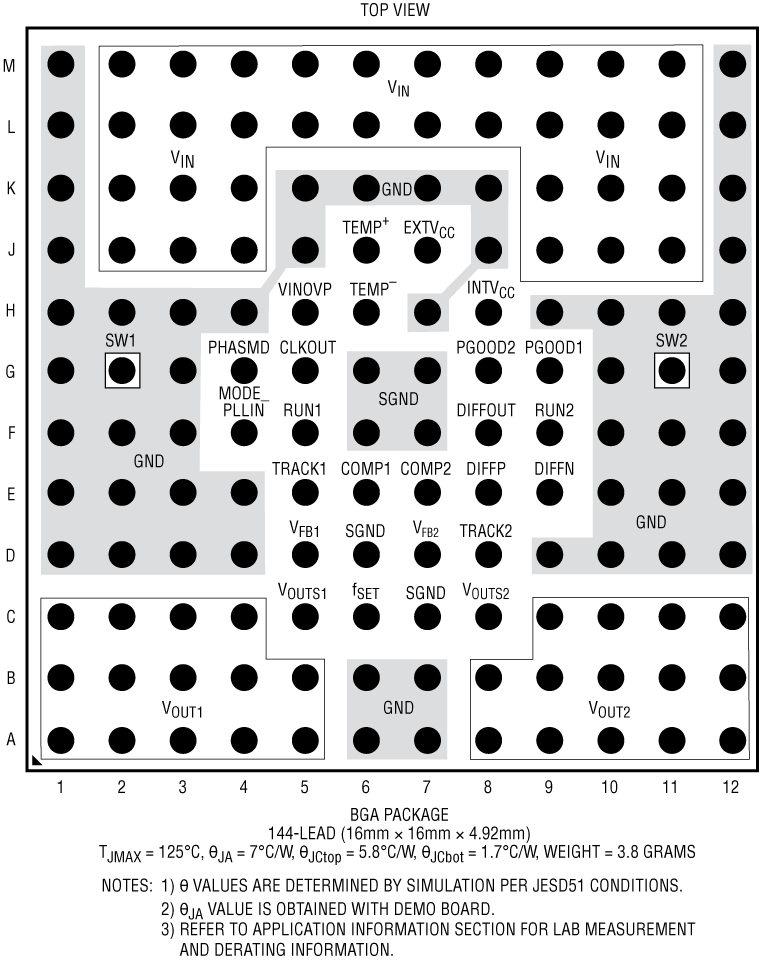

16mm × 16mm × 4.92mm BGA Package

Part details & applications

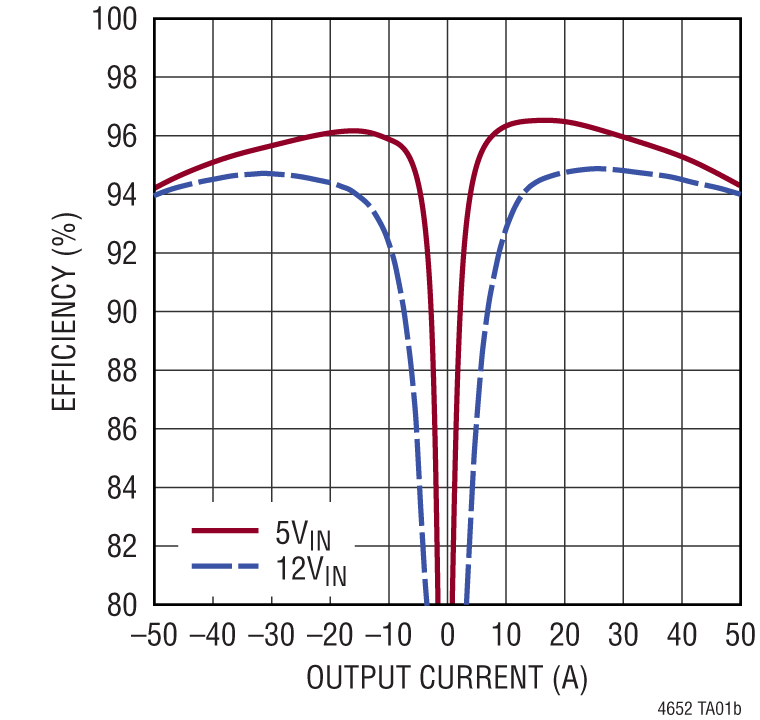

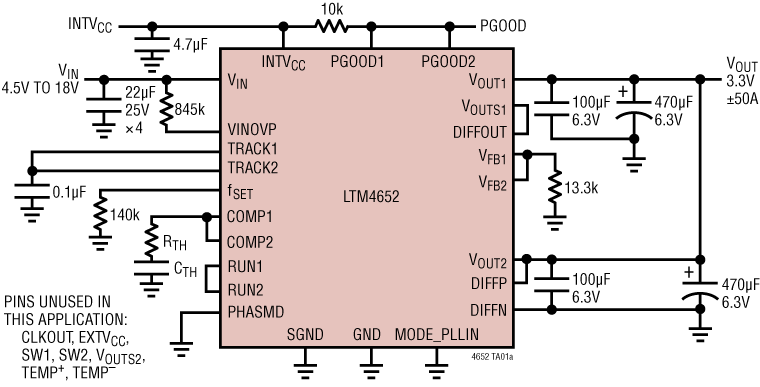

The LTM4652 is a source/sink dual ±25A or single ±50A output switching mode step-down DC/DC μModule^® (micromodule) regulator with ±1.5% total DC output error. Included in the package are the switching controllers, power MOSFETs, inductors and all supporting components. Operating from an input voltage range of 4.5V to 18V, the LTM4652 supports two outputs with an output voltage range of 0.6V to 7.5V, each set by a single external resistor. Its high efficiency design delivers up to ±25A continuous current for each output. Only a few input and output capacitors are needed. Adjustable control loop compensation allows for fast transient response to minimize output capacitance when powering FPGAs, ASICs, and processors.

Fault protection features include input and output overvoltage and bidirectional overcurrent protection. The LTM4652 is offered in a 16mm × 16mm × 4.92mm BGA package.

APPLICATIONS

Test and Measurement Instrumentation
Telecom and Networking Equipment
Industrial Equipment

Protected by U.S. Patents, including 5481178, 5705919, 5929620, 6100678, 6144194, 6177787, 6304066 and 6580258. Other patents pending.
