HMC553ALC3B

PRODUCTION

6 GHz to 14 GHz, GaAs, MMIC, Double-Balanced Mixer

Analog Devices HMC553ALC3B Product Info

10 February 2026 6

Features

Passive: no dc bias required
Conversion loss: 7 dB typical at 6 GHz to 11 GHz
Input IP3: 18 dBm typical at 6 GHz to 11 GHz

LO to RF isolation: 36 dB typical
Wide IF bandwidth: dc to 5 GHz

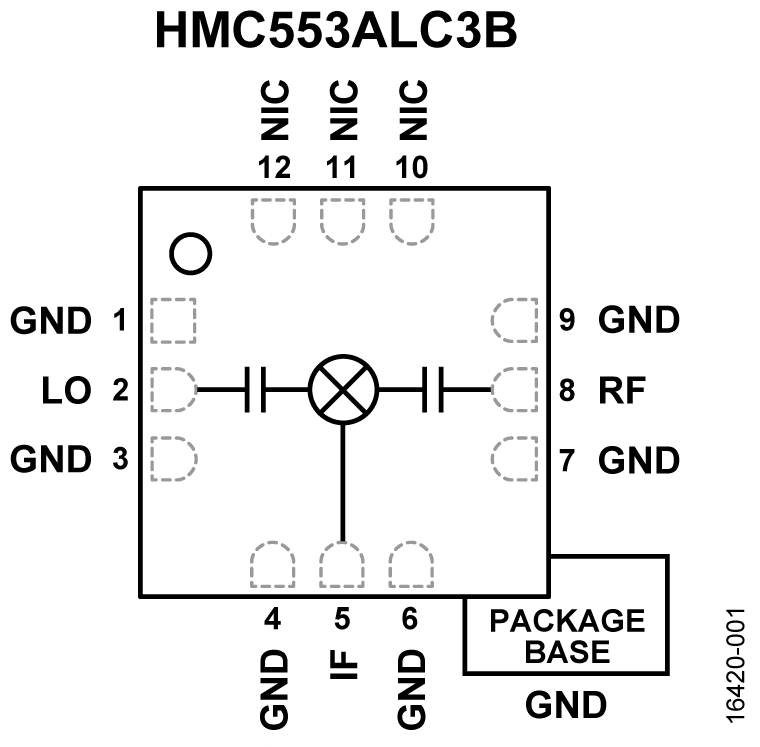

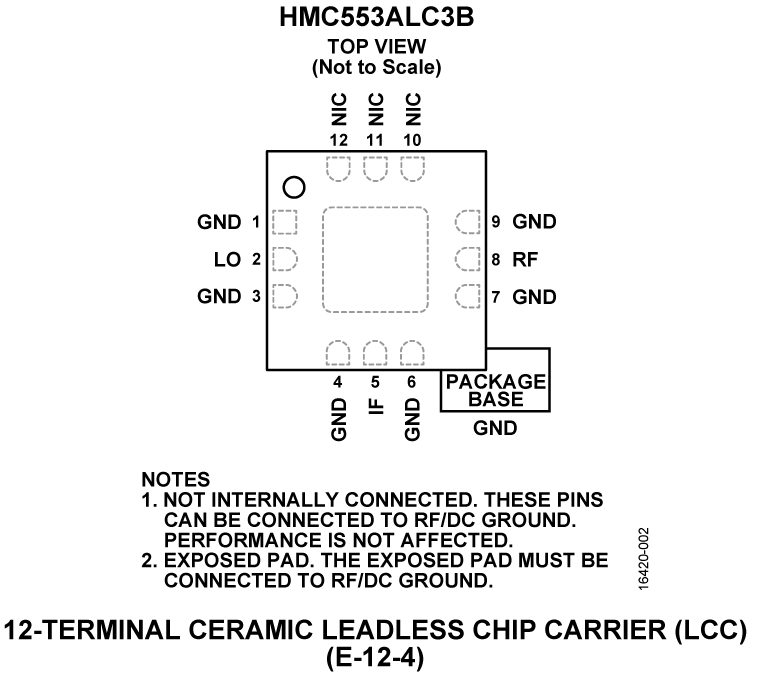

RoHS compliant, 12-terminal, 2.90 mm × 2.90 mm LCC package

Part details & applications

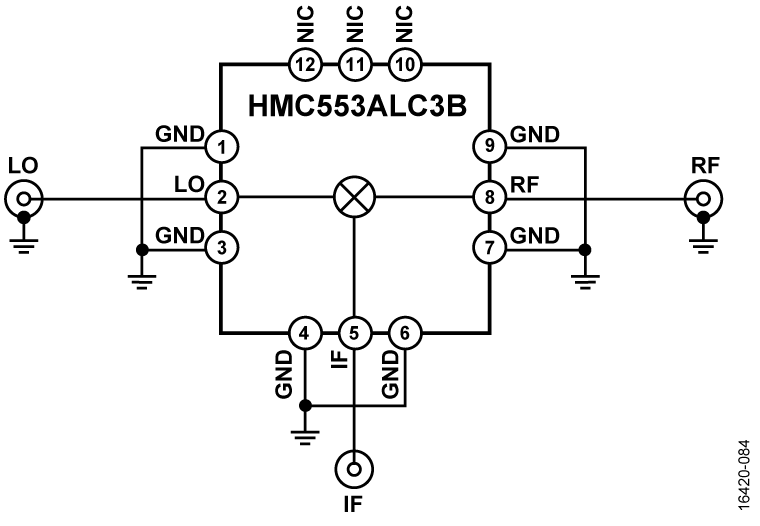

The HMC553ALC3B is a general-purpose, double-balanced, gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC) mixer housed in a leadless Pb-free, RoHS compliant LCC package. The HMC553ALC3B can be used as an upconverter or downconverter between 6 GHz and 14 GHz. This mixer requires no external components or matching circuitry.

The HMC553ALC3B provides local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) suppression due to optimized balun structures. The mixer operates with LO drive levels from 9 dBm to 15 dBm. The HMC553ALC3B eliminates the need for wire bonding, allowing use of surfacemount manufacturing techniques.

Applications

Microwave and very small aperture terminal (VSAT) radios
Test equipment
Point to point radios
Military electronic warfare (EW); electronic countermeasure (ECM); and command, control, communications and intelligence (C3I)
