Analog Devices LTC6909 Product Info

• 1-, 2-, 3-, 4-, 5-, 6-, 7- or 8-Phase Outputs
• One External Resistor Sets the Output Frequency from 12.5kHz to 6.67MHz

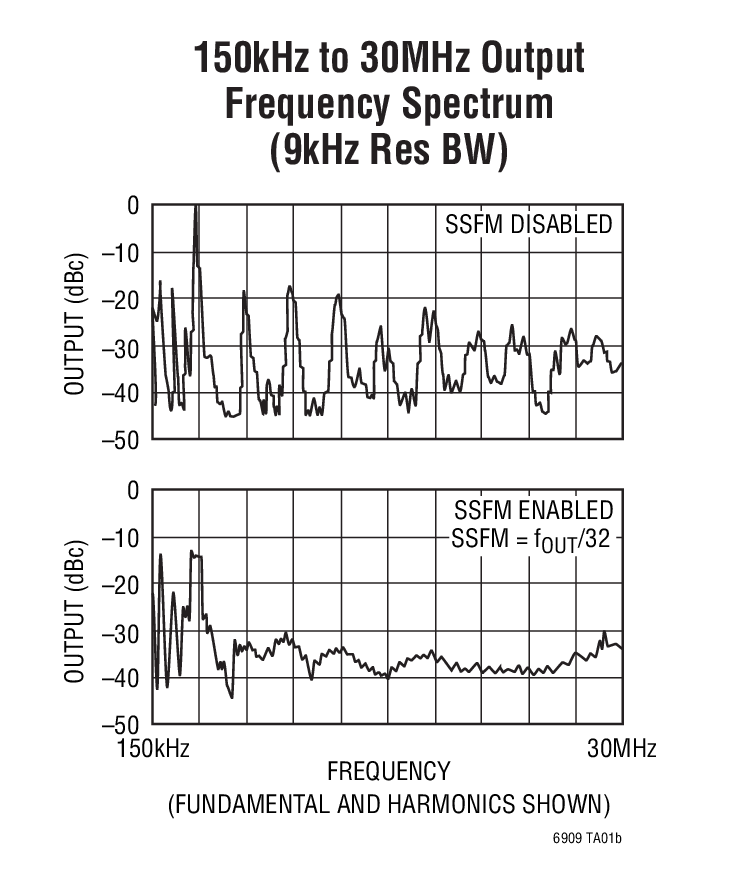

• Optional Spread Spectrum Frequency for Improved EMI Performance
• ±10% Frequency Spreading
• Outputs Can Be Held Low or Floated (Hi-Z)
• Three Spread Spectrum Modulation Rates f_OUT/16, f_OUT/32 and f_OUT/64
• 400μA Supply Current
• Operates from a Single 2.7V to 5.5V Supply
• Fast Start-Up Time
• First Cycle Accurate
• Outputs Are High Impedance Until Frequency Settles

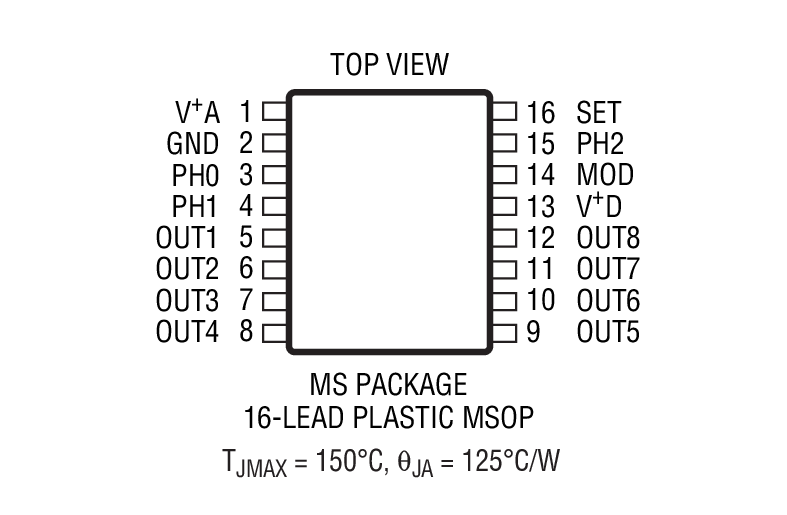

• MS16 Package

The LTC6909 is an easy to use precision oscillator that can provide 1-, 2-, 3-, 4-, 5-, 6-, 7- or 8-phase synchronized outputs. The LTC6909 also offers spread spectrum frequency modulation (SSFM), which can be enabled to improve electromagnetic compatibility (EMC) performance.

Eight separate outputs provide up to eight rail-to-rail, 50% duty cycle clock signals. Using three logic inputs, the outputs are configured for phase separation, ranging from 45° to 120° (three to eight phases). The clock outputs can also be held low or configured for Hi-Z. A single resistor, combined with the phase configuration, sets the output frequency, based on the following formula:

The LTC6909 can be used in applications requiring only one or two output phases. Alternatively, the LTC6908 family of parts provides the same two output signals but in a smaller SOT-23 or 2mm × 3mm DFN package. The LTC6908-1 provides complimentary (180°) outputs while the LTC6908-2 provides quadrature (90°) outputs.

Applications

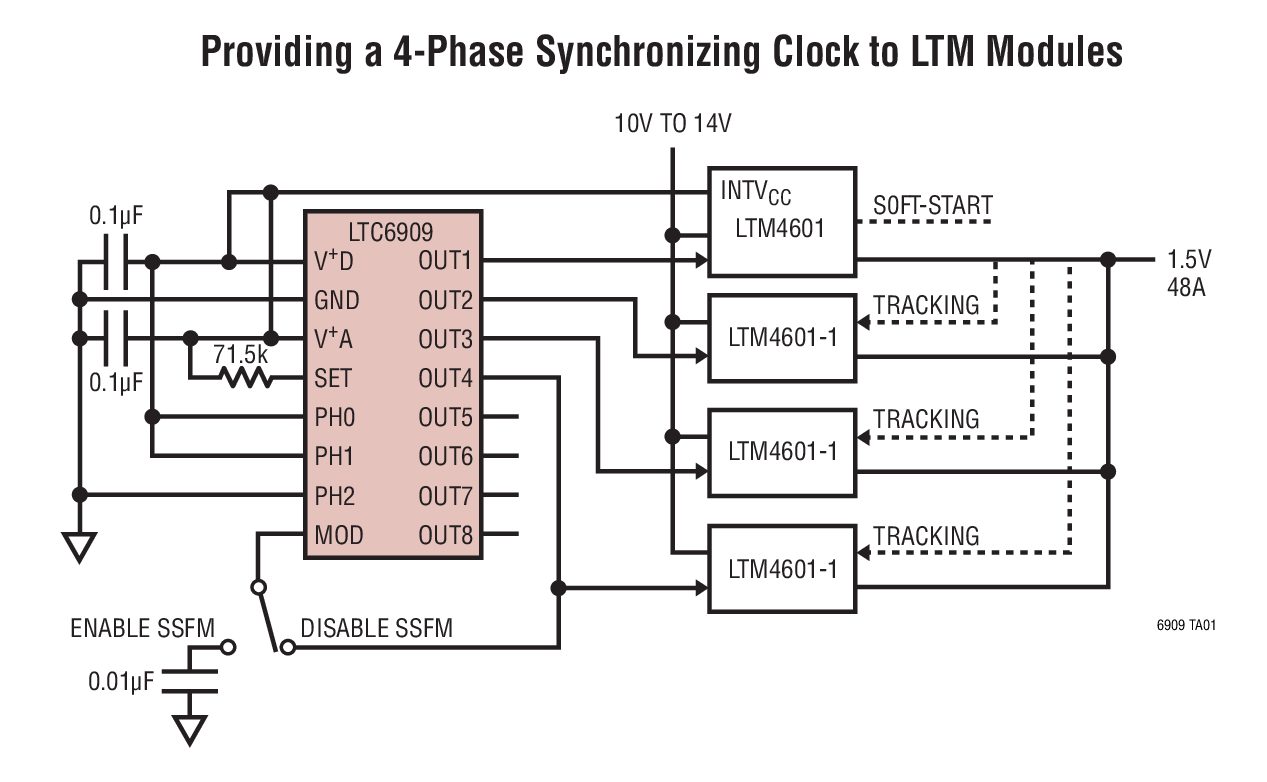

• Synchronizing Multiple Switching Power Supplies
