Analog Devices LTC2387-18 Product Info

• 15Msps Throughput Rate
• No Pipeline Delay, No Cycle Latency

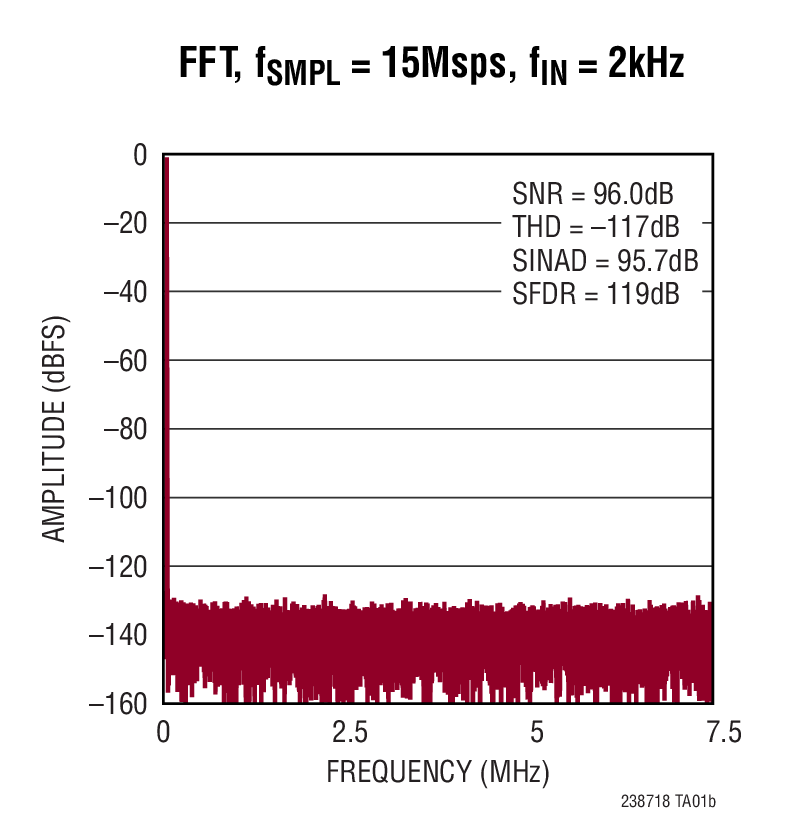

• 95.7dB SNR (Typ) at f_IN = 1MHz
• 102dB SFDR (Typ) at f_IN = 1MHz
• Nyquist Sampling Up to 7.5MHz Input
• Guaranteed 18-Bit, No Missing Codes
• ±3LSB INL (Max)
• 8.192V_P-P Differential Inputs
• 5V and 2.5V Supplies
• Internal 20ppm/°C (Max) Reference
• Serial LVDS Interface
• 125mW Power Dissipation

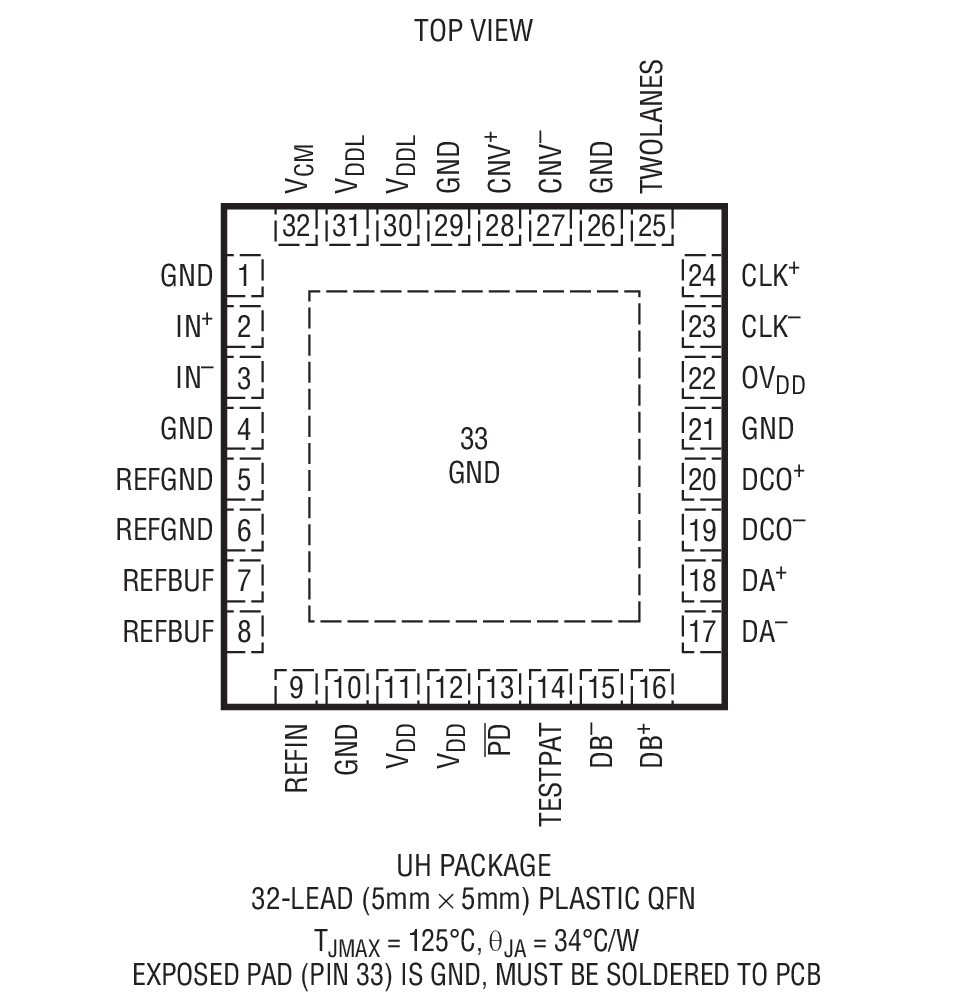

• 32-Pin (5mm × 5mm) QFN Package

The LTC2387-18 is a low noise, high speed, 18-bit 15Msps successive approximation register (SAR) ADC ideally suited for a wide range of applications. The combination of excellent linearity and wide dynamic range makes the LTC2387-18 ideal for high speed imaging and instrumentation applications. No latency operation provides a unique solution for high speed control loop applications. The very low distortion at high input frequencies enables communications applications requiring wide dynamic range and significant signal bandwidth.

To support high speed operation while minimizing the number of data lines, the LTC2387-18 features a serial LVDS digital interface. The LVDS interface has one-lane and two-lane output modes, allowing the user to optimize the interface data rate for each application.

Applications

• High Speed Data Acquisition
• Imaging
• Communications
• Control Loops
• Instrumentation
• ATE
