Analog Devices LTC5505 Product Info

• Internal Schottky Diode RF Detector with Two Input Power Ranges:
• LTC5505-1, –28dBm to 18dBm
• LTC5505-2, –32dBm to 12dBm
• Wide Input Frequency Range: 300MHz to 3GHz (LTC5505-1); 300MHz to 3.5GHz (LTC5505-2)
• Temperature Compensated
• Buffered Detector Output
• Wide V_CC Range of 2.7V to 6V
• Low Operating Current: 0.5mA
• Low Shutdown Current: <2µA

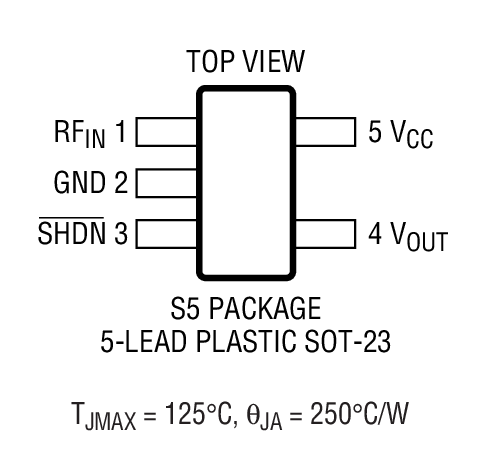

• Low Profile (1mm) ThinSOT^™ Package

The LTC5505-X is an RF power detector for RF applications operating in the 300MHz to 3.5GHz range. A temperature compensated Schottky diode peak detector and buffer amplifier are combined in a small 5-pin ThinSOT package. The supply voltage range is optimized for operation from a single lithium-ion cell or 3xNiMH.

The RF input voltage is peak detected using an on-chip Schottky diode. The detected voltage is buffered and supplied to the V_OUT pin. A power saving shutdown mode reduces supply current to less than 2µA.

The LTC5505-1 operates with input power levels from –28dBm to 18dBm. The LTC5505-2 operates with input power levels from –32dBm to 12dBm.

Applications

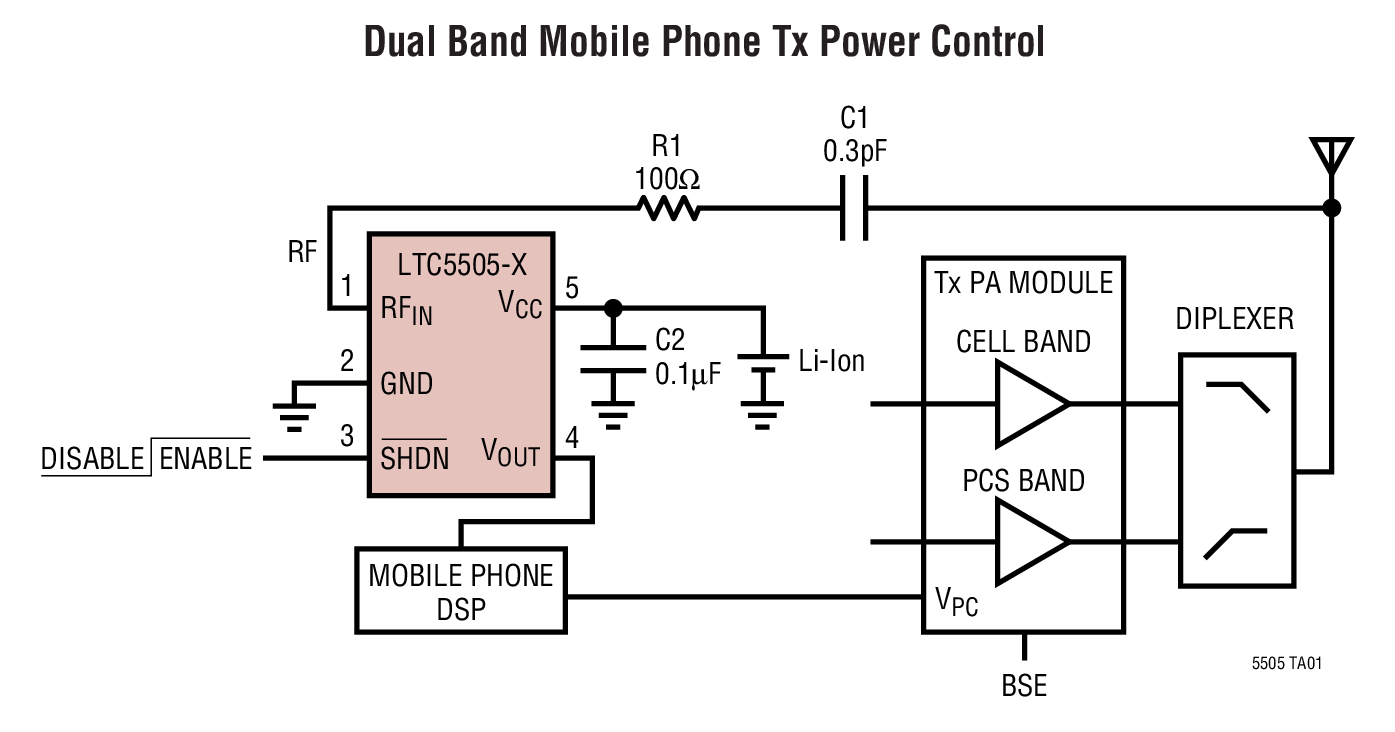

• Multimode Mobile Phone Products
• PCS Devices
• Wireless Data Modems
• Wireless and Cable Infrastructure
• RF Power Alarm
• Envelope Detector
