AD6643

RECOMMENDED FOR NEW DESIGNS

Dual IF Receiver

Analog Devices AD6643 Product Info

10 February 2026 4

Features

11-bit, 250 MSPS output data rate per channel
Performance with NSR enabled
- SNR: 74.5 dBFS in a 55 MHz band to 90 MHz at 250 MSPS
- SNR: 72.0 dBFS in a 82 MHz band to 90 MHz at 250 MSPS
Performance with NSR disabled
- SNR: 66.2 dBFS up to 90 MHz at 250 MSPS
- SFDR: 85 dBc up to 185 MHz at 250 MSPS
Total power consumption: 706 mW at 200 MSPS

1.8 V supply voltages
LVDS (ANSI-644 levels) outputs
Integer 1-to-8 input clock divider (625 MHz maximum input)
Internal ADC voltage reference
Flexible analog input range
- 1.4 V p-p to 2.0 V p-p (1.75 V p-p nominal)
Differential analog inputs with 400 MHz bandwidth
95 dB channel isolation/crosstalk
Serial port control
Energy saving power-down modes

Part details & applications

The AD6643 is an 11-bit, 200 MSPS/250 MSPS, dual-channel intermediate frequency (IF) receiver specifically designed to support multi-antenna systems in telecommunication applications where high dynamic range performance, low power, and small size are desired.

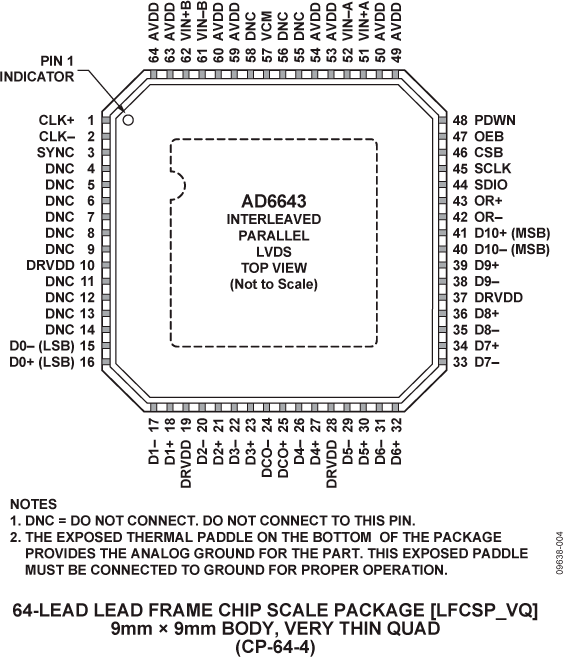

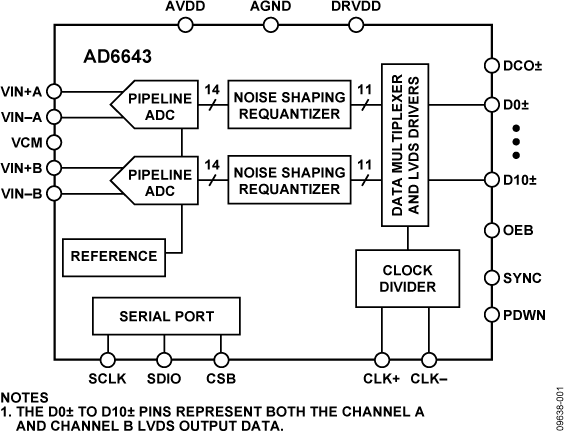

The device consists of two high performance analog-to-digital converters (ADCs) and noise shaping requantizer (NSR) digital blocks. Each ADC consists of a multistage, differential pipelined architecture with integrated output error correction logic, and each ADC features a wide bandwidth switched capacitor sampling network within the first stage of the differential pipeline. An integrated voltage reference eases design considerations. A duty cycle stabilizer (DCS) compensates for variations in the ADC clock duty cycle, allowing the converters to maintain excellent performance.

Each ADC output is connected internally to an NSR block. The integrated NSR circuitry allows for improved SNR performance in a smaller frequency band within the Nyquist bandwidth. The device supports two different output modes selectable via the SPI. With the NSR feature enabled, the outputs of the ADCs are processed such that the AD6643 supports enhanced SNR performance within a limited portion of the Nyquist bandwidth while maintaining an 11-bit output resolution.

The NSR block can be programmed to provide a bandwidth of either 22% or 33% of the sample clock. For example, with a sample clock rate of 185 MSPS, the AD6643 can achieve up to 75.5 dBFS SNR for a 40 MHz bandwidth in the 22% mode and up to 73.7 dBFS SNR for a 60 MHz bandwidth in the 33% mode.

When the NSR block is disabled, the ADC data is provided directly to the output at a resolution of 11 bits. The AD6643 can achieve up to 66.5 dBFS SNR for the entire Nyquist bandwidth when operated in this mode. This allows the AD6643 to be used in telecommunication applications such as a digital predistortion obs
