Analog Devices LTM9012 Product Info

• 4-Channel Simultaneous Sampling ADC with Integrated, Fixed Gain, Differential Drivers

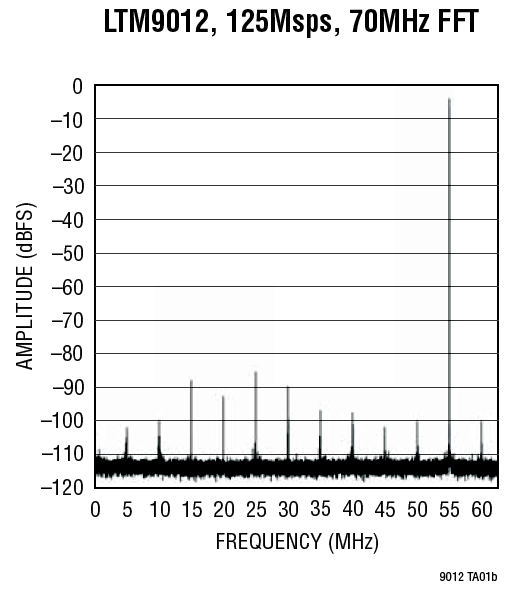

• 68.3dB SNR
• 78dB SFDR
• Low Power: 1.27W Total, 318mW per Channel
• 1.8V ADC Core and 3.3V Analog Input Supply
• Serial LVDS Outputs: 1 or 2 Bits per Channel
• Shutdown and Nap Modes

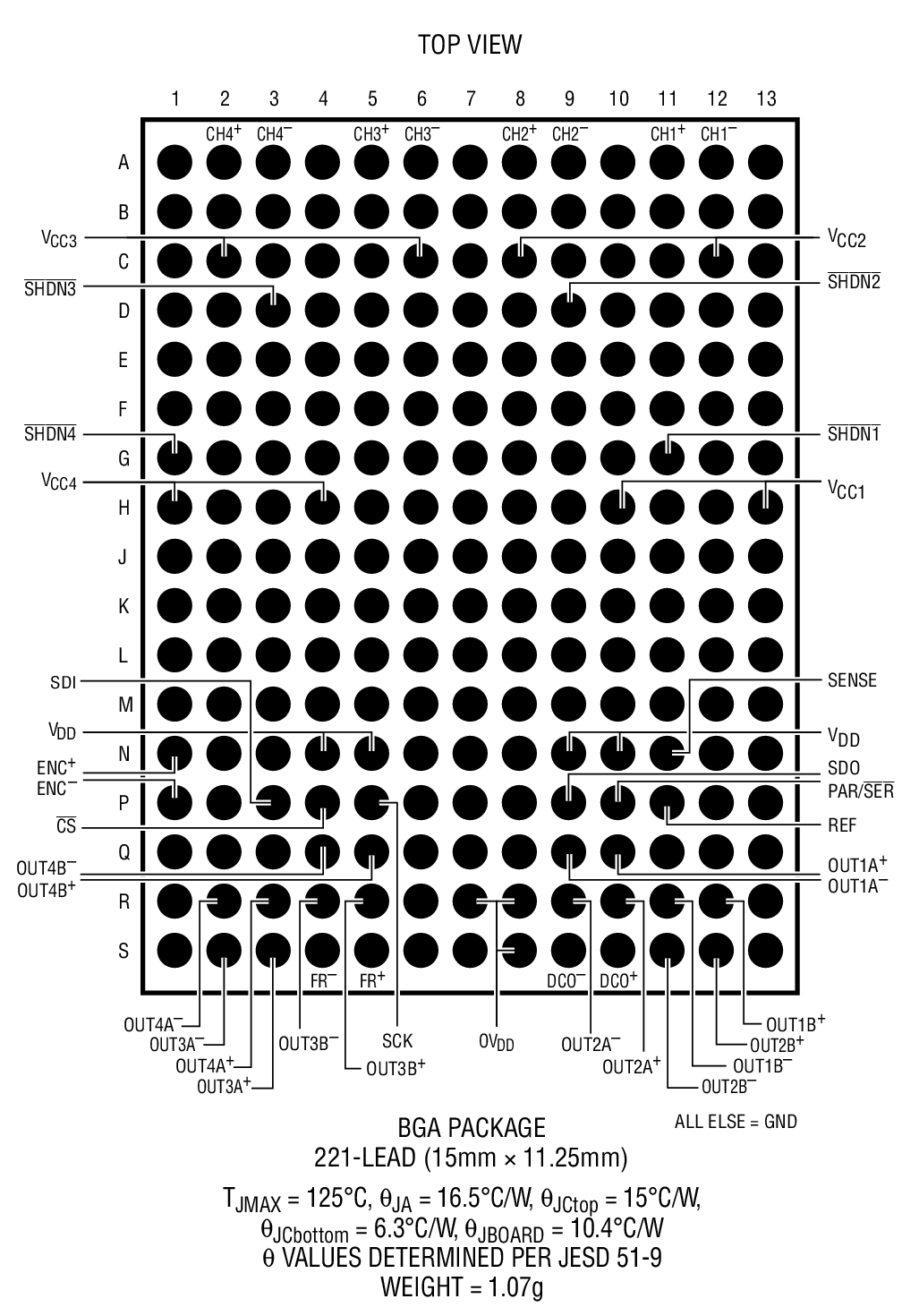

• 11.25mm × 15mm BGA Package

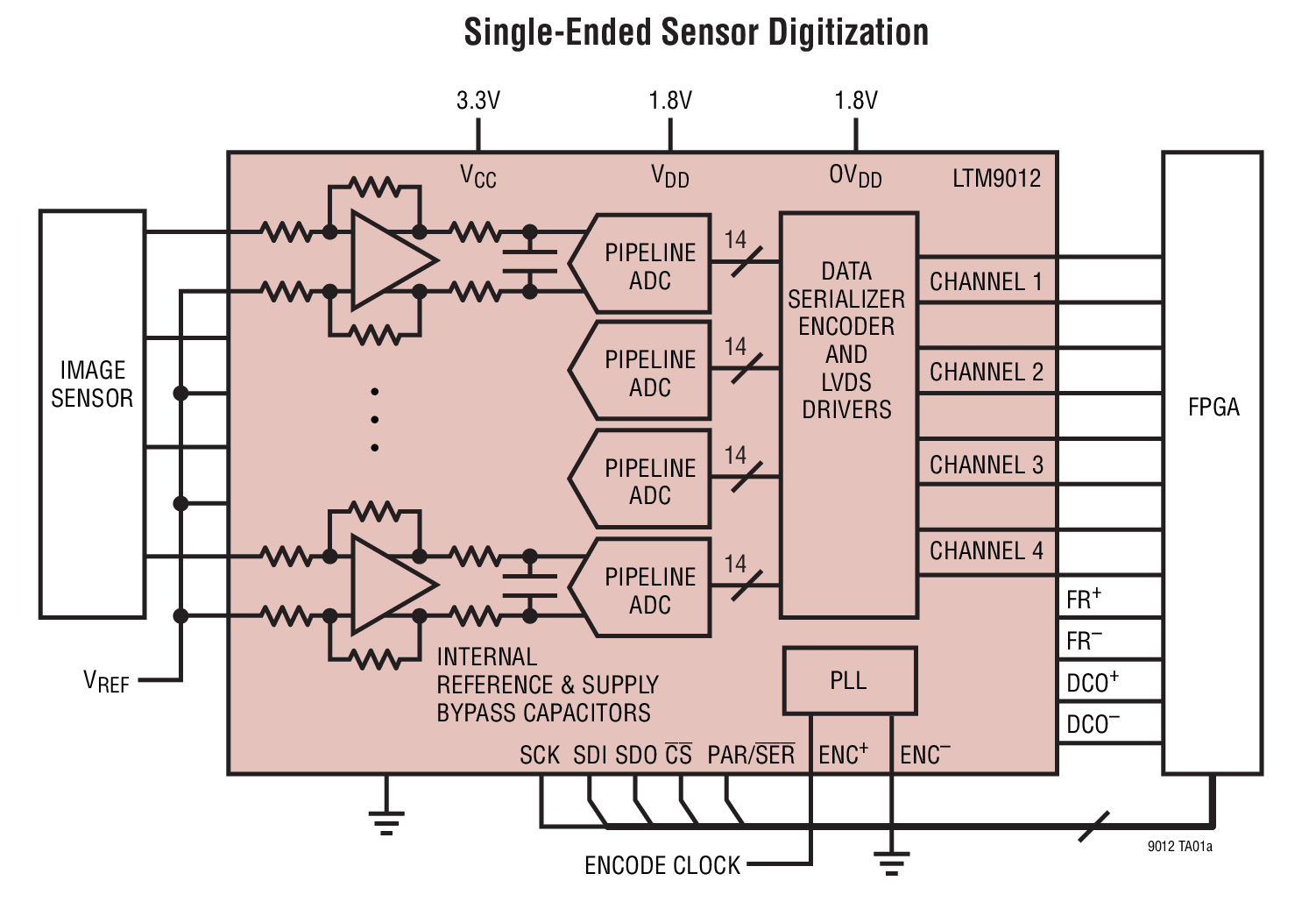

The LTM9012 is a 4-channel, simultaneous sampling 14-bit μModule^® analog-to-digital converter (ADC) with integrated, fixed gain, differential ADC drivers. The low noise amplifiers are suitable for single-ended drive and pulse train signals such as imaging applications. Each channel includes a lowpass filter between the driver output and ADC input.

DC specs include ±1.2LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1.2LSB_RMS.

The digital outputs are serial LVDS and each channel outputs two bits at a time (2-lane mode). At lower sampling rates there is a one bit option (1-lane mode). The LVDS drivers have optional internal termination and adjustable output levels to ensure clean signal integrity.

The ENC⁺ and ENC^– inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

Applications

• Industrial Imaging
• Medical Imaging
• Multichannel Data Acquisition
• Nondestructive Testing
