Analog Devices LTC3869 Product Info

• Dual, 180° Phased Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
• Accurate Multiphase Current Matching
• R_SENSE or DCR Current Sensing
• ±0.75% 0.6V Output Voltage Accuracy
• Phase-Lockable Fixed Frequency 250kHz to 780kHz

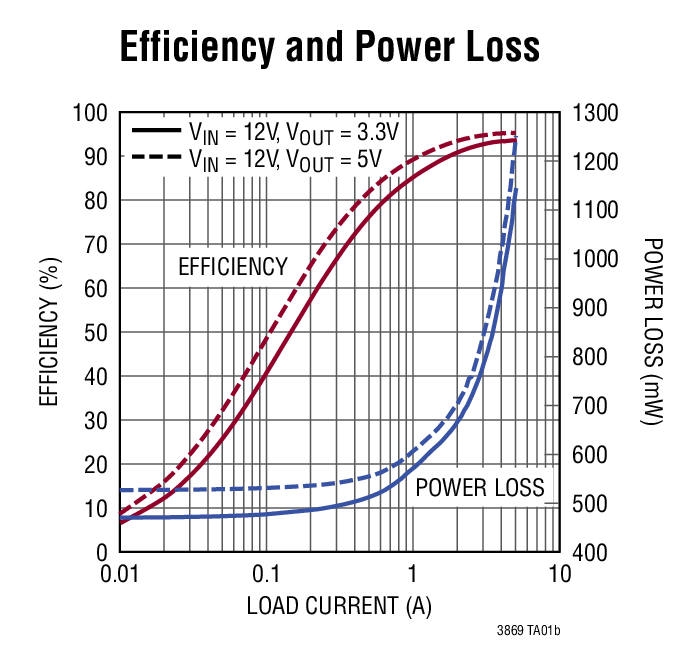

• High Efficiency: Up to 95%
• Dual N-channel MOSFET Synchronous Drive
• Wide V_IN Range: 4V to 38V (40V Max) Operation
• Wide V_OUT Range: 0.6V to 12.5V Operation
• Adjustable Soft-Start Current Ramping or Tracking
• Foldback Output Current Limiting
• Output Overvoltage Protection
• Power Good Output Voltage Monitor
• 5V Low Dropout Regulator
• Small 28-Lead QFN and Narrow SSOP Packages

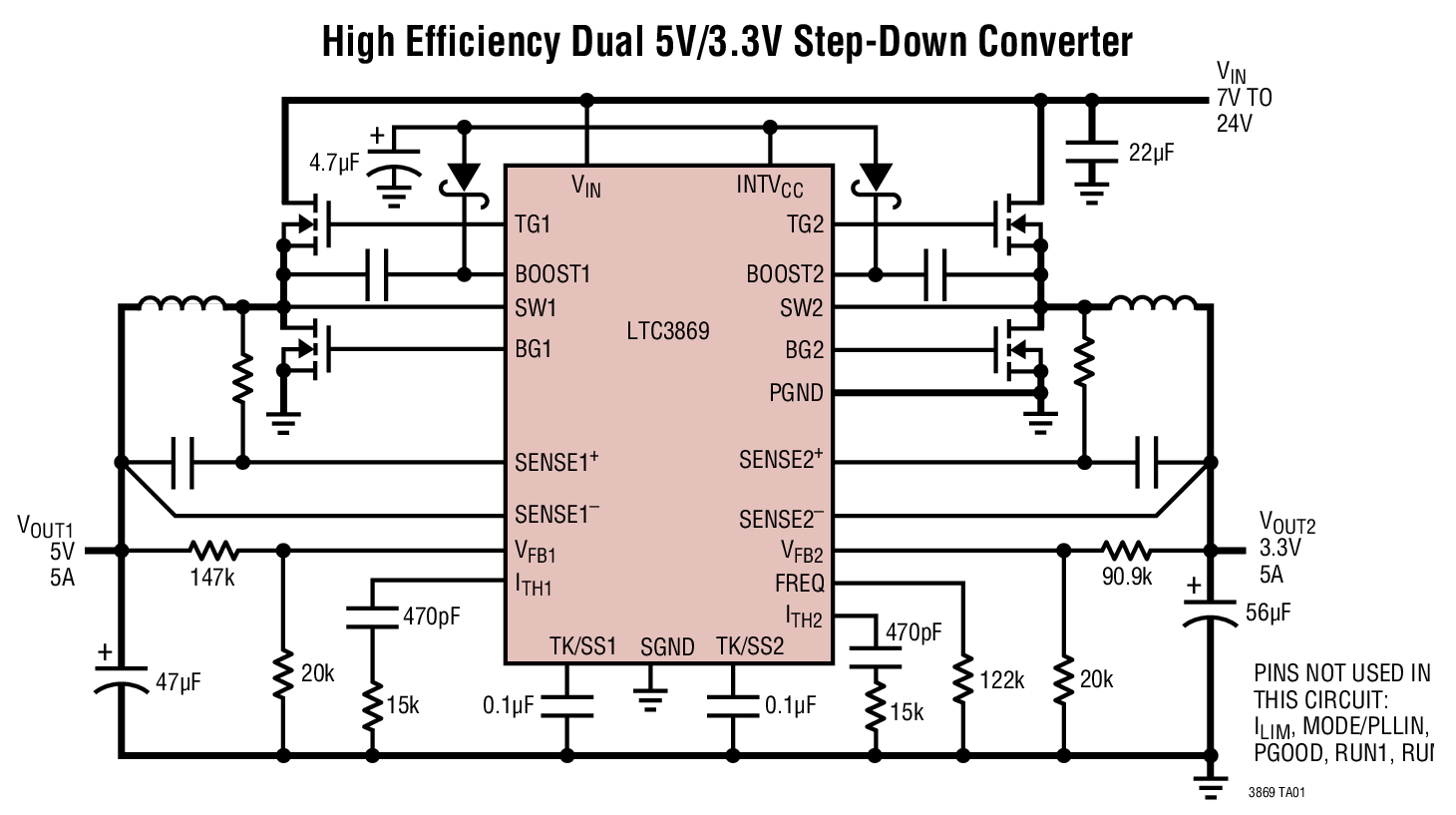

The LTC3869 is a high performance dual synchronous step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 780kHz. Power loss and noise due to the ESR of the input capacitors are minimized by operating the two controller output stages out-of-phase.

OPTI-LOOP^® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. A wide 4V to 38V input supply range encompasses most battery chemistries. Independent TK/SS pins for each controller ramp the output voltage during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The MODE/PLLIN pin selects among Burst Mode^® operation, pulse-skipping mode, or continuous inductor current mode and allows the IC to be synchronized to an external clock.

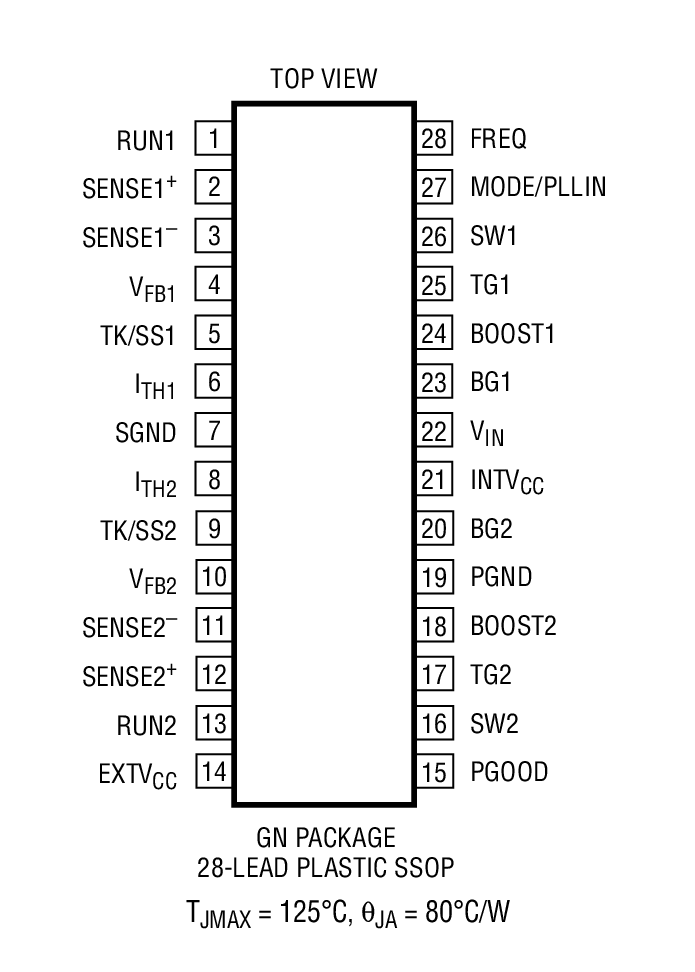

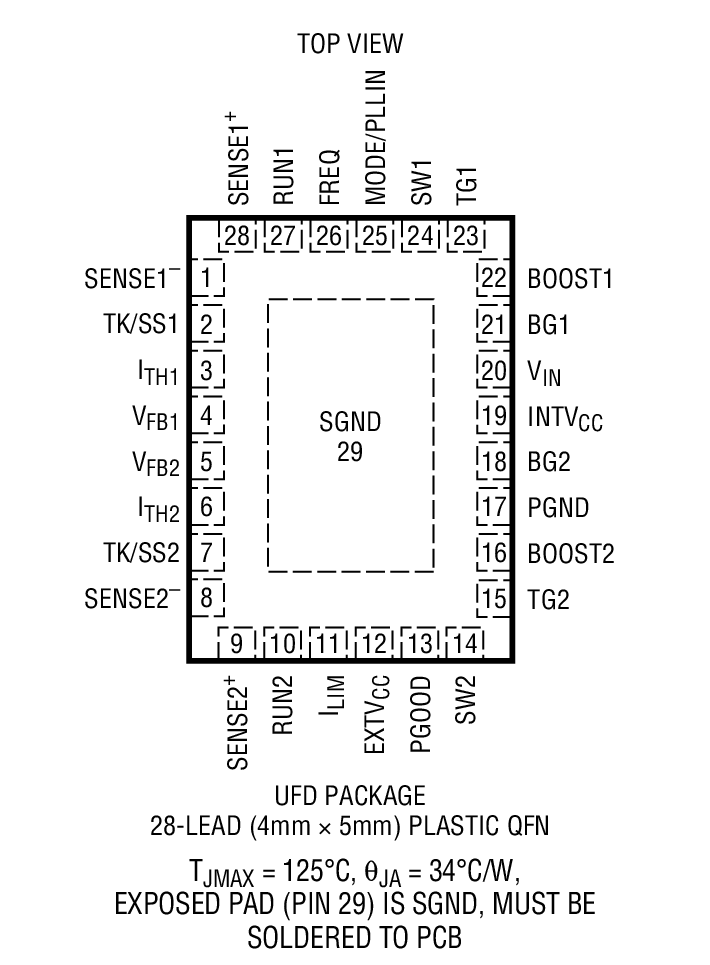

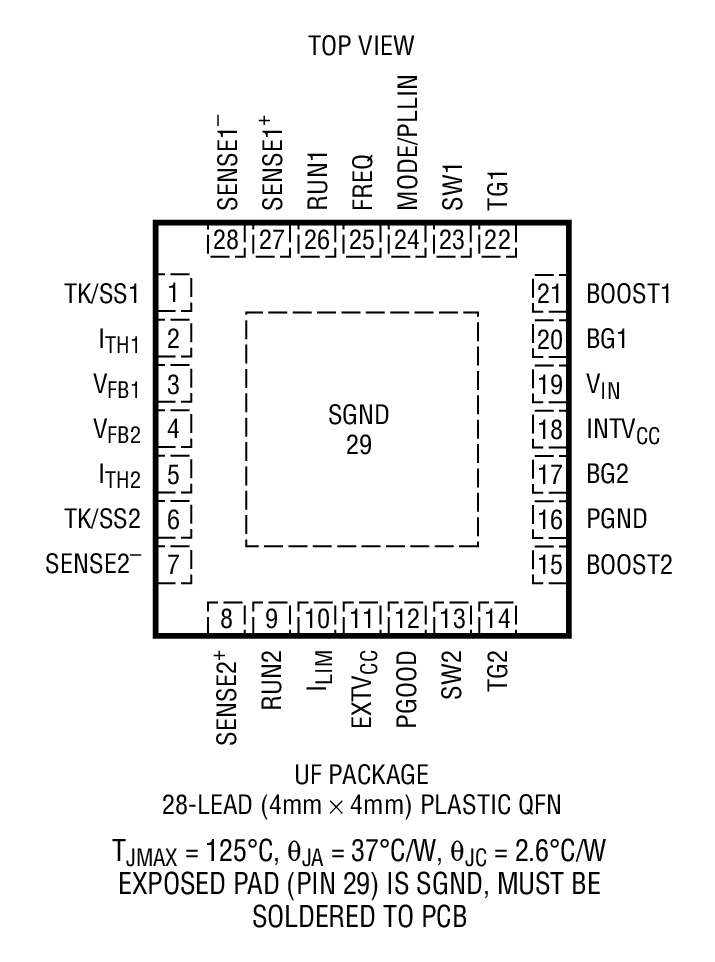

The LTC3869 is available in low profile 4mm × 4mm and 4mm × 5mm QFN packages. The LTC3869-2 is available in an SSOP-28 package. The LTC3869 is pin-compatible with the LTC3850.

Applications

• Server Systems
• Telecom Systems
• Industrial and Medical Instruments
• High Power Battery-Operated Devices
• DC Power Distribution Systems
