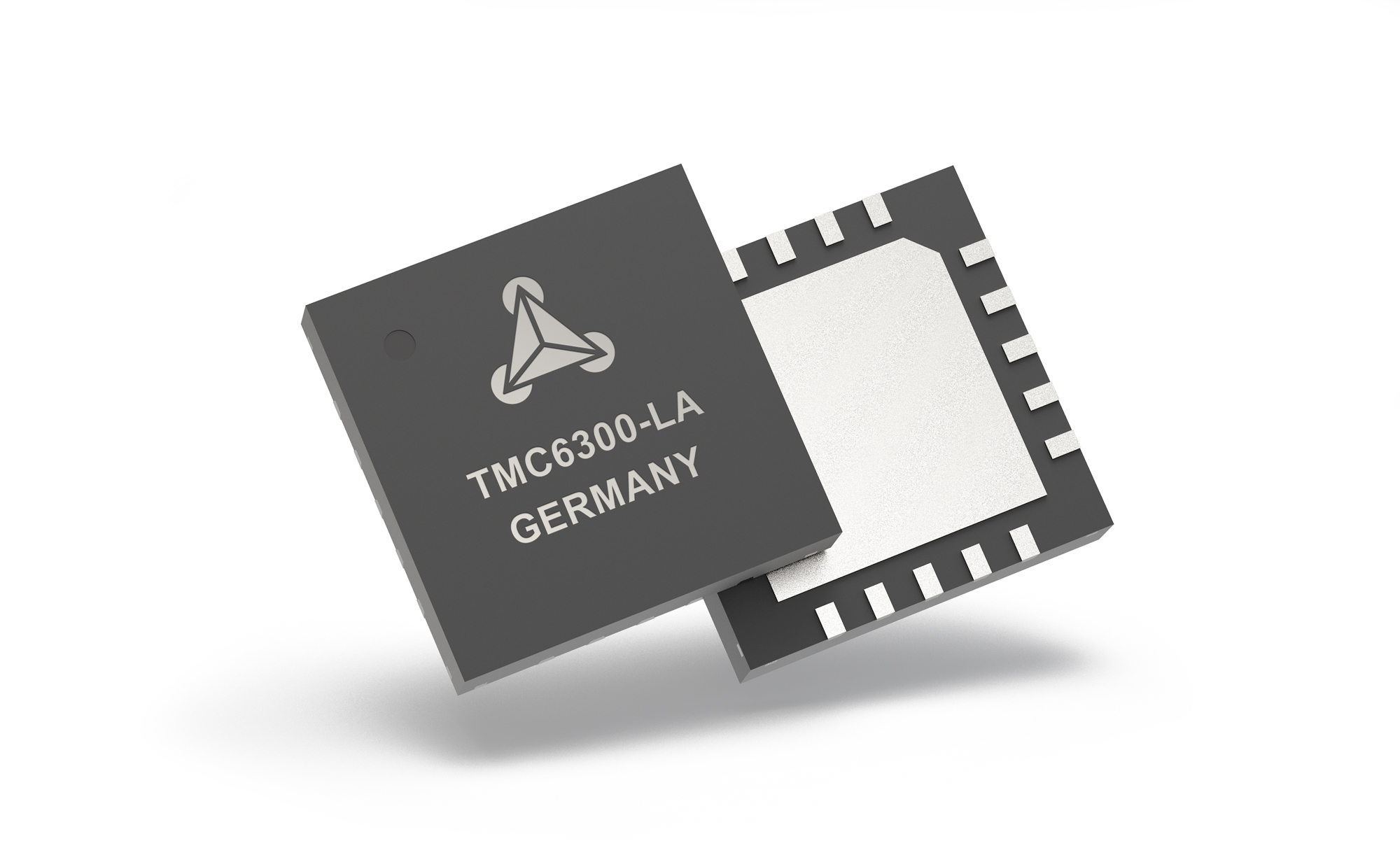

TMC6300

RECOMMENDED FOR NEW DESIGNS

Highly Efficient Low Voltage, Zero Standby Current Driver for 3-Phase BLDC/PMSM Motors up to 2A peak, Triple Half-Bridge with separate HS and LS control signals

Analog Devices TMC6300 Product Info

10 February 2026 4

Features

Voltage Range 2V (1.8V) to 11V DC
Battery Operation 1-2 Li-Ion cells, or min. 2 AA / NiMh cells
3-Phase motors up to 2A (peak)
Direct Bridge control for BLDC or PMSM sine-commutation

Standby <50nA typ. current draw
Low RDSon LS 170mΩ & HS 170mΩ (typ.)
Full Protection & Diagnostics output

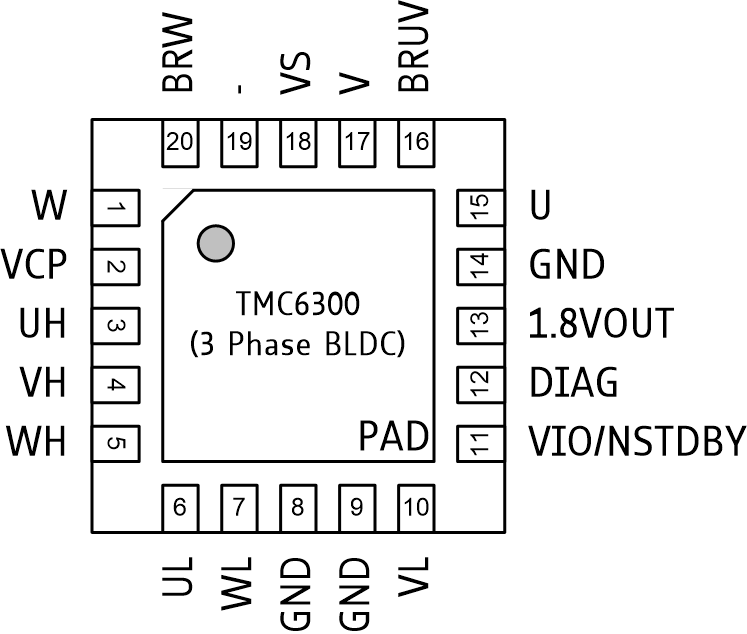

Tiny of QFN 3*3 with 20 pins

Part details & applications

Working from a single Li-Ion cell or dual AA batteries the TMC6300 is optimally suited for battery operated equipment. Operate a BLDC motor with block or sinecommutation using 6-line control from a CPU. Integrated power-MOSFETs handle motor current up to 2A. Protection and diagnostic features support robust and reliable operation. Its integrated chargepump for best-in-class RDSon and ultra-low standby current ensure best efficiency even at low supply voltage and longest battery life.
