LTC3812-5

PRODUCTION

60V Current Mode Synchronous Switching Regulator Controller

Analog Devices LTC3812-5 Product Info

10 February 2026 6

Features

  • High Voltage Operation: Up to 60V
  • Large 1Ω Gate Drivers
  • No Current Sense Resistor Required
  • Dual N-Channel MOSFET Synchronous Drive
  • Extremely Fast Transient Response
  • ±0.5% 0.8V Voltage Reference
  • Programmable Soft-Start
  • Generates 5.5V Driver Supply
  • Selectable Pulse-Skipping Mode Operation
  • Power Good Output Voltage Monitor
  • Adjustable On-Time/Frequency: tON(MIN) < 100ns
  • Adjustable Cycle-by-Cycle Current Limit
  • Undervoltage Lockout On Driver Supply
  • Output Overvoltage Protection

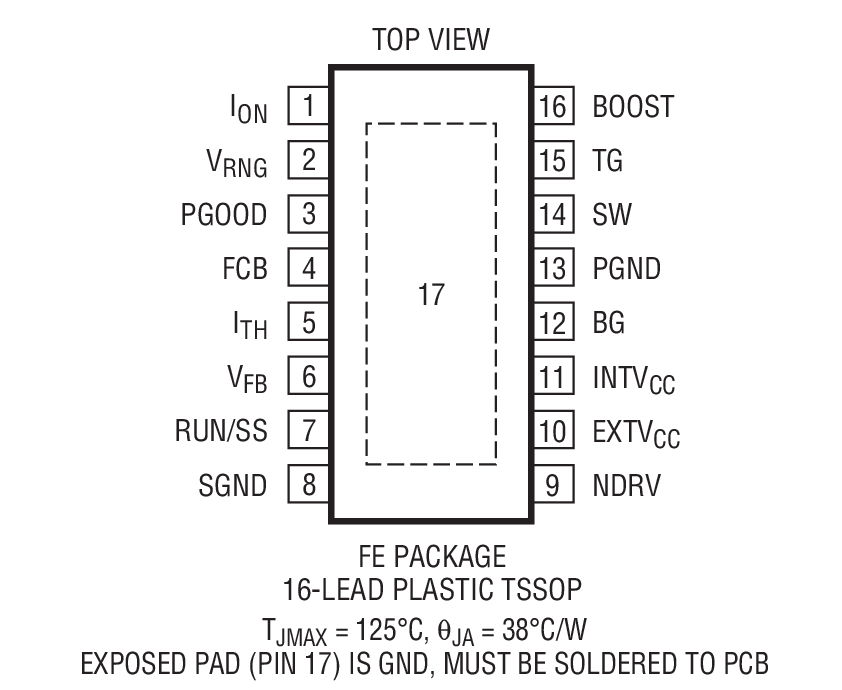

  • Thermally Enhanced 16-Pin TSSOP Package

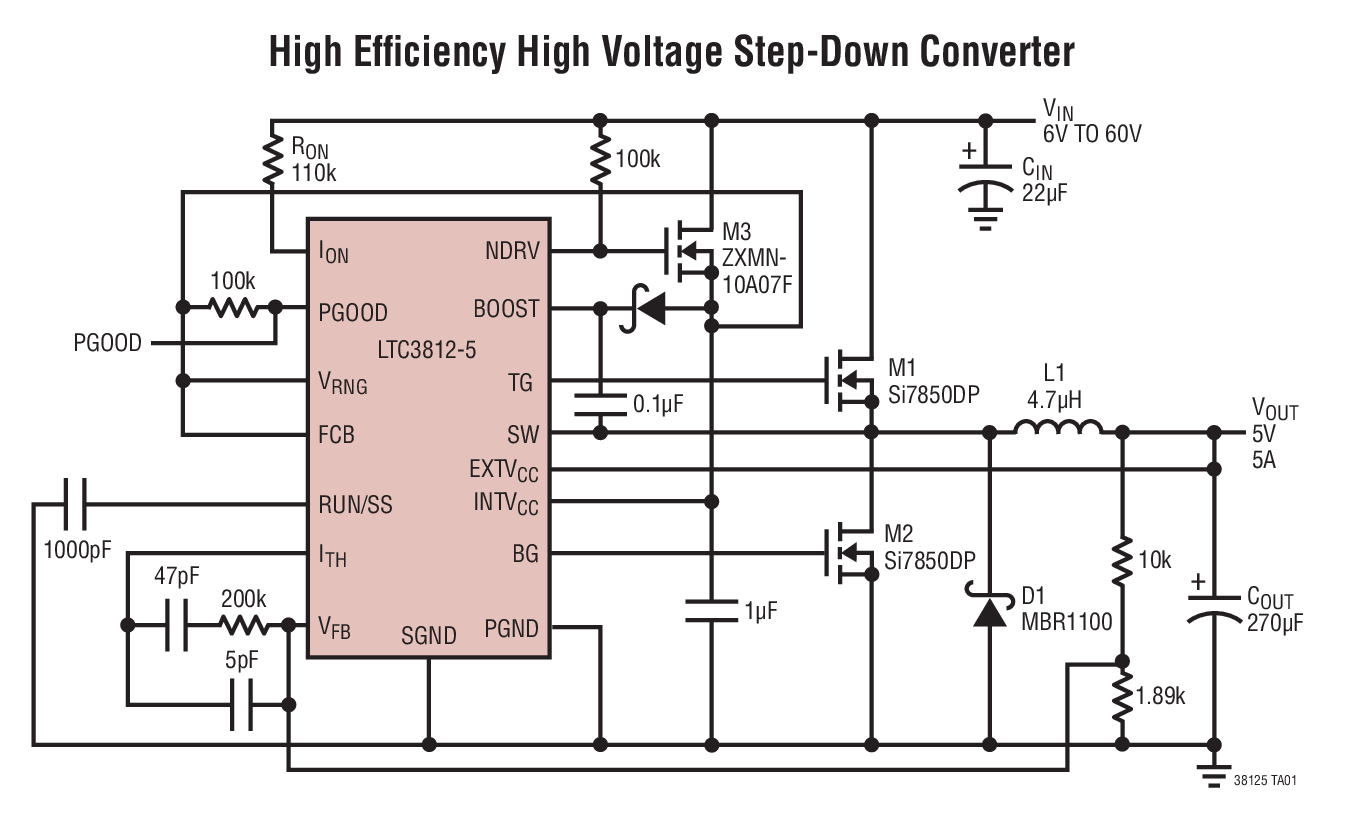

The LTC3812-5 is a synchronous step-down switching regulator controller that can directly step down voltages from up to 60V input, making it ideal for telecom and automotive applications. The LTC3812-5 uses a constant on-time valley current control architecture to deliver very low duty cycles with accurate cycle-by-cycle current limit without requiring a sense resistor.

A precise internal reference provides 0.5% DC accuracy. A high bandwidth (25MHz) error amplifier provides very fast line and load transient response. Large 1Ω gate drivers allow the LTC3812-5 to drive large power MOSFETs for higher current applications. The operating frequency is selected by an external resistor and is compensated for variations in VIN. A shutdown pin allows the LTC3812-5 to be turned off reducing the supply current to <230μA.

Integrated

Part details & applications

The LTC3812-5 is a synchronous step-down switching regulator controller that can directly step down voltages from up to 60V input, making it ideal for telecom and automotive applications. The LTC3812-5 uses a constant on-time valley current control architecture to deliver very low duty cycles with accurate cycle-by-cycle current limit without requiring a sense resistor.

A precise internal reference provides 0.5% DC accuracy. A high bandwidth (25MHz) error amplifier provides very fast line and load transient response. Large 1Ω gate drivers allow the LTC3812-5 to drive large power MOSFETs for higher current applications. The operating frequency is selected by an external resistor and is compensated for variations in VIN. A shutdown pin allows the LTC3812-5 to be turned off reducing the supply current to <230μA.

Integrated bias control generates gate drive power from the input supply during start-up and when an output short-circuit occurs, with the addition of a small external SOT23 MOSFET. When in regulation, power is derived from the output for higher efficiency.


 Features Adj UVLO, Sync & Tracking Package
LTC3810 Vin 6.2V to 100V, 10V Driver Voltage Yes
