Analog Devices LTM8073 Product Info

• Complete Step-Down Switch Mode Power Supply
• Low Noise Silent Switcher^® Architecture
• Wide Input Voltage Range: 3.4V to 60V
• Wide Output Voltage Range: 0.8V to 15V
• 3A Continuous Output Current, 5A Peak
• Parallelable for Increased Output Current
• Selectable Switching Frequency: 200kHz to 3MHz
• Programmable Soft-Start

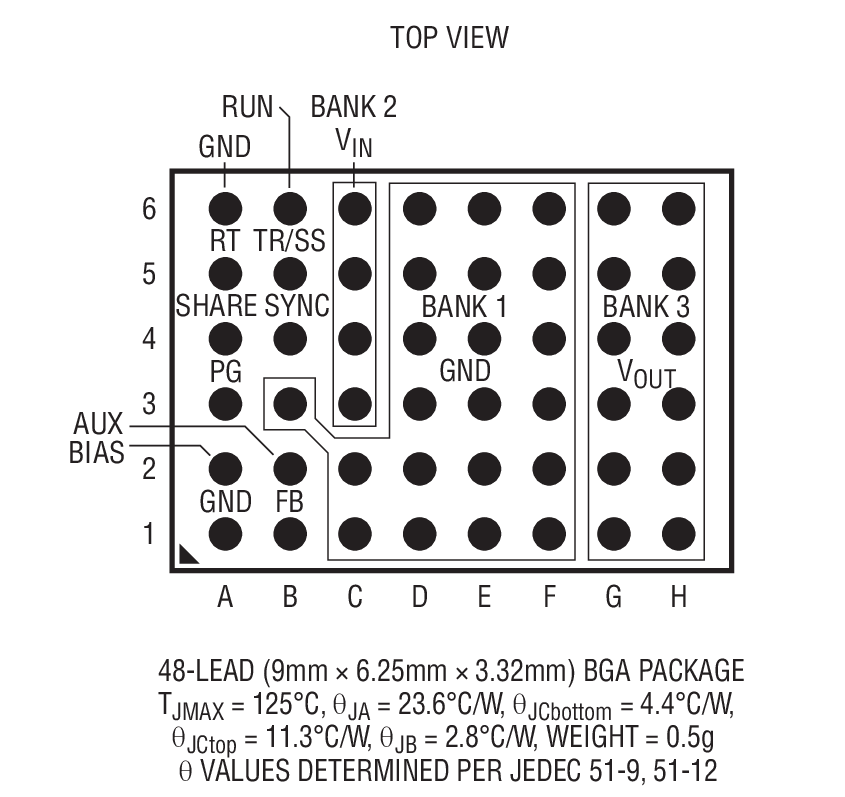

• 6.25mm × 9mm × 3.32mm BGA Package

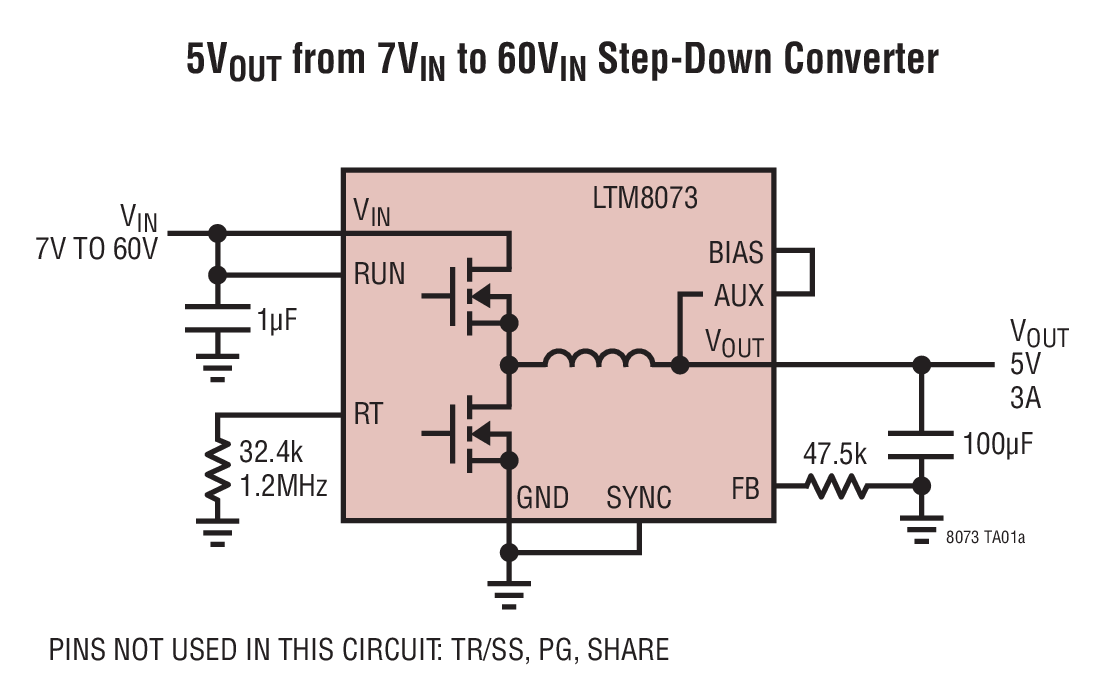

The LTM8073 is a 60V_IN, 3A (continuous) or 5A (peak) step-down Silent Switcher μModule^® (power module) regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.4V to 60V, the LTM8073 supports an output voltage range of 0.8V to 15V and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the input and output filter capacitors are needed to finish the design.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8073 is packaged in a thermally enhanced, compact over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8073 is RoHS compliant.

Applications

• Power for Portable Products
• Distributed Supply Regulation
• Industrial Supplies
• Wall Transformer Regulation
