Analog Devices LTC2997 Product Info

• Converts Remote Sensor or Internal Diode
• Temperature to Analog Voltage
• ±1°C Remote Temperature Accuracy
• ±1.5°C Internal Temperature Accuracy
• Built-In Series Resistance Cancellation
• 2.5V to 5.5V Supply Voltage
• 1.8V Reference Voltage Output
• 3.5ms V_PTAT Update Time

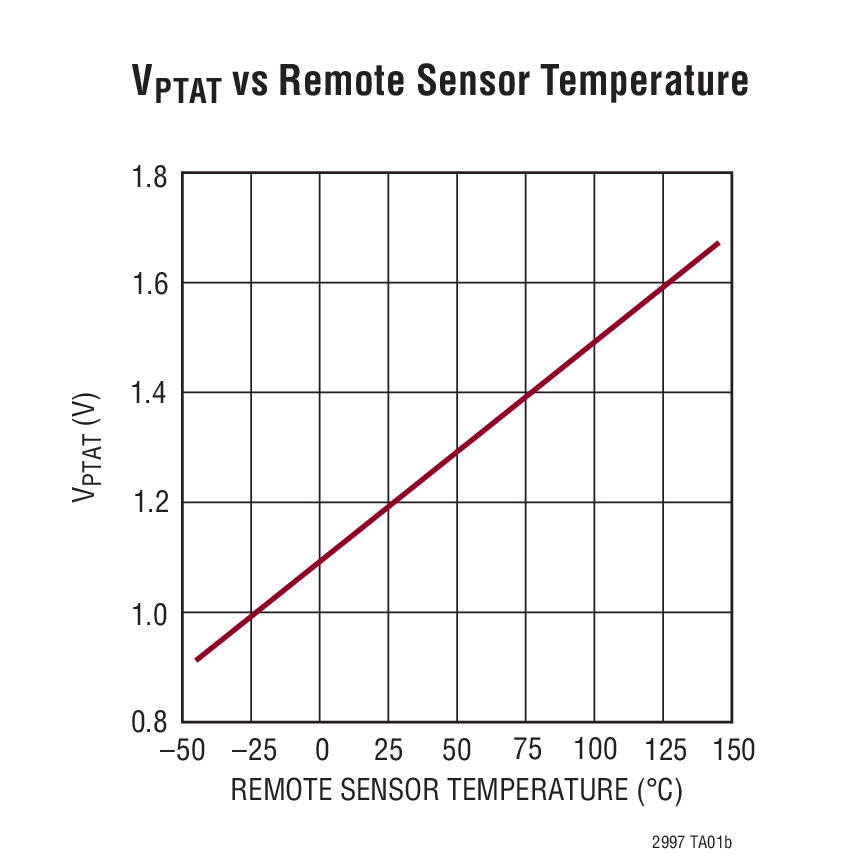

• 4mV/°K Output Gain
• 170μA Quiescent Current

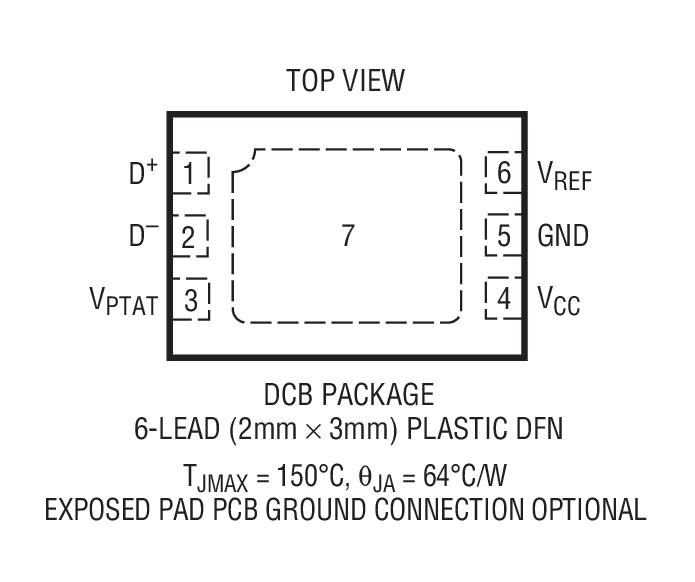

• Available in 6-Pin 2mm × 3mm DFN Package

The LTC2997 is a high-accuracy analog output temperature sensor. It converts the temperature of an external sensor or its own temperature to an analog voltage output. A built-in algorithm eliminates errors due to series resistance between the LTC2997 and the sensor diode.

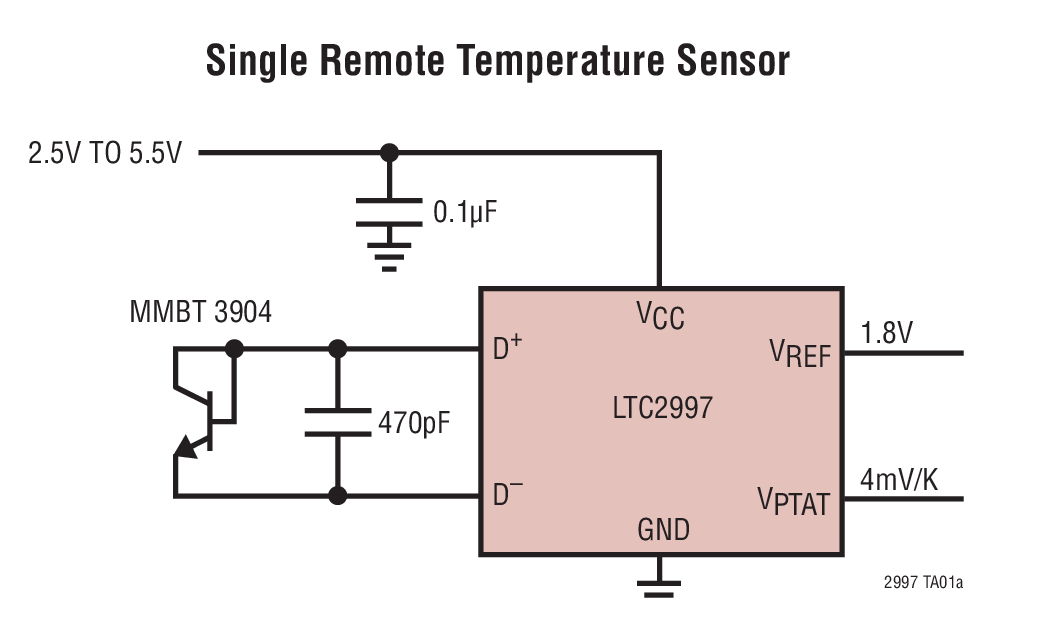

The LTC2997 gives accurate results with low-cost diodeconnected NPN or PNP transistors or with integrated temperature transistors on microprocessors or FPGAs. Tying pin D+ to V_CC configures the LTC2997 to measure its internal temperature.

The LTC2997 provides an additional 1.8V reference voltage output which can be used as an ADC reference input or for generating temperature threshold voltages to compare against the V_PTAT output.

The LTC2997 provides a precise and versatile micropower solution for accurate temperature sensing.

Applications

• Temperature Measurement
• Remote Temperature Measurement
• Environmental Monitoring
• System Thermal Control
• Desktop and Notebook Computers
• Network Servers
