Analog Devices LTC2631 Product Info

• Integrated Precision Reference

  • 2.5V Full-Scale 10ppm/°C (LTC2631-L)
  • 4.096V Full-Scale 10ppm/°C (LTC2631-H)

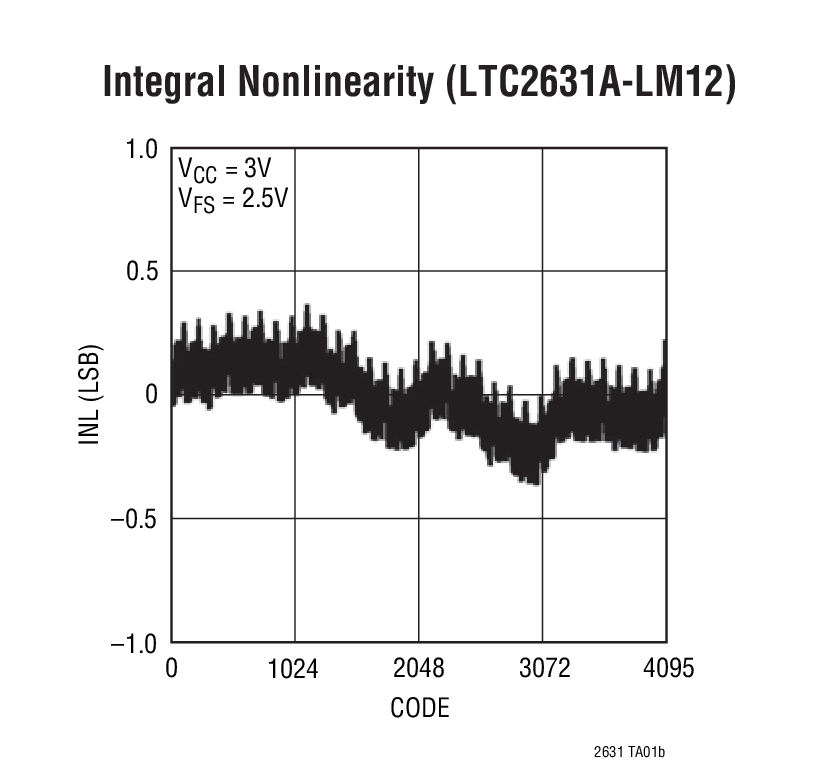

• Maximum INL Error: 1LSB (LTC2631A-12)
• Bidirectional Reference: Input or 10ppm/°C Output
• 400kHz I²C Interface

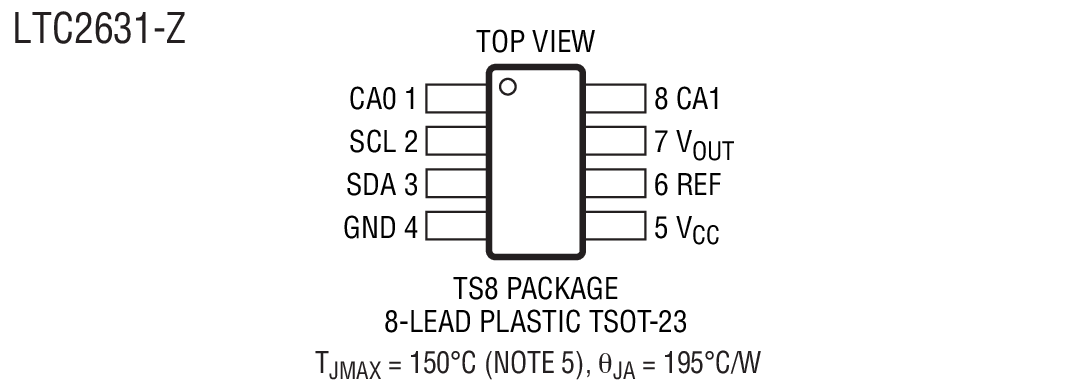

• Nine Selectable Addresses (LTC2631-Z)
• Low Noise (0.7mV_P-P , 0.1Hz to 200kHz)
• Guaranteed Monotonic Over Temperature
• 2.7V to 5.5V Supply Range (LTC2631-L)
• Low Power Operation: 180μA at 3V
• Power Down to 1.8μA Maximum (C and I Grades)
• Power-On Reset to Zero or Mid-Scale Options
• Double-Buffered Data Latches
• Guaranteed Operation From –40°C to 125°C (H-Grade)

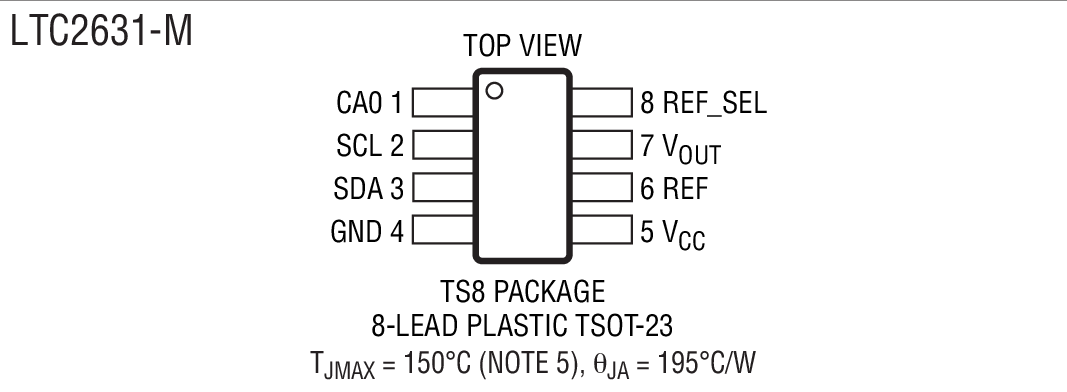

• 8-Lead TSOT-23 (ThinSOT^™) Package

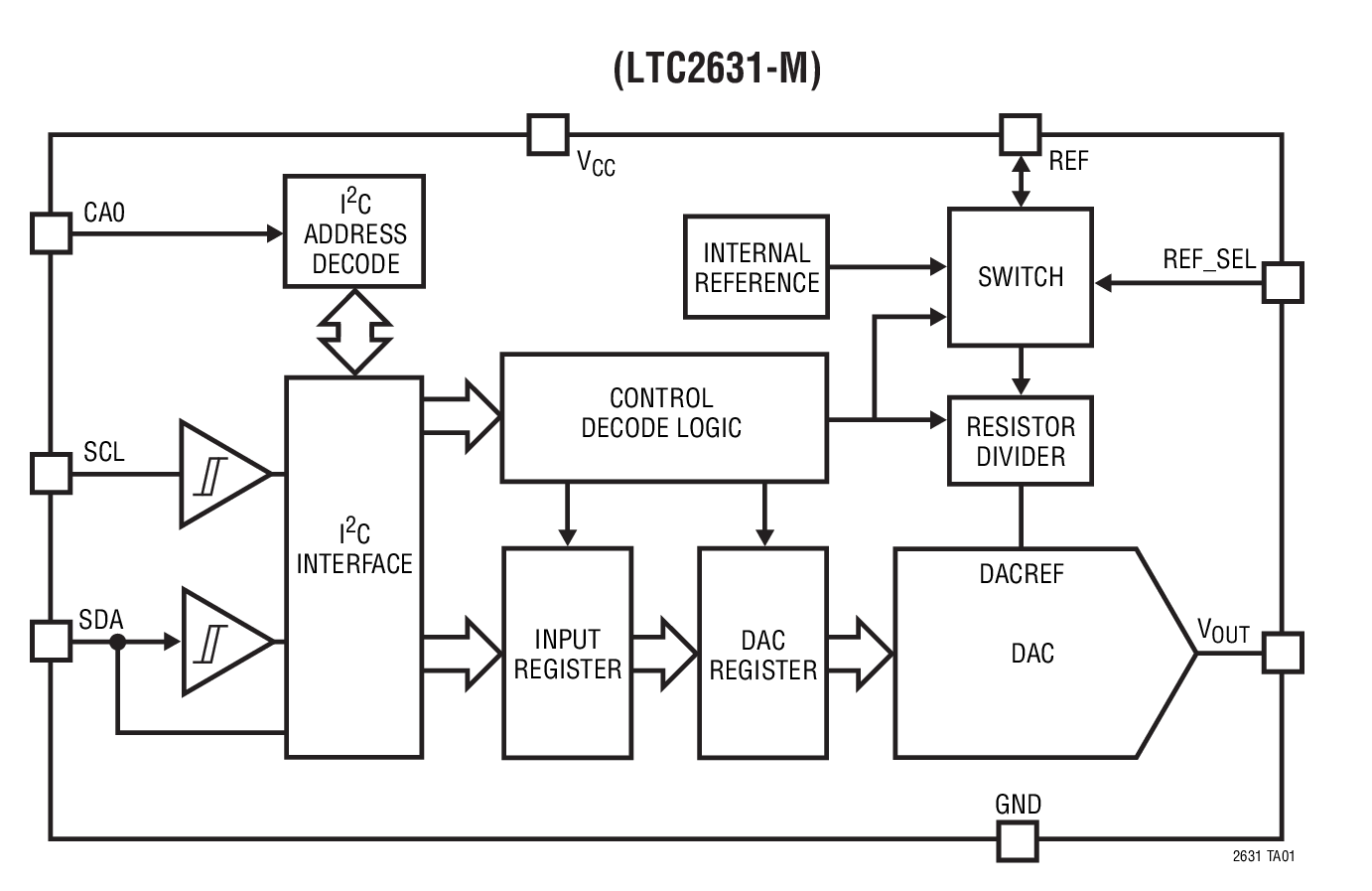

The LTC2631 is a family of 12-, 10-, and 8-bit voltage-output DACs with an integrated, high accuracy, low-drift reference in an 8-lead TSOT-23 package. It has a rail-to-rail output buffer that is guaranteed monotonic.

The LTC2631-L has a full-scale output of 2.5V, and operates from a single 2.7V to 5.5V supply. The LTC2631-H has a full-scale output of 4.096V, and operates from a 4.5V to 5.5V supply. A 10ppm/°C reference output is available at the REF pin.

Each DAC can also operate in External Reference mode, in which a voltage supplied to the REF pin sets the fullscale output.

The LTC2631 DACs use a 2-wire, I²C-compatible serial interface. The LTC2631 operates in both the standard mode (clock rate of 100kHz) and the fast mode (clock rate of 400kHz).

The LTC2631 incorporates a power-on reset circuit. Options are available for reset to zero-scale or reset to mid-scale after power-up.

Applications

• Mobile Communications
• Process Control and Industrial Automation
• Automatic Test Equipment
• Portable Equipment
• Automotive
• Optical Networking
