Analog Devices LTC2494 Product Info

• Up to 8 Differential or 16 Single-Ended Inputs
• Easy Drive^™ Technology Enables Rail-to-Rail Inputs with Zero Differential Input Current
• Directly Digitizes High Impedance Sensors with Full Accuracy
• 600nV_RMS Noise
• Programmable Gain from 1 to 256
• Integrated High Accuracy Temperature Sensor
• GND to V_CC Input/Reference Common Mode Range
• Programmable 50Hz, 60Hz or Simultaneous 50Hz/60Hz Rejection Mode
• 2ppm INL, No Missing Codes
• 1ppm Offset and 15ppm Full-Scale Error
• 2x Speed Mode/Reduced Power Mode (15Hz Using Internal Oscillator and 80μA at 7.5Hz Output)
• No Latency: Digital Filter Settles in a Single Cycle, Even After a New Channel Is Selected
• Single-Supply 2.7V to 5.5V Operation
• Internal Oscillator

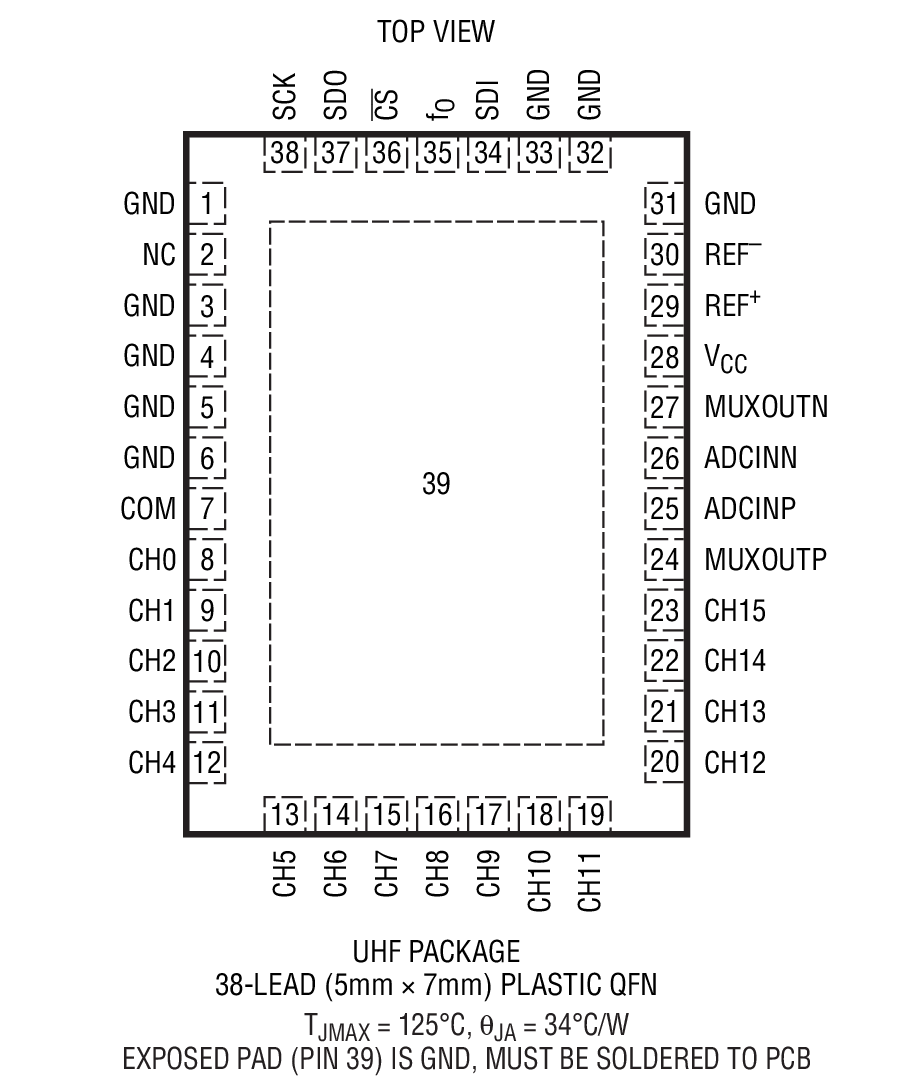

• Tiny 5mm × 7mm QFN Package

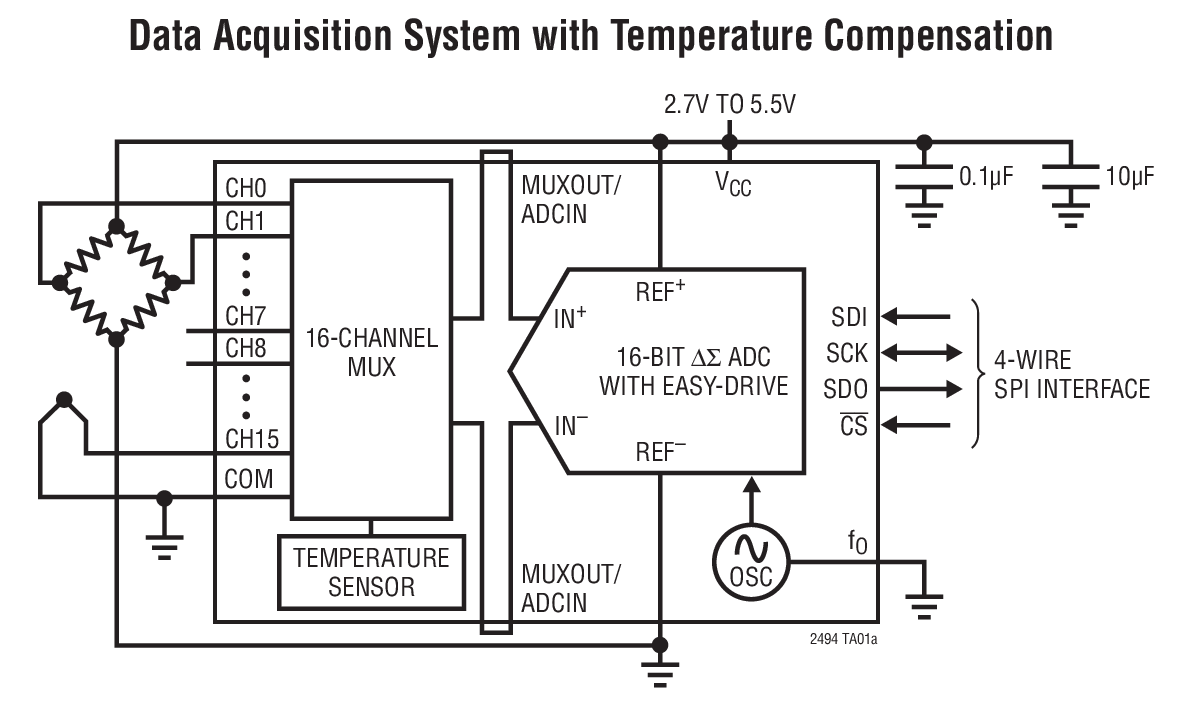

The LTC2494 is a 16-channel (8-differential), 16-bit, No Latency ΔΣ^™ ADC with Easy Drive technology. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances, and rail-to-rail input signals to be directly digitized while maintaining exceptional DC accuracy.

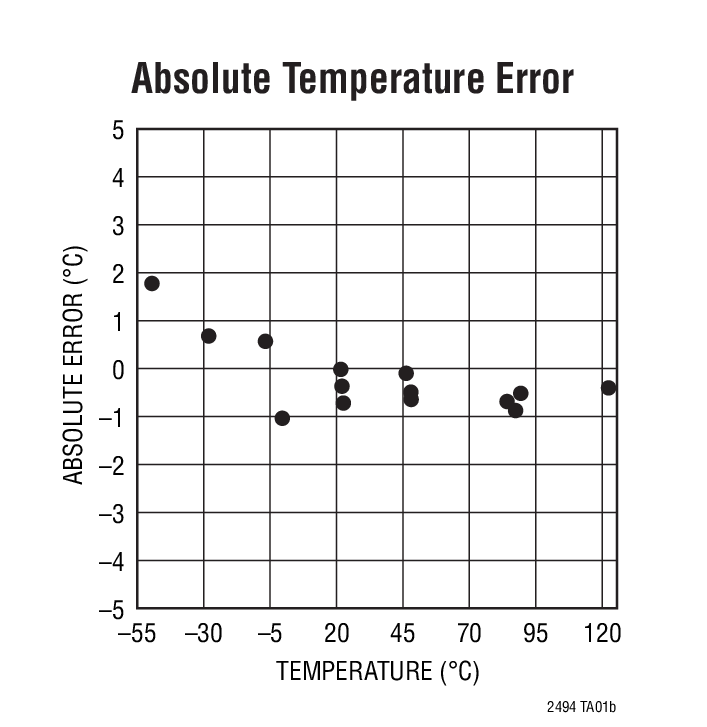

The LTC2494 includes programmable gain, a high accuracy temperature sensor and an integrated oscillator. This device can be configured to measure an external signal (from combinations of 16 analog input channels operating in single-ended or differential modes) or its internal temperature sensor. The integrated temperature sensor offers 1/2°C resolution and 2°C absolute accuracy. The LTC2494 can be configured to provide a programmable gain from 1 to 256 in 8 steps.

The LTC2494 allows a wide common mode input range (0V to V_CC), independent of the reference voltage. Any combination of single-ended or differential inputs can be selected and the first conversion, after a new channel is selected, is valid.

Applications

• Direct Sensor Digitizer
• Direct Temperature Measurement
• Instrumentation
• Industrial Process Control
