Analog Devices Inc.
0
PRODUCTION

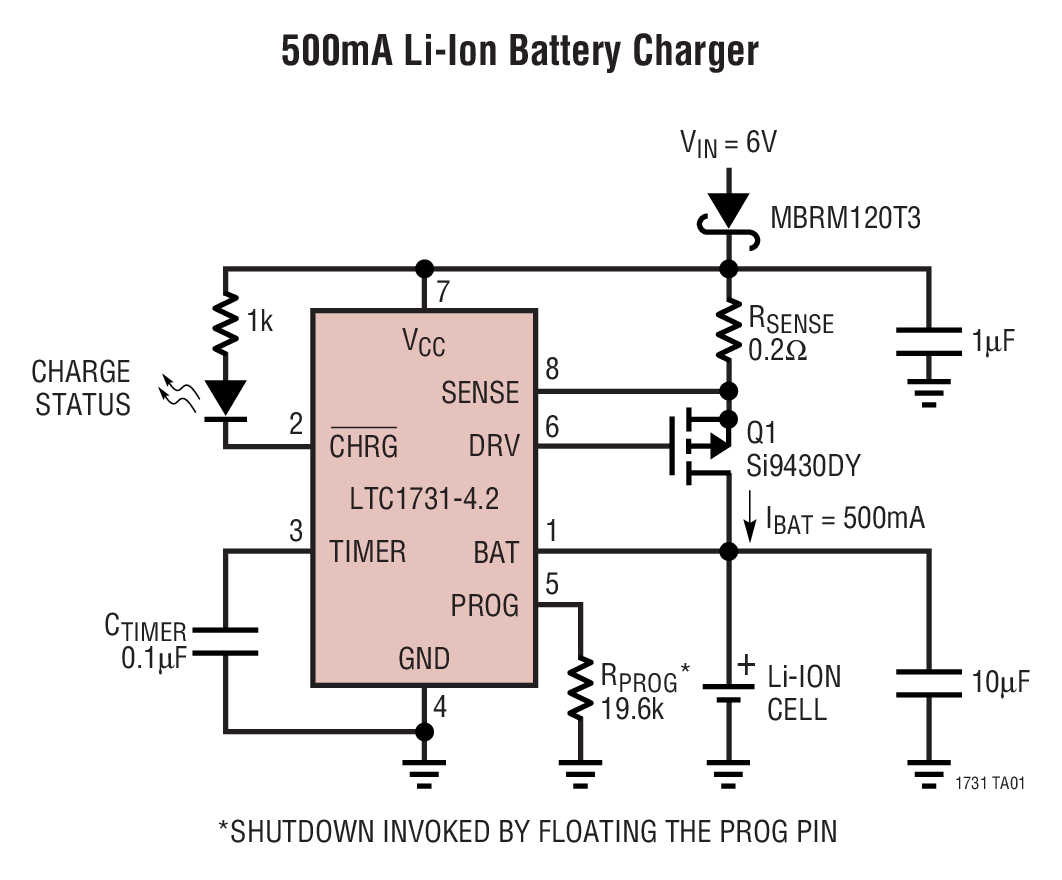

The LTC1731 is a complete constant-current/constant-voltage linear charger controller for single cell lithium-ion batteries. Nickel-cadmium (NiCd) and nickel-metal-hydride (NiMH) batteries can also be charged with constant current using external termination. The external sense resistor sets the charge current with 5% accuracy. An internal resistor divider and precision reference set the final float potential with ±1% accuracy. The output float voltage is set internally to 4.1V (LTC1731-4.1) or 4.2V (LTC1731-4.2).
When the input supply is removed,the LTC1731 automatically enters a low current sleep mode, dropping the battery drain current to typically 7µA. An internal comparator detects the end-of-charge (C/10) condition while a programmable timer, using an external capacitor, sets the total charge time. Fully discharged cells are automatically trickle charged at 10% of the programmed current until cell voltage exceeds 2.457V.

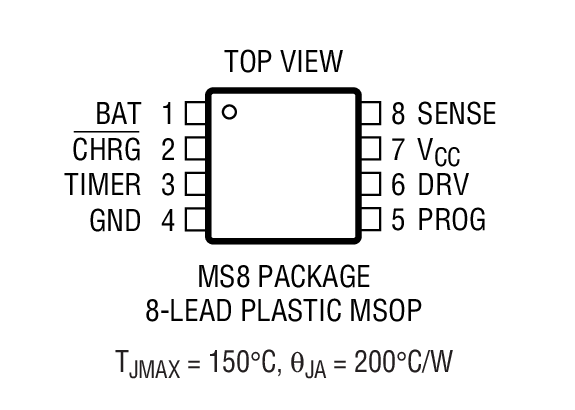

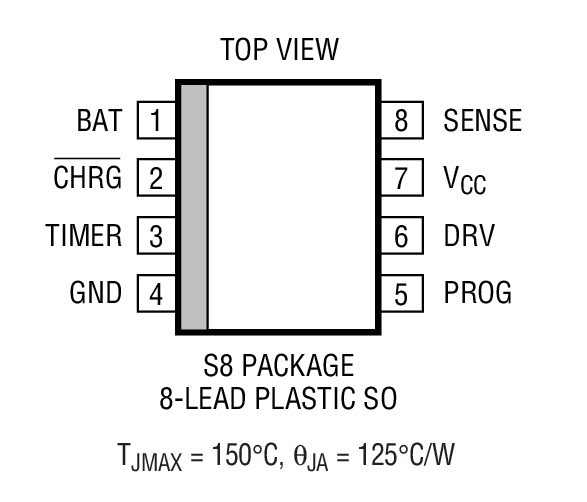

The LTC1731 is available in the 8-pin MSOP and SO packages.
| Float Voltage | |
| LTC1731-4.1 | 4.1V |
| LTC1731-4.2 | 4.2V |
|
