LT3960

RECOMMENDED FOR NEW DESIGNS

I2C to CAN-Physical Transceiver

Analog Devices LT3960 Product Info

10 February 2026 5

Features

Protected from Overvoltage Line Faults to ±40V
Up to 400kbps I²C Communications
4V to 60V Power Supply Range with Internal 3.3V Regulator
3.3V or 5V Bus Voltage
Extended Common Mode Range (±36V)
Current Limited Drivers with Thermal Shutdown

Power-Up/Down Glitch Free Driver Outputs
Low Current Shutdown Mode
Transmit Data Dominant Timeout Function
E- and J-Grades Available

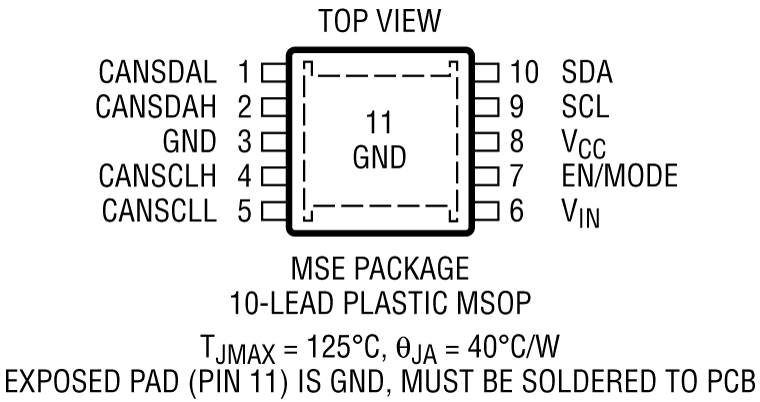

Available in a 10-Lead MSOP Package
AEC-Q100 Qualified for Automotive Applications

Part details & applications

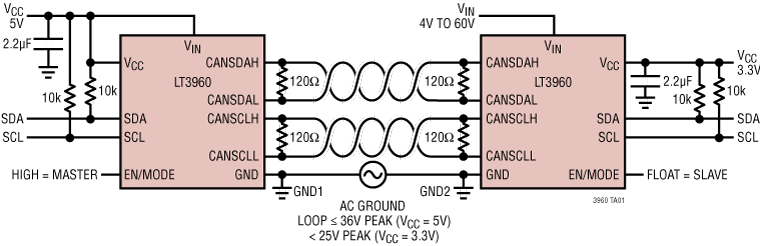

The LT3960 is a robust high speed transceiver that extends a single-master I²C bus through harsh or noisy environments at up to 400kbps using the CAN-physical layer. One LT3960 sits near the I²C master, creating from SCL and SDA equivalent differential buses (I²CAN) on two twisted pairs. At the other end of the twisted pairs, a second LT3960 recreates the I²C bus locally for any slave I²C devices. A built-in 3.3V LDO powers both the I²C and I²CAN buses from a single input supply from 4V to 60V. Alternatively, the LT3960 can be powered directly from a 3.3V or 5V supply.

The LT3960 is available in a 10-lead MSOP package.

APPLICATIONS

Industrial Networking
Automotive Networking
Remote Sensors
