LT3957

PRODUCTION

Boost, Flyback, SEPIC and Inverting Converter with 5A, 40V Switch

Analog Devices LT3957 Product Info

10 February 2026 5

Features

Wide Input Voltage Range: 3V to 40V
Single Feedback Pin for Positive or Negative Output Voltage
Internal 5A/40V Power Switch
Current Mode Control Provides Excellent Transient Response
Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor

Synchronizable to an External Clock
Low Shutdown Current < 1μA
Internal 5.2V Low Dropout Voltage Regulator
Programmable Input Undervoltage Lockout with Hysteresis
Programmable Soft-Start
Thermally Enhanced QFN (5mm × 6mm) Package

Part details & applications

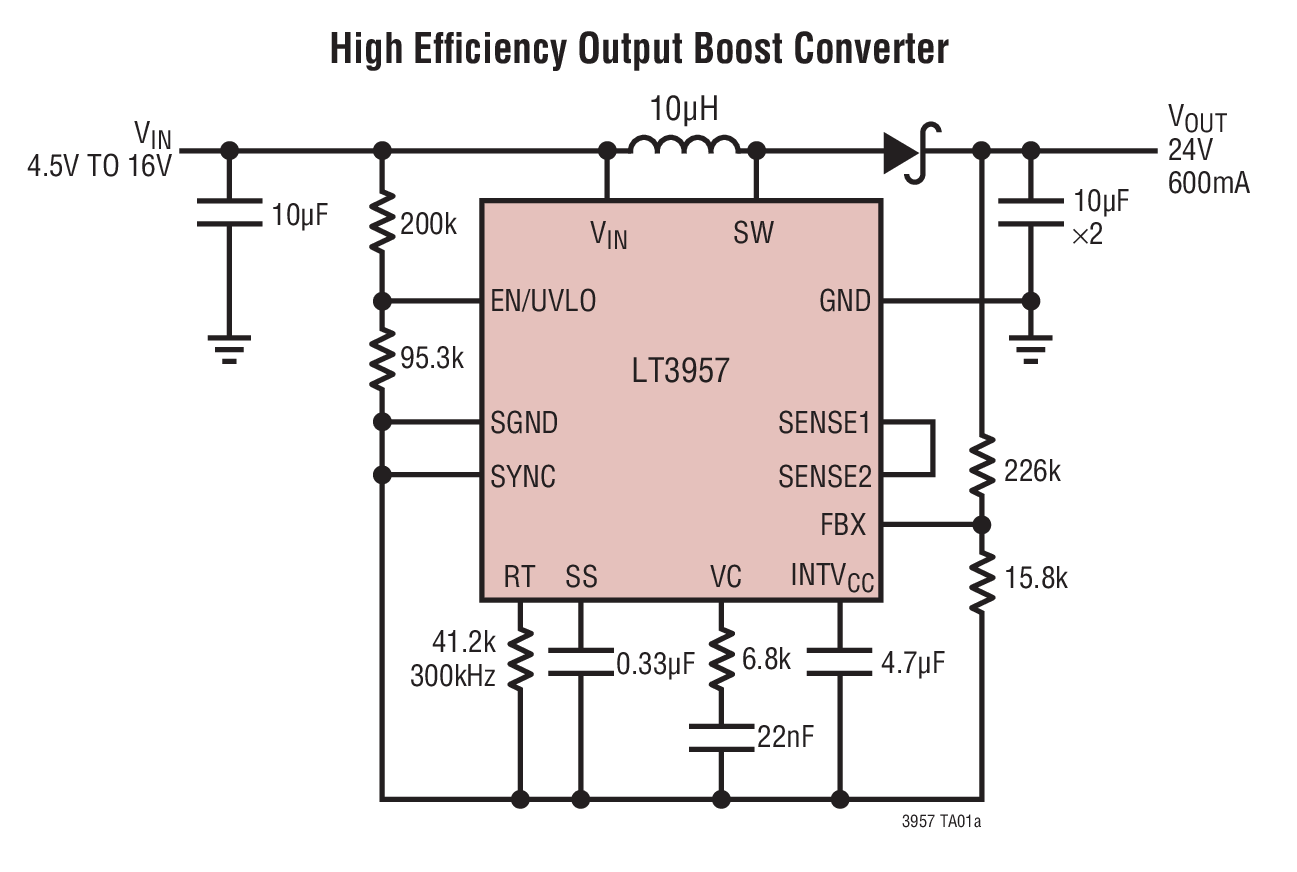

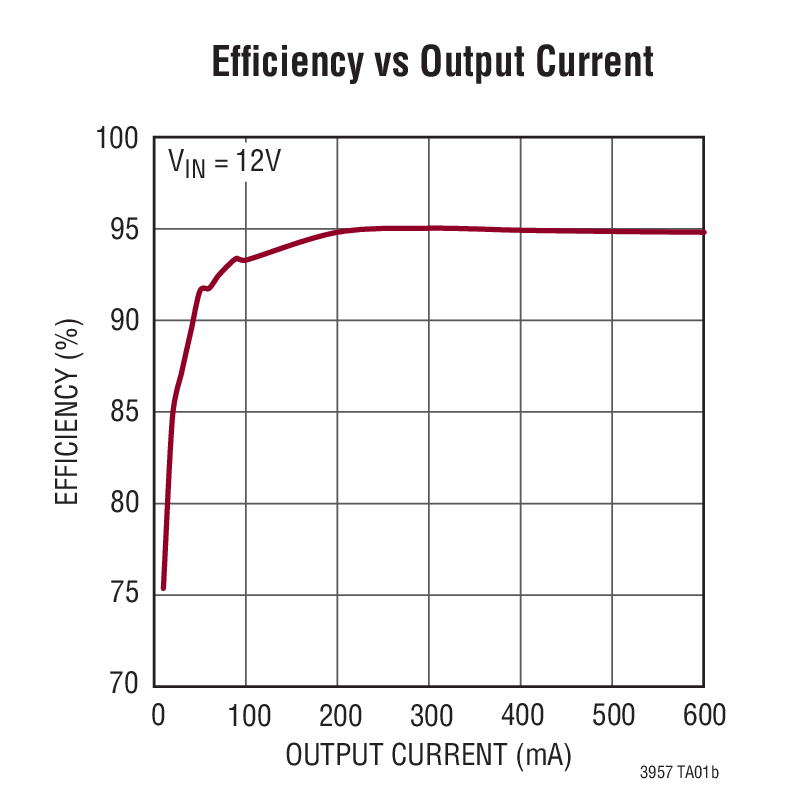

The LT3957 is a wide input range, current mode DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. It features an internal low side N-channel power MOSFET rated for 40V at 5A and driven from an internal regulated 5.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages.

The operating frequency of LT3957 can be set with an external resistor over a 100kHz to 1MHz range, and can be synchronized to an external clock using the SYNC pin. A minimum operating supply voltage of 3V, and a low shutdown quiescent current of less than 1μA, make the LT3957 ideally suited for battery-powered systems.

The LT3957 features soft-start and frequency foldback functions to limit inductor current during start-up.


	Features
LT3957	-
LT3957A	Improved Load Transient Performance

Applications

Automotive
Telecom
Industrial
