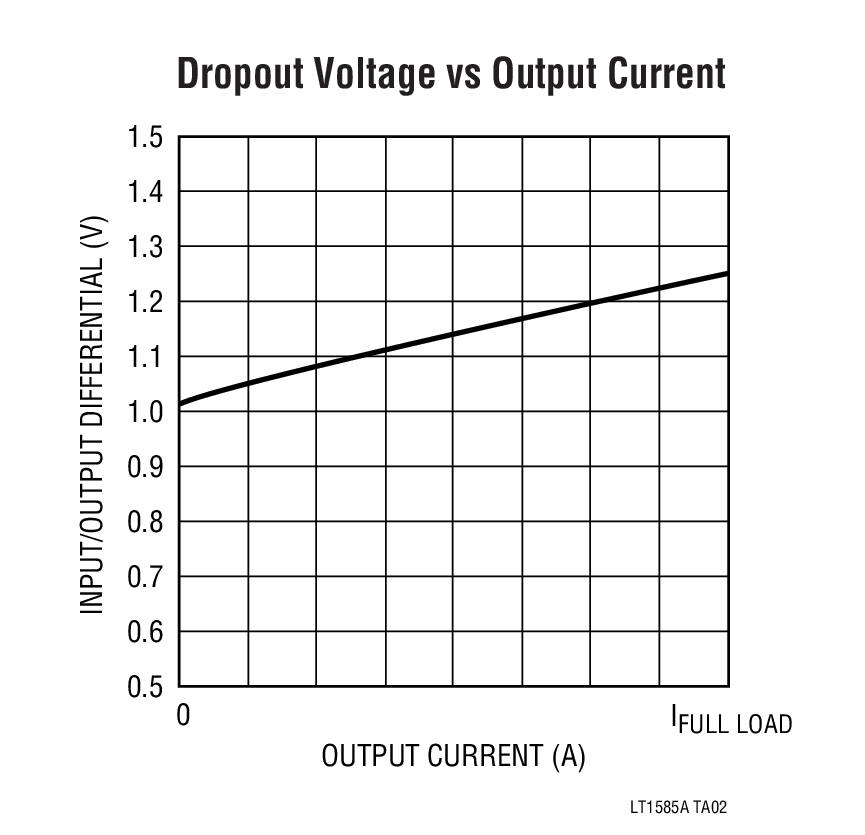

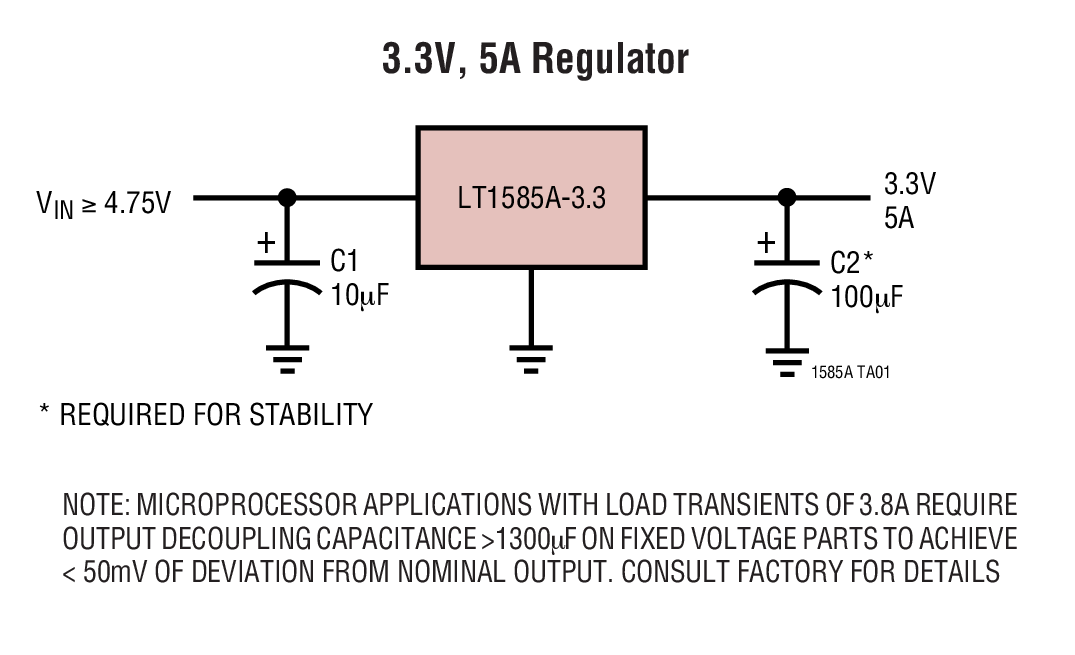

The LT1585A/LT1585A-3.3 are low dropout 3-terminal regulators with 5A output current capability. Design has been optimized for low voltage applications where transient response and minimum input voltage are critical. Similar to the LT1084 family, these regulators feature lower dropout voltage and faster transient response. These improvements make them ideal for low voltage microprocessor applications requiring a regulated 2.5V to 3.6V output with an input supply below 7V.
Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures.

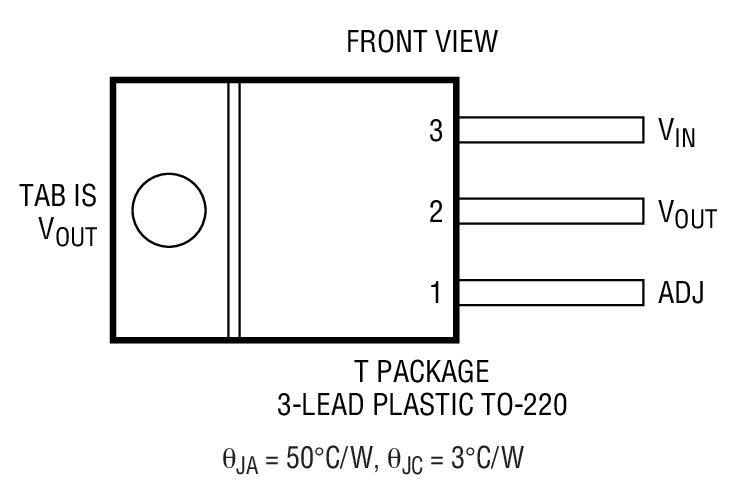

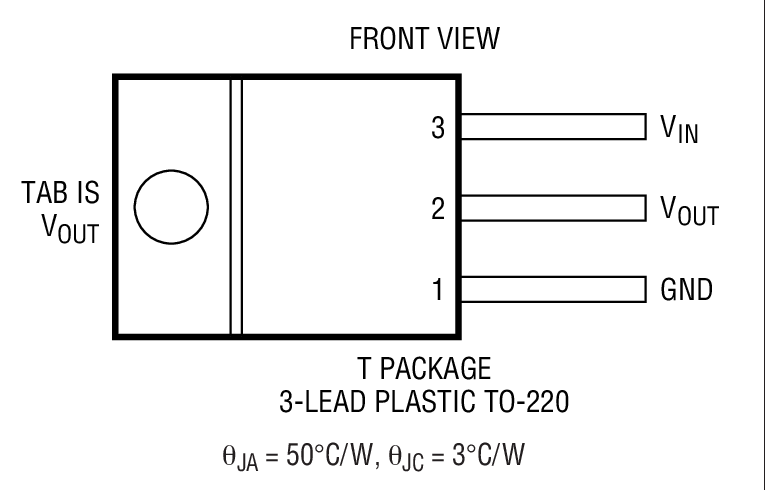

The LT1585A/LT1585A-3.3 are available in the industry standard 3-pin TO-220 power package.
| Output Current | Output Voltage Options | |
| LT1584, -3.3, -3.38, -3.45, -3.6 | 7A | Adj, 3.3V, 3.38V, 3.45V, 3.6V |
| LT1585, -3.3, -3.38, -3.45, -3.6 | 4.6A | Adj, 3.3V, 3.38V, 3.45V,
