Analog Devices HMC909 Product Info

• Broadband Single-Ended RF Input
  ±1 dB Detection Accuracy to 5.8 GHz
• Input Dynamic Range: -51 to -11 dBm
• Digitally Programmable
  Integration Bandwidth
• RF Signal Wave Shape & Crest Factor Independent
• +5V Operation from -40°C to +85°C
• Excellent Temperature Stability
• Power-Down Mode
• 24 Lead 4x4mm SMT Package: 16mm²

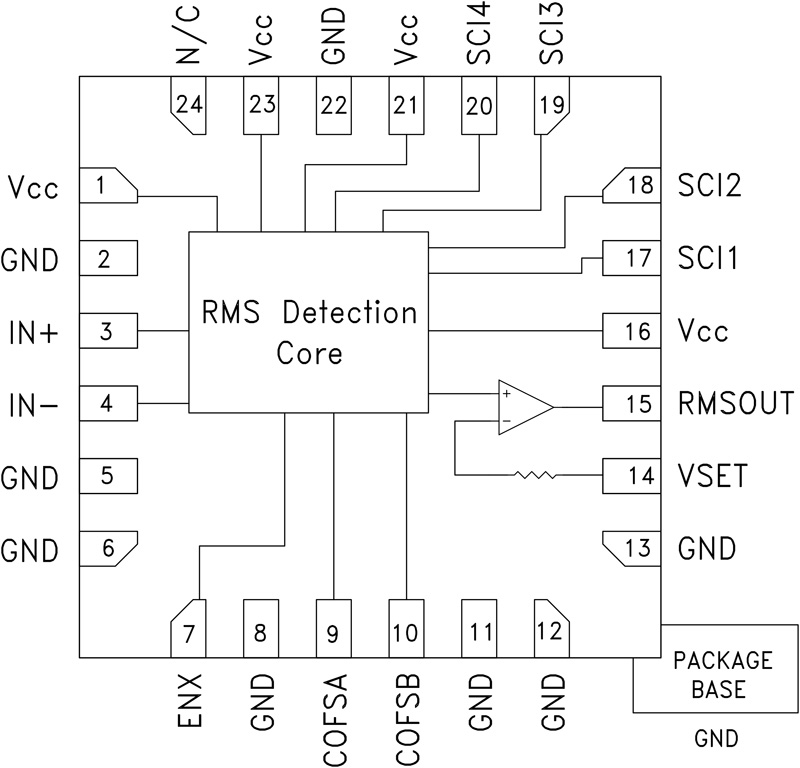

The HMC909LP4E Power Detector is designed for RF power measurement, and control applications for frequencies up to 5.8 GHz. The detector provides an accurate RMS representation of any broadband, single-ended RF/IF input signal. The output is a temperature compensated monotonic, representation of real signal power, measured with an input sensing range of 40 dB.

The HMC909LP4E is ideally suited to those wide bandwidth, wide dynamic range applications, requiring repeatable measurement of real signal power, especially where RF/IF wave shape and/or crest factor change with time.

The integration bandwidth of the HMC909LP4E is digitally programmable with the use of input pins SC I1-4 with a range of more than 4 decade. This allows the user to dynamically set the operation bandwidth providing the capability of handling different types of modulations on the same platform.

HMC909LP4E features an internal op-amp at output stage, which provides for slope / intercept adjustments and enables controller application.

Applications

• Log –> Root-Mean-Square (RMS) Conversion
• Received Signal Strength Indication (RSSI)
• Transmitter Signal Strength Indication (TSSI)
• RF Power Amplifier Efficiency Control
• Receiver Automatic Gain Control
• Transmitter Power Control
