Analog Devices ICM7556 Product Info

• Improved 2^nd Source (See 4th Page for Maxim Advantage)
• Wide Supply Voltage Range: 2V to 18V
• No Crowbarring of Supply During Output Transition
• Adjustable Duty Cycle
• Low THRESHOLD, Active-Low TRIGGER, and Active-Low RESET Currents
• TTL Compatible
• Monolithic, Low-Power CMOS Design

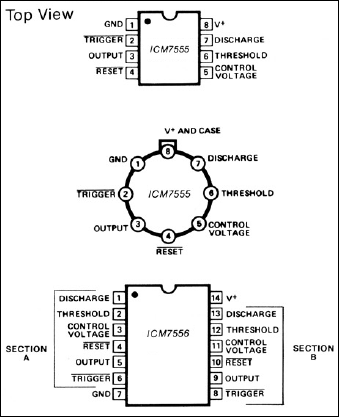

The Maxim ICM7555 and ICM7556 are respectively single and dual general-purpose RC timers capable of generating accurate time delays or frequencies. The primary feature is an extremely low supply current, making this device ideal for battery-powered systems. Additional features include low THRESHOLD, active-low TRIGGER, and active-low RESET currents, a wide operating supply voltage range, and improved performance at high frequencies.

These CMOS low-power devices offer significant performance advantages over the standard 555 and 556 bipolar timers. Low-power consumption, combined with the virtually nonexistent current spike during output transitions, make these timers the optimal solution in many applications.

Applications

• Missing Pulse Detector
• Precision Timing
• Pulse Generator
• Pulse Position Modulation
• Pulse-Width Modulation
• Sequential Timing
• Time Delay Generation
