Analog Devices HMC8100 Product Info

• High linearity: Support modulations to 1024 QAM
• Rx IF range: 80 MHz - 200 MHz
• Rx RF range: 800 MHz - 4000 MHz
• Rx power control range: 80 dB
• SPI programmable bandpass filters
• SPI controlled interface

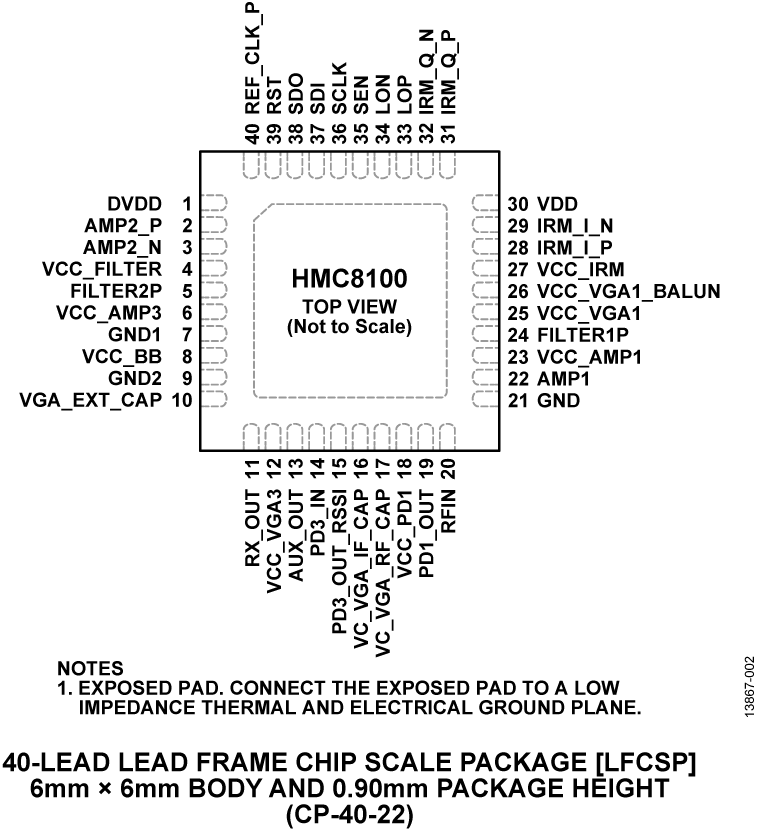

• 40 - lead 6 mm × 6 mm LFCSP package

The HMC8100LP6JE is a highly integrated IF receiver chip that converts radio frequency (RF) input signals ranging from 800 MHz to 4000 MHz down to a single ended intermediate frequency (IF) signal of 140 MHz at its output.

The IF receiver chip is housed in a compact 6 mm x 6 mm LFCSP package and supports complex modulations up to 1024 QAM. The HMC8100LP6JE device includes two VGAs, three power detectors, a programmable AGC block, and selected integrated bandpass filters with 14 MHz, 28 MHz, 56 MHz, and 112 MHz bandwidth. The HMC8100LP6JE also supports baseband IQ interfaces after the mixer so that the chips can be used in the full ODU configuration. The HMC8100LP6JE supports all of the standard microwave frequency bands from 6 to 42 GHz.

Applications

• Point to point communications
• Satellite communications
• Wireless microwave backhaul systems

Please also view complimentary product HMC8200, Intermediate Frequency Transmitter 800 MHz - 4000 MHz.
