Analog Devices HMC7911 Product Info

• Conversion gain: 18 dB typical
• Sideband rejection: 30 dBc typical
• Input power for 1 dB compression (P1dB): 2 dBm typical
• Output third-order intercept (OIP3): 33 dBm typical
• 2× local oscillator (LO) leakage at RFOUT: 10 dBm typical
• 2× LO leakage at the IF input: −25 dBm typical
• RF return loss: 13 dB typical
• LO return loss: 10 dB typical

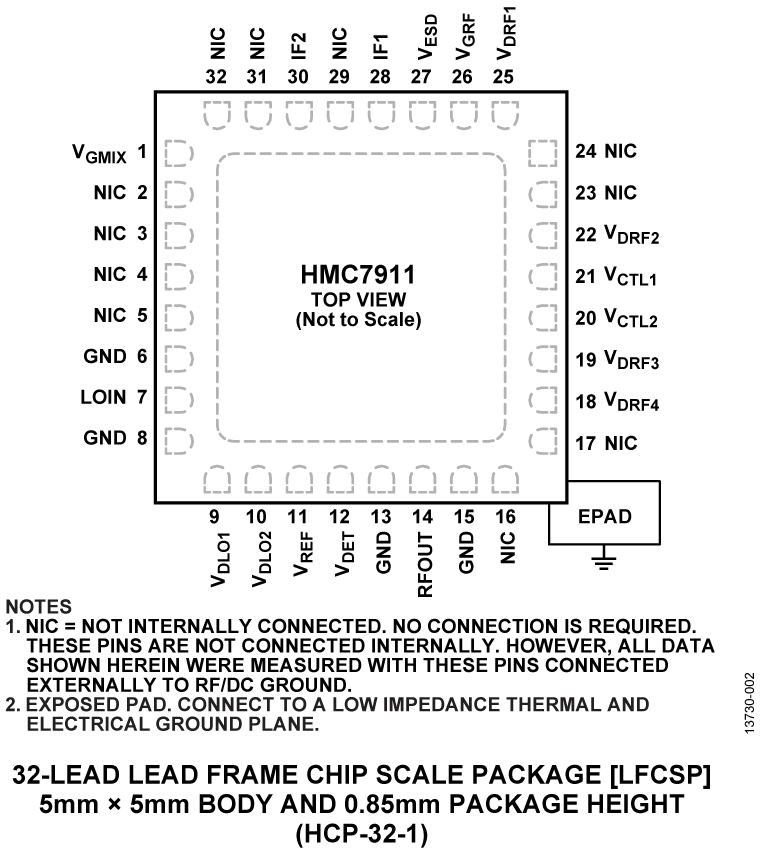

• 32-lead, 5 mm × 5 mm LFCSP package

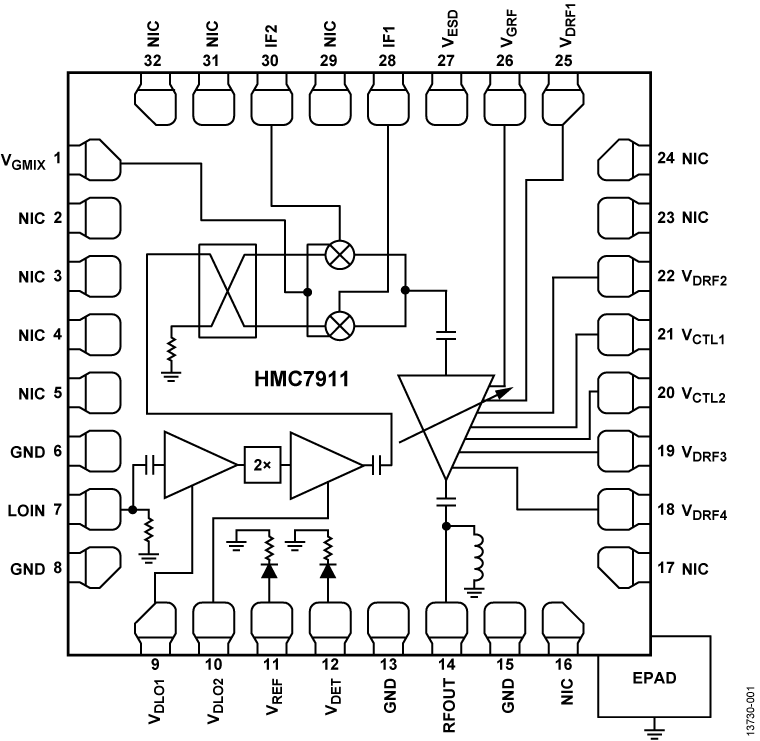

The HMC7911 is a compact gallium arsenide (GaAs), pseudomorphic (pHEMT), monolithic microwave integrated circuit (MMIC) upconverter in a RoHS compliant, low stress, injection molded plastic LFCSP package that operates from 17 GHz to 20 GHz. This device provides a small signal conversion gain of 18 dB with 30 dBc of sideband rejection. The HMC7911 uses a variable gain amplifier preceded by an in-phase/quadrature (I/Q) mixer that is driven by an active 2× local oscillator (LO) multiplier. IF1 and IF2 mixer inputs are provided, and an external 90° hybrid is needed to select the required sideband. The I/Q mixer topology reduces the need for filtering of the unwanted sideband. The HMC7911 is a much smaller alternative to hybrid style single sideband (SSB) upconverter assemblies, and it eliminates the need for wire bonding by allowing the use of surface-mount manufacturing techniques.

Applications

• Point to point and point to multipoint radios
• Military radars, electronic warfare (EW), and electronic intelligence (ELINT)
• Satellite communications
• Sensors
