HMC773ALC3B

PRODUCTION

6 GHz to 26 GHz, GaAs MMIC Fundamental Mixer

Analog Devices HMC773ALC3B Product Info

10 February 2026 4

Features

Conversion loss: 9 dB typical
Local oscillator (LO) to radio frequency (RF) isolation: 37 dB typical
LO to intermediate frequency (IF) isolation: 37 dB typical
RF to IF isolation: 20 dB typical
Input third-order intercept (IP3): 20 dBm typical

Input second-order intercept (IP2): 50 dBm typical
Input power for 1 dB compression (P1dB): 10 dBm typical
IF bandwidth: dc to 8 GHz
Passive: no dc bias required

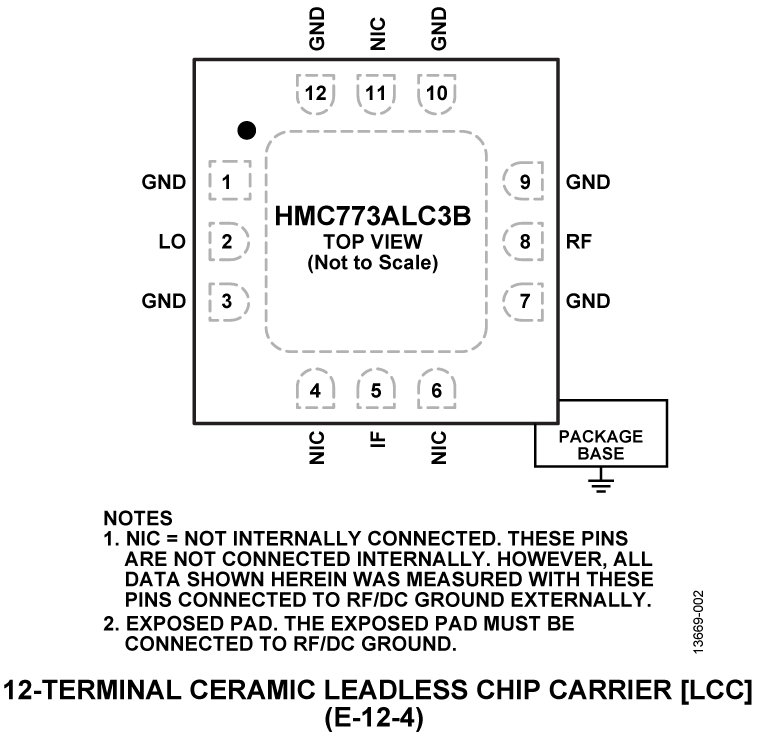

3 mm × 3 mm, 12-terminal ceramic LCC package

Part details & applications

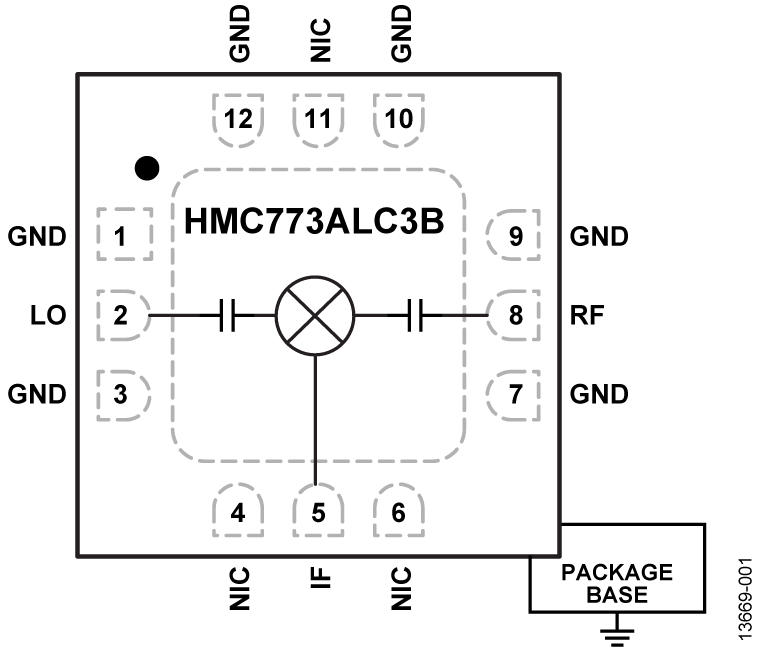

The HMC773ALC3B is a general-purpose, double balanced mixer in a leadless, RoHS compliant LCC package that can be used as an upconverter or downconverter from 6 GHz to 26 GHz. This mixer requires no external components or matching circuitry.

The HMC773ALC3B provides excellent LO to RF and LO to IF suppression due to optimized balun structures. The mixer operates well with LO drive levels of 13 dBm or above. The HMC773ALC3B eliminates the need for wire bonding, allowing use of surface-mount manufacturing techniques.

Applications

Point to point radios
Point to multipoint radios and very small aperture terminals (VSATs)
Test equipment and sensors
Military end use
