HMC773A-DIE

PRODUCTION

GaAs MMIC Fundamental Mixer, 6 - 26 GHz

Analog Devices HMC773A-DIE Product Info

10 February 2026 5

Features

Downconverter
- Conversion loss: 10 dB (typical)
- LO to RF isolation: 39 dB (typical)
- LO to IF isolation: 33 dB (typical)
- RF to IF isolation: 18 dB (typical)
- Input IP3: 21 dBm (typical)
- Input IP2: 46 dBm (typical)
- P1dB: 12 dBm (typical)

IF bandwidth: dc to 10 GHz
Passive: no dc bias required

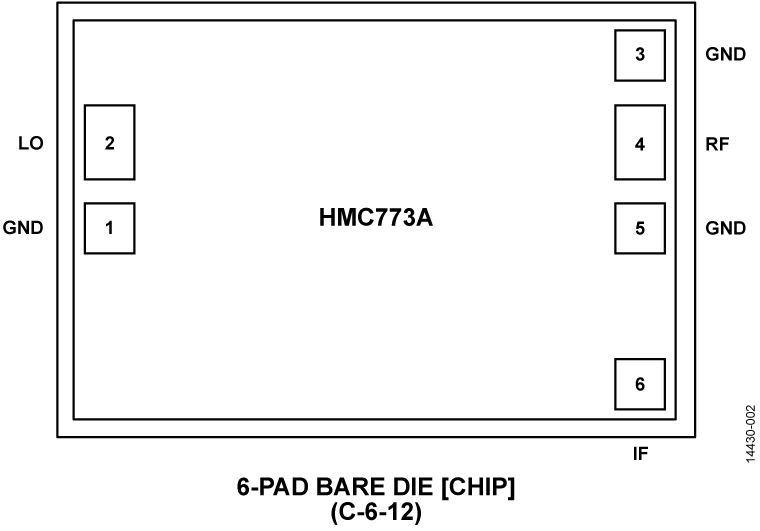

Small size: 1.290 mm × 0.880 mm × 0.102 mm

Part details & applications

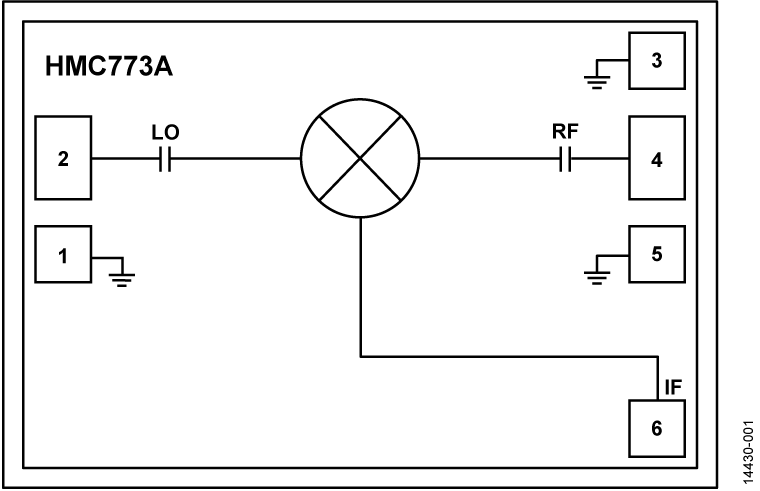

The HMC773A is a general-purpose, double balanced mixer chip that can be used as an upconverter or downconverter from 6 GHz to 26 GHz. This mixer requires no external components or matching circuitry.

The HMC773A provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) suppression due to optimized balun structures. The mixer operates well with LO drive levels of 13 dBm or greater. The HMC773A is also available in surface-mount technology format as the HMC773ALC3B.

APPLICATIONS

Point to point radios
Point to multipoint radios and very small aperture terminals (VSATs)
Test equipment and sensors
Military end use
