AD9139

RECOMMENDED FOR NEW DESIGNS

16-Bit, 1600 MSPS, T x DAC+ Digital-to-Analog Converter

Analog Devices AD9139 Product Info

10 February 2026 5

Features

Selectable 1×, 2× interpolation filter
- Support input signal bandwidth up to 575 MHz
Very small inherent latency variation: <2 DAC clock cycles
Proprietary low spurious and distortion design
- 6-carrier GSM ACLR = 79 dBc at 200 MHz IF
- SFDR >85 dBc (bandwidth = 300 MHz) at zero IF
Flexible 16-bit LVDS interface
- Supports word and byte load

Multiple chip synchronization
- Fixed latency and data generator latency compensation
FIFO eases system timing and includes error detection
High performance, low noise PLL clock multiplier
Digital inverse sinc filter
Low power: 700 mW at 1230 MSPS
72-lead LFCSP

Part details & applications

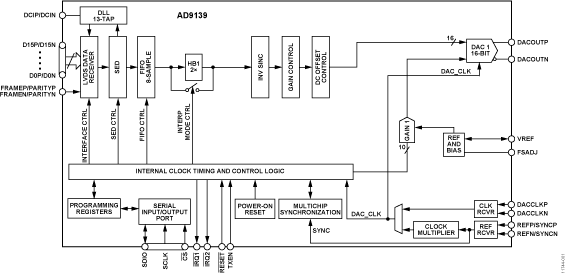

The AD9139 is a 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a maximum update rate of 1600 MSPS, permitting multicarrier generation up to the Nyquist frequency. The AD9139 TxDAC+^® includes features optimized for wide band communications applications, including 1× and 2× interpolation, a DLL based high speed interface, sample error detection, and parity detection. A 3-wire serial port interface provides for the programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 9 mA up to 33 mA. The AD9139 is available in a 72-lead LFCSP.

Product Highlights

575 MHz achievable input signal bandwidth.
Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.
Very small inherent latency variation simplifies both software and hardware design in the system. It allows easy multichip synchronization for most applications.
Low power architecture improves power efficiency.

Applications

Wireless communications: 3G/4G and MC-GSM base stations, wideband repeaters, software defined radios
Wideband communications: point-to-point, LMDS/MMDS
Transmit diversity/MIMO
Instrumentation
Automated test equipment
