Analog Devices Inc.
0
RECOMMENDED FOR NEW DESIGNS

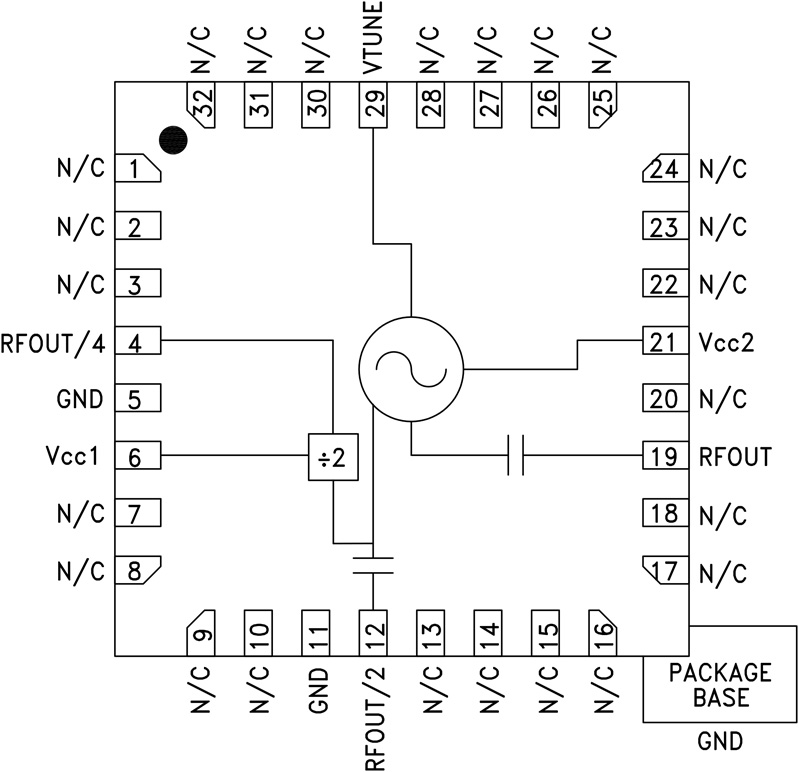

The HMC513LP5(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs. The HMC513LP5(E) integrates resonators, negative resistance devices, varactor diodes and feature half frequency and divide-by- 4 outputs. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +7 dBm typical from a +3V supply voltage. The prescaler function can be disabled to conserve current if not required. The voltage controlled oscillator is packaged in a leadless QFN 5×5 mm surface mount package, and requires no external matching components.
APPLICATIONS
