HMC448-DIE

PRODUCTION

x2 Active Multiplier Chip, 19 - 25 GHz Fout

Analog Devices HMC448-DIE Product Info

10 February 2026 6

Features

Output Power: +11 dBm
Wide Input Power Range: -4 to +6 dBm
Fo, 3Fo Isolation: >20 dBc @ Fout= 20 GHz

100 KHz SSB Phase Noise: -135 dBc/Hz
Single Supply: 5V @ 48 mA
Die Size: 1.16 × 1.20 × 0.1 mm

Part details & applications

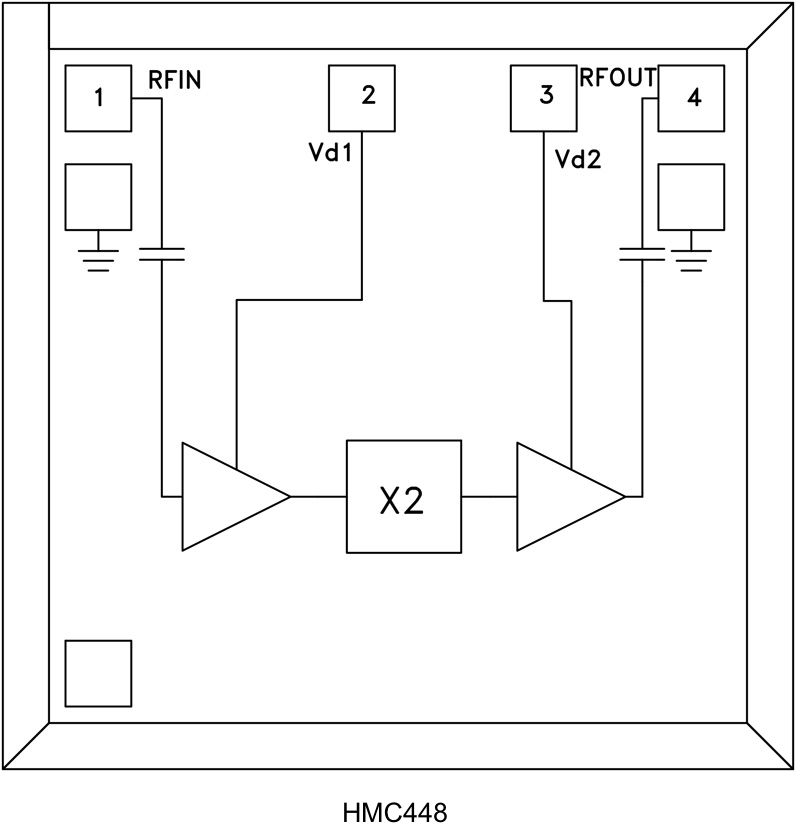

The HMC448 die is a x2 active broadband frequency multiplier chip utilizing GaAs PHEMT technology. When driven by a 0 dBm signal, the multiplier provides +11 dBm typical output power from 19 to 25 GHz. The Fo and 3Fo isolations are >22 dBc up to 22 GHz. This multi-rate frequency multiplier can be used in the generation of a half rate clock for 40 Gbps systems or as part of a multiplier chain to generate a full rate 40 Gbps clock.

The HMC448 is also ideal for use in LO multiplier chains for Pt to Pt & VSAT Radios yielding reduced parts count vs. traditional approaches. The low additive SSB Phase Noise of -135 dBc/Hz at 100 kHz offset helps maintain good system noise performance. All data is with the chip in a 50 ohm test fixture connected via 0.076 × 0.0127mm (3mil × 0.5mil) ribbon bonds of minimal length 0.31mm (<12mils).

APPLICATIONS

Clock Generation Applications:
SONET OC-192 & SDH STM-64
Point-to-Point & VSAT Radios
Test Instrumentation
Military & Space
