HMC1160

RECOMMENDED FOR NEW DESIGNS

MMIC VCO with Half Frequency Output, 8.45 GHz to 9.30 GHz

Analog Devices HMC1160 Product Info

10 February 2026 6

Features

Dual output: f_O = 8.45 GHz to 9.3 GHz
f_O/2 = 4.225 GHz to 4.65 GHz
P_OUT: 12 dBm

Phase noise: −116 dBc/Hz at 100 kHz
No external resonator needed

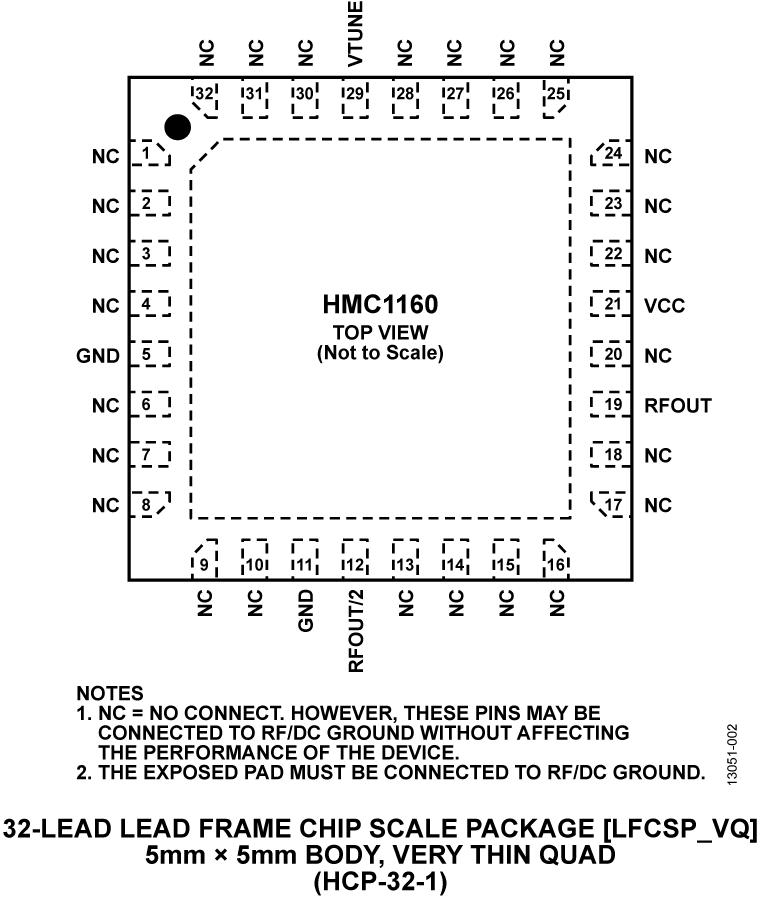

RoHS compliant, 5 mm × 5 mm SMT package: 25 mm²

Part details & applications

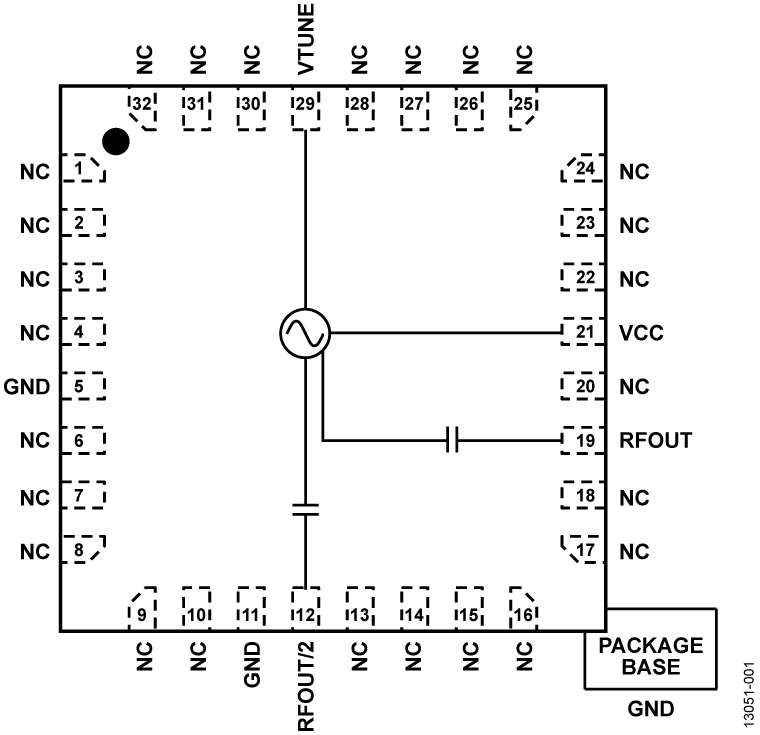

The HMC1160 is a MMIC voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.

Because of the monolithic construction of the oscillator, output power and phase noise performance are excellent over temperature.

Power output is 12 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS compliant SMT package and requires no external matching components.

APPLICATIONS

Point to point and multipoint radio
Test equipment and industrial controls
VSAT
