Analog Devices DS8113 Product Info

• Analog Interface and Level Shifting for IC Card Communication
• 8kV (min) ESD (IEC) Protection on Card Interface
• Ultra-Low Stop-Mode Current, Less Than 10nA Typical
• Internal IC Card Supply-Voltage Generation:
  • 5.0V ±5%, 80mA (max)
  • 3.0V ±8%, 65mA (max)
  • 1.8V ±10%, 30mA (max)
• Automatic Card Activation and Deactivation Controlled by Dedicated Internal Sequencer
• I/O Lines from Host Directly Level Shifted for Smart Card Communication
• Flexible Card Clock Generation, Supporting External Crystal Frequency Divided by 1, 2, 4, or 8
• High-Current, Short-Circuit and High-Temperature Protection
• Low Active-Mode Current

The DS8113 smart card interface is a low-cost, analog front-end for a smart card reader, designed for all ISO 7816, EMV™, and GSM11-11 applications. The DS8113 supports 5V, 3V, and 1.8V smart cards. The DS8113 provides options for low active- and stop-mode power consumption, with as little as 10nA stop-mode current.

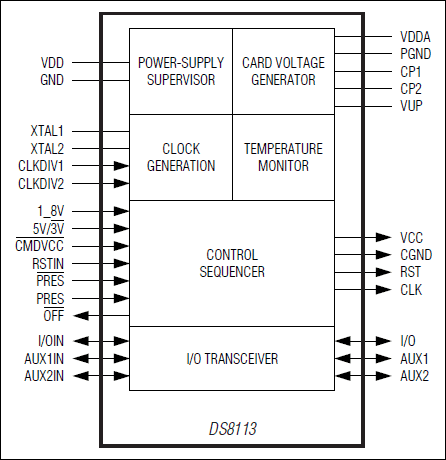

The DS8113 is designed to interface between a system microcontroller and the smart card interface, providing all power supply, ESD protection, and level shifting required for IC card applications.

An EMV Level 1 library (written for the MAXQ2000 microcontroller) and hardware reference design is available. Contact Maxim technical support at www.maximintegrated.com/support regarding requirements for other microcontroller platforms. An evaluation kit, DS8113-KIT, is available to aid in prototyping and evaluation.
