DS3930
  • DS3930

DS3930

PRODUCTION

Hex Nonvolatile Potentiometer with I/O and Memory

Analog Devices DS3930 Product Info

10 February 2026 5

Features

  • Six 256-Position NV Potentiometers
  • Four General-Purpose NV I/O Pins
  • 64 Bytes of User EEPROM Memory
  • 0 to 5.5V on Any Potentiometer Terminal, Independent of VCC
  • All Six Potentiometers Share a Common Low Side
  • Potentiometers Separated into Two Groups of Three Potentiometers, Each Sharing a Common High Side
  • 2-Wire Serial Interface
  • Wide Supply Range (2.7V to 5.5V)
  • Up to Eight DS3930s Can Share the Same 2-Wire Bus

Part details & applications

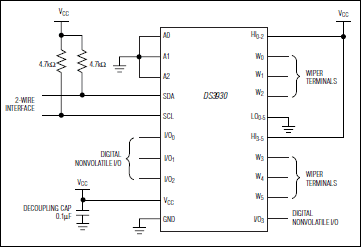

The DS3930 contains six 256-position nonvolatile (NV) potentiometers, 64 bytes of NV user EEPROM memory, and four programmable NV I/O pins. The six potentiometers all share a common low side. The potentiometers are separated into two groups of three 50kΩ potentiometers in parallel. Each group of three potentiometers shares a common high side and forms an equivalent resistance of 16.6kΩ (three 50kΩ potentiometers in parallel).

Applications

  • Fiber Optic Transceiver Modules
  • Mobile Phones and PDAs
  • Portable Electronics
  • Power Supply Calibration
  • Radio Tuners
  • RF Transceivers
  • Small, Low-Cost Replacement for Mechanical Potentiometers Features
  • Voltage References
